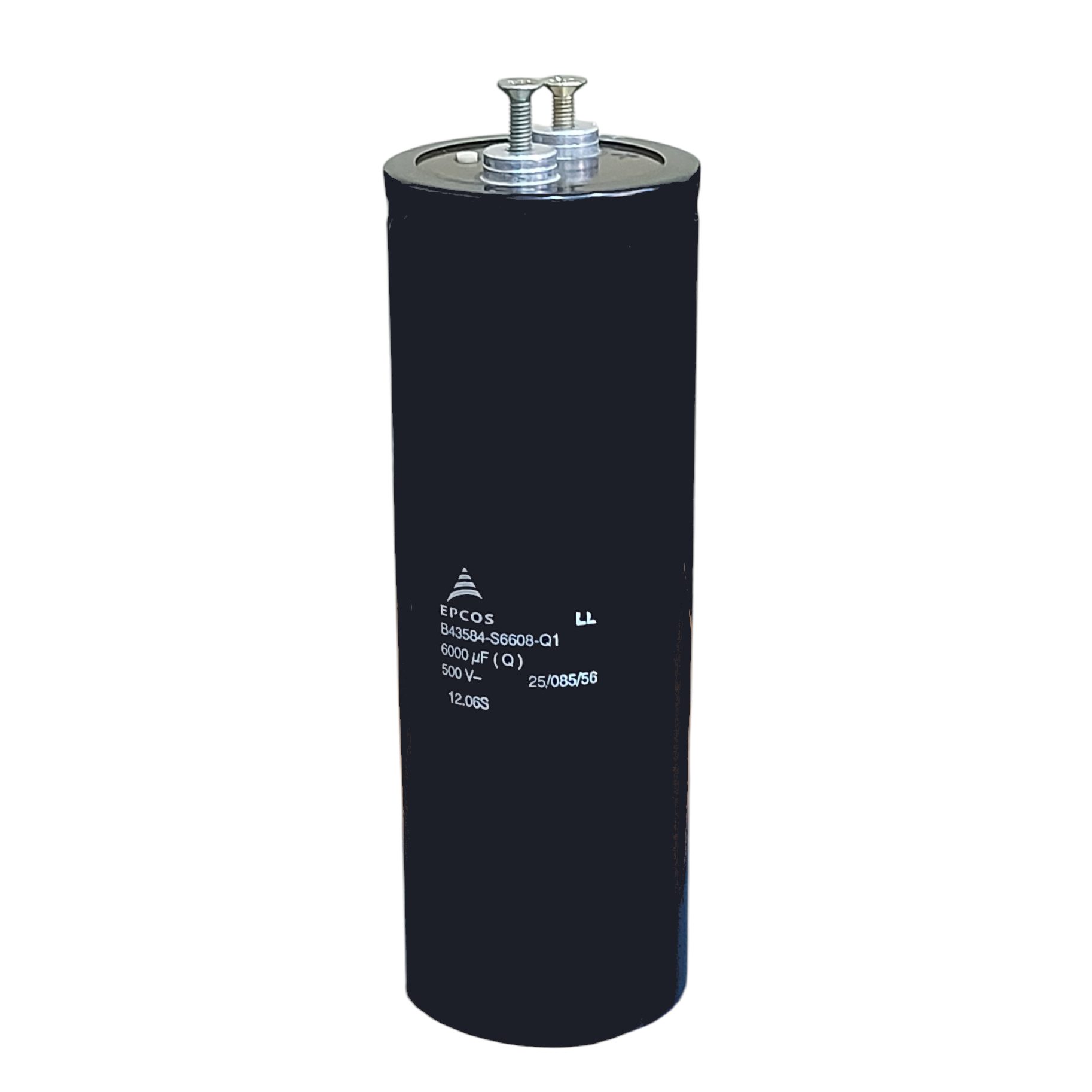

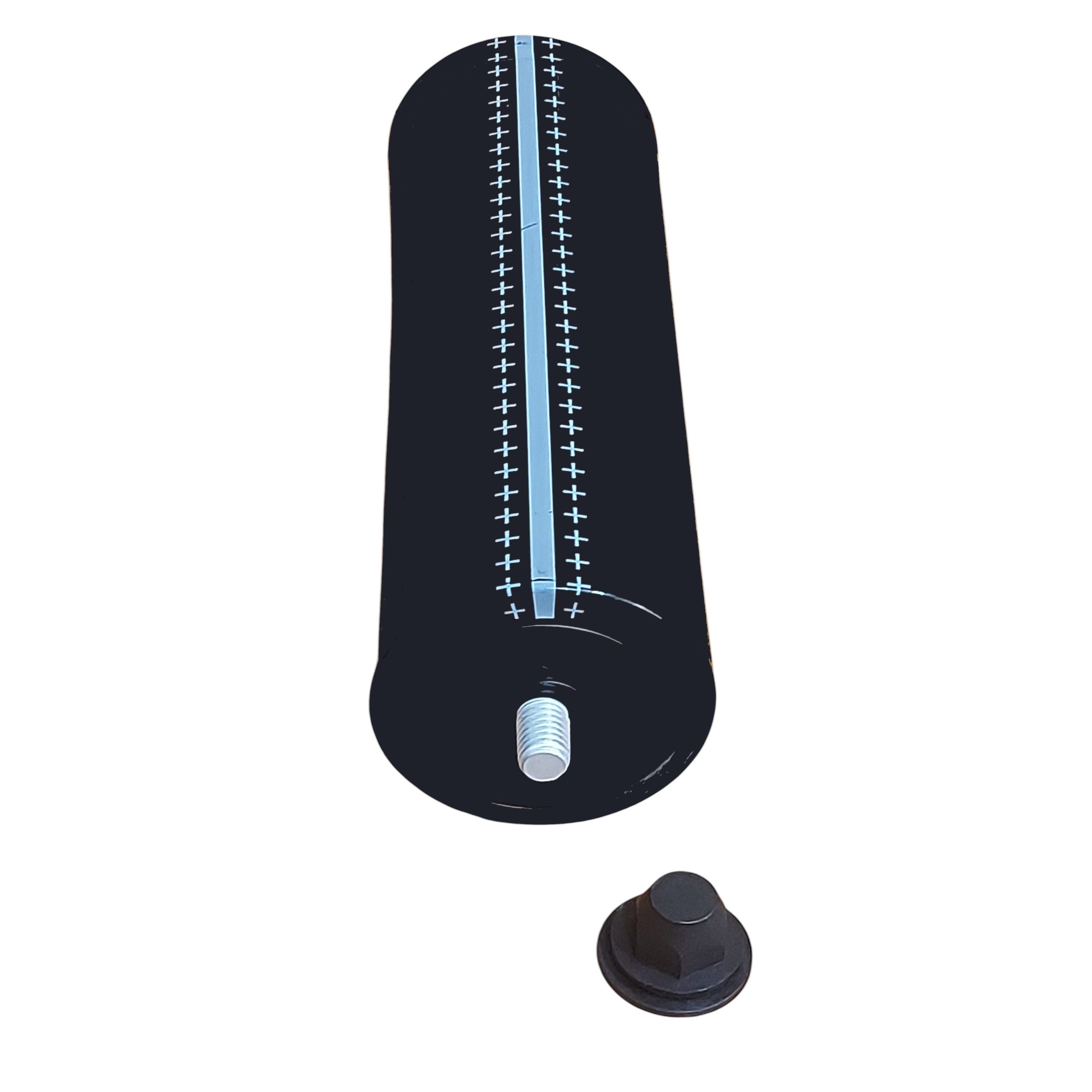

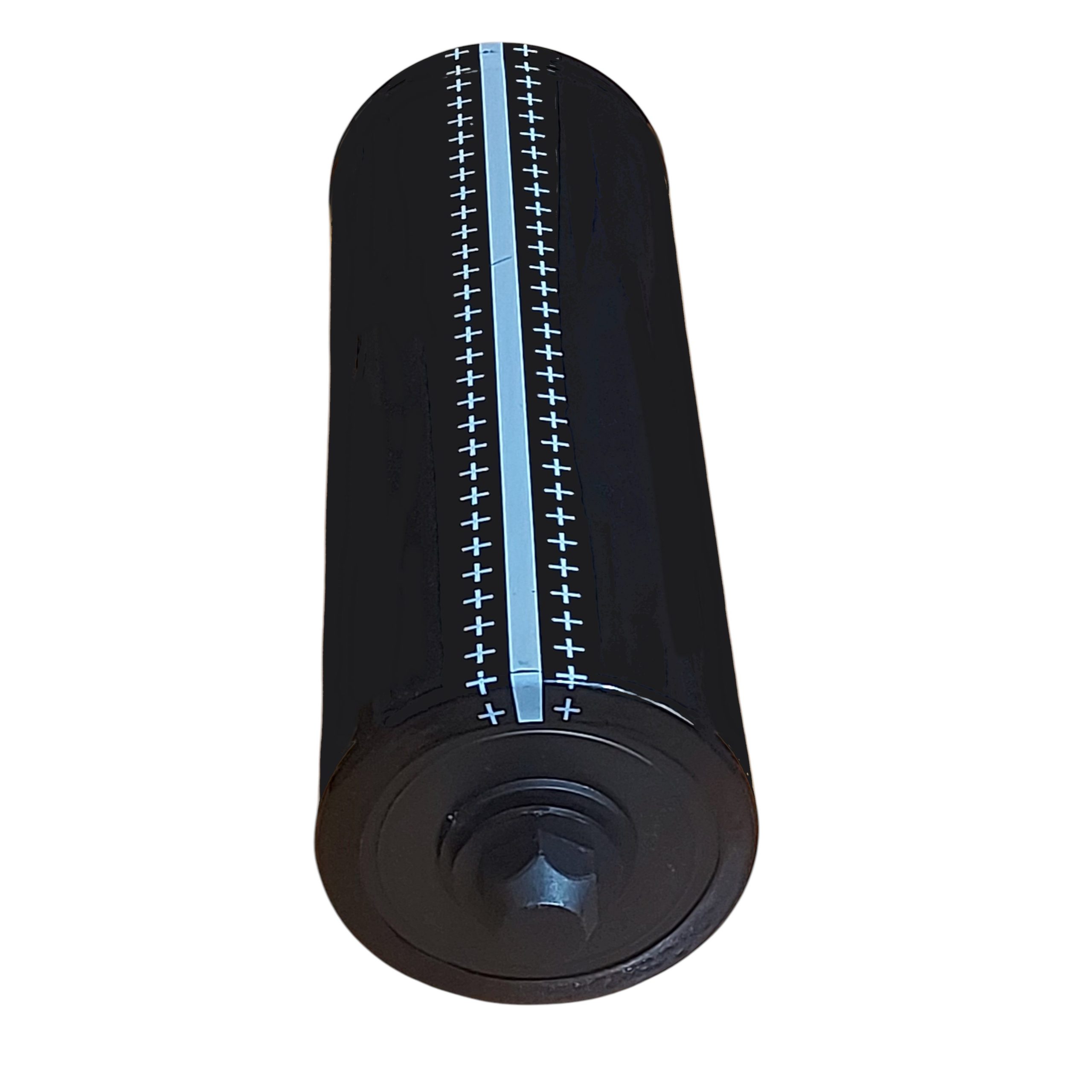

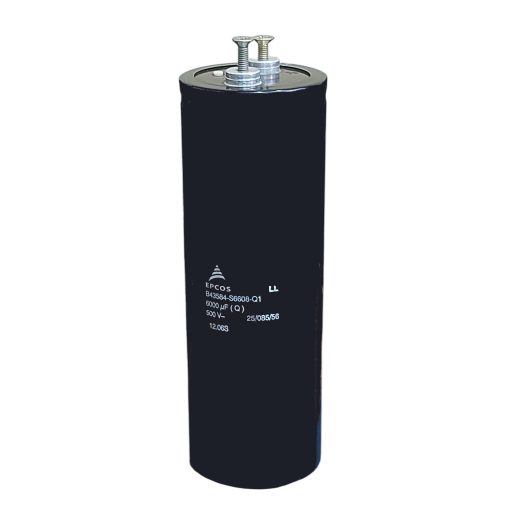

Epcos Aluminium Electrolytic Capacitor 6000uF 500V Screw Terminal (Used Like New)
The EPCOS B43584 series 6000µF 500V aluminum electrolytic capacitor is a high-performance, long-life grade capacitor designed for demanding industrial applications. Manufactured by EPCOS (a TDK Group Company), this capacitor features screw terminal connections for secure and reliable electrical contact in high-power applications. With its robust all-welded construction and self-extinguishing electrolyte, this capacitor delivers exceptional performance in frequency converters, power supplies, and renewable energy systems.
Features
- High Ripple Current Capability
- Long Useful Life
- All-Welded Construction
- Screw Terminal Connection
- Self-Extinguishing Electrolyte
- Wide Temperature Range
Specifications
| Parameter | Value |
|---|---|
| Capacitance | 6000 µF |
| Rated Voltage (VR) | 500 V DC |
| Capacitance Tolerance | ±20% |
| Operating Temperature | -40°C to +85°C |
| Temperature Rating | 85°C |
| Terminal Type | Screw terminals |
| Case Material | Aluminum with insulating sleeve |
| Dimensions | 225 mm x 77 mm |
| Weight | 1344 g |
Applications
- Power Electronics
- Renewable Energy Systems
- Power Supply Systems
- Industrial Equipment
