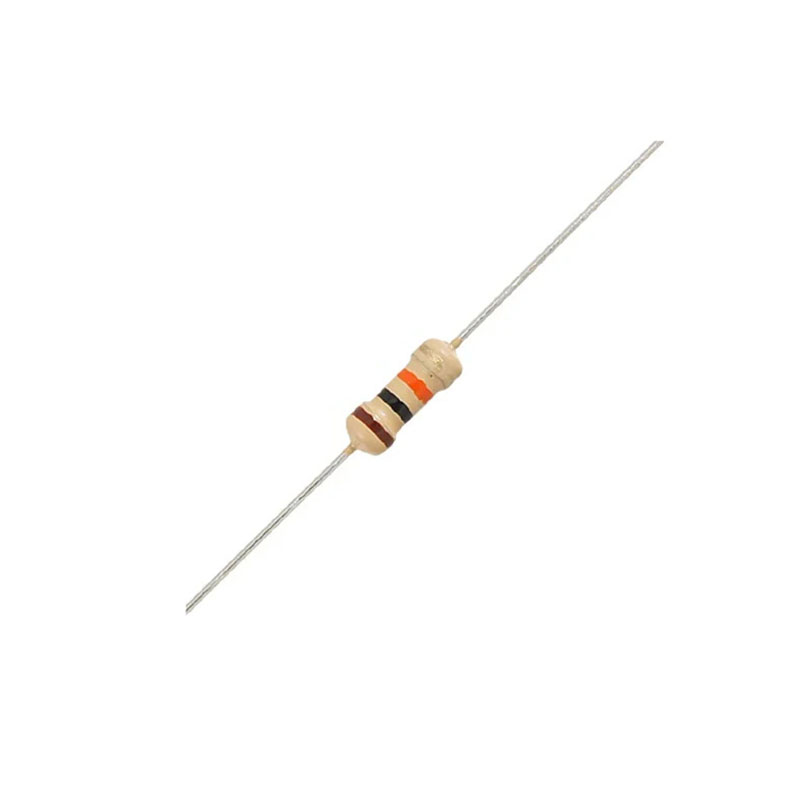

Carbon Resistor 10kΩ 0.125W Through Hole
The 10 kΩ carbon-film through-hole resistor (CF series, 0.125 W rating) is a compact axial-lead passive component engineered for general-purpose circuit use. It combines a carbon-film resistive element with a flame-retardant protective coating and axial lead termination to yield a simple, robust resistor construction that is easy to handle, solder and mount on printed circuit boards or in hand-wired assemblies. The small 1/8-watt power rating corresponds to modest continuous dissipation suitable for low-power signal and biasing networks.
Electrically the device provides a stable nominal resistance (10 kΩ) available in common tolerances and manufactured to meet standard test methods (JIS/IEC). The element and coating are selected to balance cost, stability and compatibility with automated insertion and soldering processes. The axial form factor and standard lead spacing make the part straightforward to integrate into compact boards and indicator panels where space and thermal load are limited.
Mechanically and environmentally the resistor is rated for wide ambient extremes and standard soldering profiles; the CF family is RoHS/REACH compliant and built for reliable long-term operation. Where higher surge or pulse capability is required the datasheet provides pulse-limiting formulas and derating curves; for routine low-power biasing, pull-downs and general-purpose circuits the 10 kΩ, 0.125 W CF part is a cost-effective, dependable choice.
Features:
- General-purpose resistor ideal for commercial / industrial applications.
- Flame-retardant coating as standard (flameproof versions available).
- Compatible with automatic sequencing / insertion.
- Mini (CFM) version available when size constraints apply.
- Standard lead wire: copper-plated steel with 100% tin overplate (CF / CFM); tin-plated copper option (CFQ / CFQM).
- RoHS and REACH compliant, lead-free and halogen-free.
Specifications:
| Parameter | Value (datasheet) |
|---|---|
| Series / Type: | CF (carbon film axial) — 1/8 W class (size code 18). |
| Nominal resistance: | 10 kΩ (user-specified nominal). (ohmic value) |
| Power rating (@ 70 °C): | 0.125 W (1/8 W). |
| Maximum working voltage (Vr): | 250 V (size 18 table entry). |
| Maximum overload voltage: | 500 V (size 18 table entry). |
| Dielectric withstanding voltage: | 350 V (size 18 table entry). |
| Available tolerances: | 2% (G) and 5% (J) are standard options in the series ordering codes. |
| Temperature coefficient (TCR): | See series table: values depend on ohmic band for the CF family a 10 kΩ value falls at the boundary of the 10 kΩ–99 kΩ band where the datasheet lists approx. 0 to −500 ppm/°C for certain size/tolerance combinations check the table in the PDF for exact mapping. |
| Operating / Storage temperature: | −55 °C to +155 °C. |
| Typical body dimensions (axial): | ~3.3 mm body length × ~1.7 mm body diameter, lead length ~28 mm (axial dimensions for the small CF sizes — see mechanical table). |
| Lead finish / termination: | Copper-plated steel, 100% tin overplate (CF / CFM) — CFQ/CFQM = tin plated on copper wire. |
| Soldering / mounting: | Flow-solder preheat ≤110 °C, peak 260 °C (≤10 s) ; iron soldering 380 °C, 5 s per terminal (recommended conditions). |
| Reliability / test standards: | Meets JIS C5201-1 / IEC60115 test methods for overload, soldering heat, temperature cycling, endurance and damp heat (see datasheet test table). |
Applications:
- Pull-up and Pull-down Resistors for Microcontrollers.
- Current Limiting for LEDs.
- Voltage Division in Sensor Circuits.
- Biasing Transistors in Amplifier Stages.
- Timing Components in RC Circuits.
- Feedback Resistors in Op-Amp Configurations.
- Input/Output Protection and Impedance Matching.
- General Purpose Circuit Biasing and Setting Gain.
- Prototyping and Breadboarding Electronic Designs.
- Educational Kits for Learning Electronics.
Package Contents:
- 1x Carbon Resistor 10kΩ 0.125W Through Hole
