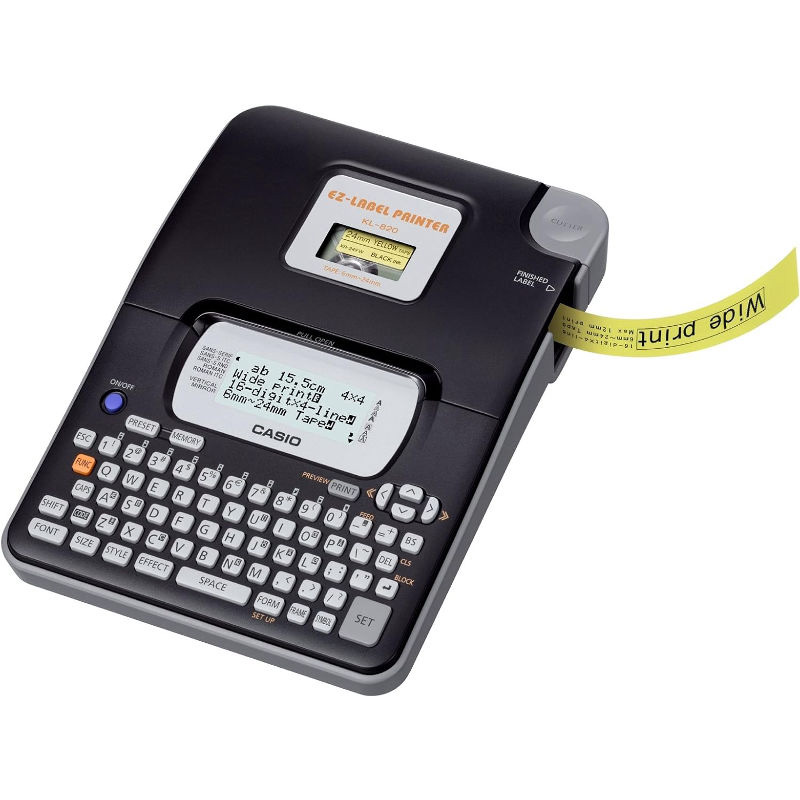

CASIO KL-820-W Label Printer
The CASIO KL-820-W is a compact, hand-held label printer designed for everyday ease of use. Housed in a robust yet lightweight casing, it features a full QWERTY keyboard and a bright, four-line LCD that guides you through every step with on-screen menus and prompts. Power comes from six readily available AA batteries or an optional AC adaptor, so you can work anywhere at your desk or on the go without hunting for a power outlet.
Loading and replacing the thermal-transfer tape cartridge is a simple one-hand operation: a hinged cover flips open, and the tape snaps into place, ready to print. An intuitive preview function lets you scroll through a virtual mock-up of your label before you print, reducing waste and ensuring your text looks just right. When you’re ready, a single press of PRINT delivers crisp, professional-grade labels through a built-in cutter that cleanly trims each strip.
Beneath its friendly interface, the KL-820-W employs thermal-transfer technology to produce durable, smudge-resistant text on a variety of adhesive tapes. Whether you’re tackling home-office organization or professional identification tasks, its ergonomic design, clear display, and straightforward workflow make label creation fast, reliable, and virtually fool-proof.
Features:
- Variable tape sizes: 6 mm, 9 mm, 12 mm, 18 mm, and 24 mm
- Attractive, interchangeable fonts: Sans-serif, Sans-serif Italic, Sans-serif Rounded, Roman, Roman Italic
- Font effects: shading, underline, box
- Character styles: normal, bold, outline, shadow, raised
- Built-in symbols and logos (60 total)
- Text memory for storing frequently used labels
- Layout printing with preset formats (e.g. CD/DVD, VHS)
- Sequential numbering function with four numbering formats
- Bar-code printing (EAN-13, EAN-8)
- Built-in frames for decorating labels
- Vertical printing and mirror-image printing modes
- Six-language display messages (English, German, French, Italian, Spanish, Swedish)
Specifications:
| Category | Specification |
|---|---|
| Model: | KL-820 |
| Keyboard Layout: | QWERTY (Typewriter-style) |
| Characters: | 151 Alphabetic, 10 Numeric, 89 Symbols |
| Display: | LCD, 95 × 32 dots (16 columns × 4 lines) |
| Print Method: | Thermal-transfer |
| Print Resolution: | 200 dpi |
| Print Speed: | 6 mm/sec |
| Supported Tape Widths: | 6 mm, 9 mm, 12 mm, 18 mm, 24 mm |
| Print Widths: | 4 mm (6 mm tape), 7 mm (9 mm), 10 mm (12 mm), 12 mm (18 & 24 mm tapes) |
| Character Matrix: | 48 × 48 dots |
| Lines per Label: | 1 (6/9 mm), 1–2 (12 mm), 1–3 (18/24 mm) |
| Max Text Length: | 100 characters |
| Memory Capacity: | 10 items each for text labels, layout formats, numbering sequences, barcodes |
| Power Supply: | 6 × AA alkaline batteries or optional AD-A95100 AC adaptor |
| Power Consumption: | 9 W |
| Auto Power Off: | After 6 minutes of inactivity |
| Operating Temperature: | 10 °C to 35 °C (50 °F to 95 °F) |
| Dimensions: | 52.5 × 167 × 223 mm (2 1/8″ × 6 5/8″ × 8 3/4″) |
| Weight: | 610 g (21.5 oz), excluding batteries |
Applications:
- Home Organization.
- Office Use.
- Industrial and Warehouse Applications.
Package Include:
- 1x Casio KL-820-W Label Printer
- 6x AA-size alkaline batteries
- 1x User manual
