CD4520BE Dual Binary counter DIP IC 16 Pin
The CD4520BE is a dual binary counter IC with 16 pins, designed by Shenzhen Honglifa Electronics Co., Ltd. It is a versatile, high-performance device used in various digital applications. The IC features two independent 4-bit binary counters with built-in clock divider and reset functionality, making it suitable for use in applications requiring frequency division, timing, and event counting.
Features:
- Dual 4-bit binary counters.
- Fully static operation.
- 5 V, 10 V, and 15 V parametric ratings.
- Wide supply voltage range from 3.0 V to 18.0 V.
- CMOS low power dissipation.
- High noise immunity.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Shenzhen Honglifa Electronics Co., Ltd. |
| Model Number | CD4520B-E |
| Package Type | DIP-16 |
| Counter Type | Dual 4-bit Binary |
| Trigger Type | Edge Triggered |
| Clock Input | High Speed |
| Voltage Supply | 3V to 18V |
| Operating Temperature | -40°C to +85°C |
| Package Pins | 16 |

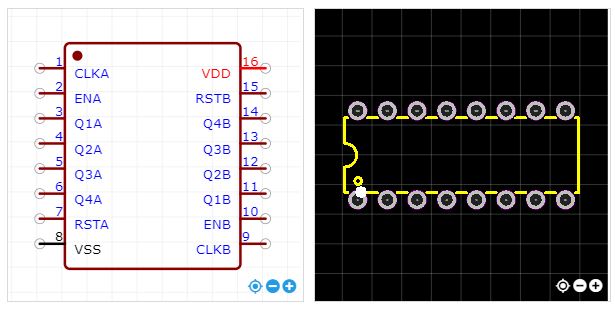

Foot Print:
Applications:
- Frequency dividers.
- Event counting circuits.
- Digital clocks and timers.
- Binary counting in digital systems.
- Frequency synthesis applications.
