CD4538 Dual Precision Monostable Multivibrator IC DIP-16
The CD4538 Dual Precision Monostable Multivibrator IC DIP-16 is a dual precision monostable multivibrator IC housed in a DIP-16 package, designed for high-stability pulse generation in digital timing circuits. Each independent section is triggered by either a leading-edge (A) or trailing-edge (B) transition, providing a wide range of output pulse widths determined by external Rₑₓₜ and Cₑₓₜ components connected to pins 6, 7, 9, and 10.
The device operates across a broad supply range from 3VDC to 18VDC and features an active-low reset (CD) to immediately terminate the output pulse. Complementary outputs at Q and Q̅ provide versatile logic interfacing, while the VDD and VSS pins at 16 and 8 ensure stable biasing. Its retriggerable capability and 100ns typical propagation delay at 15VDC make it ideal for industrial control systems and precision delay applications.
Features
- Dual independent monostable Multivibrator in a single package.
- Retriggerable and non-retriggerable operation capability.
- Wide operating voltage range.
- High noise immunity (CMOS technology).
- Stable pulse width determined by external RC components.
- Separate trigger and reset inputs.
- Low power consumption.
- Buffered outputs for reliable digital interfacing.
- Compatible with CMOS and TTL logic levels.

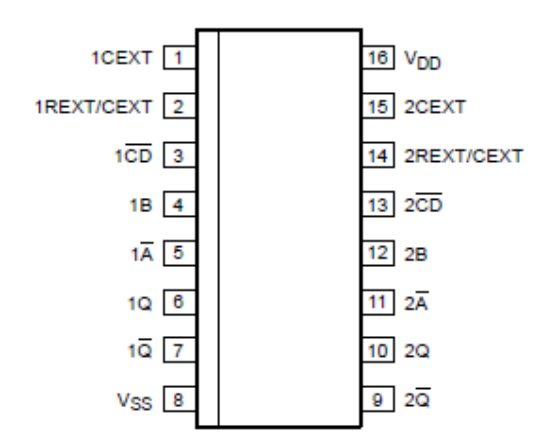

Pin Configuration

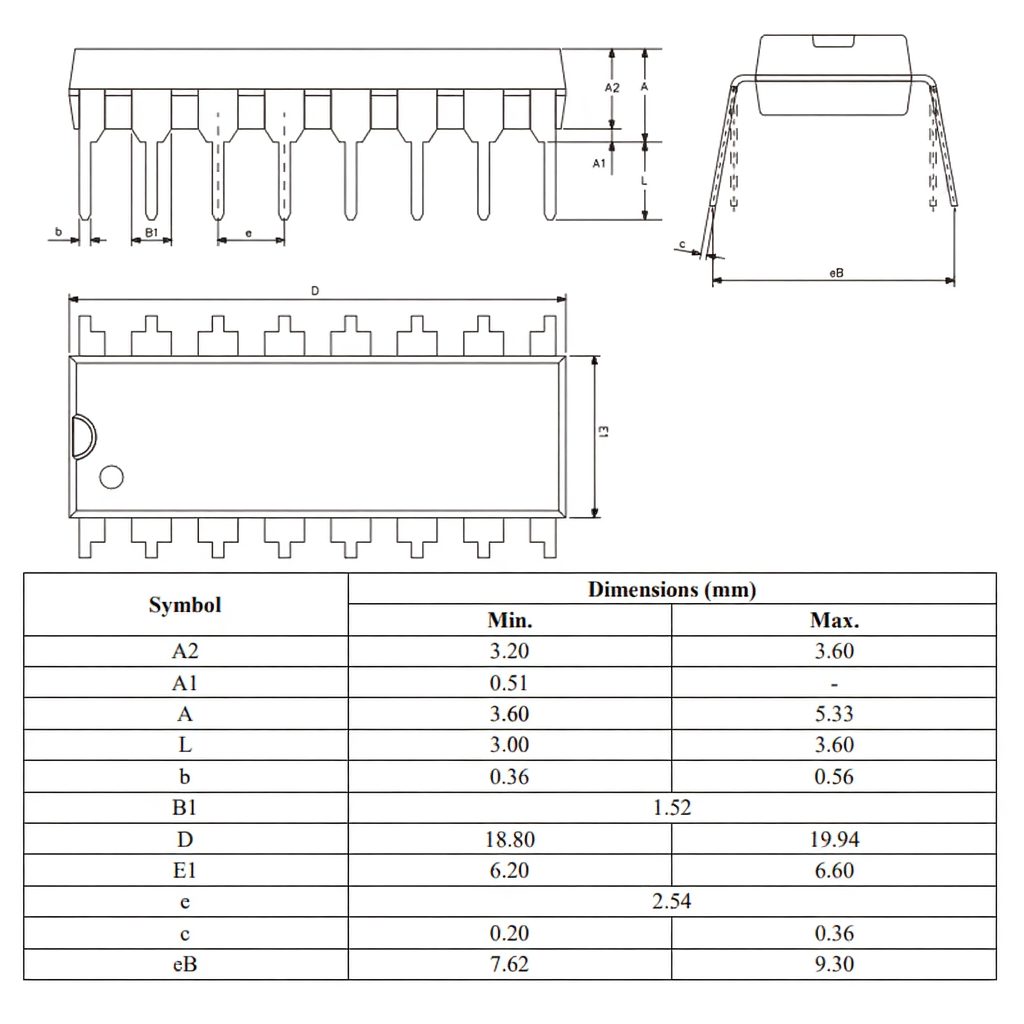

Specifications
| Parameter | Symbol | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage | VDD | Recommended operating | 3 | — | 12 | V |
| Supply Voltage (Absolute Max) | VDD | — | -0.5 | — | 14 | V |
| Supply Current (Active) | IDD | VDD = 5V | — | 55 | — | µA |
| VDD = 10V | — | 150 | — | µA | ||
| Input High Voltage | VIH | VDD = 5V | 3.5 | — | — | V |
| VDD = 10V | 7.0 | — | — | V | ||
| Input Low Voltage | VIL | VDD = 5V | — | — | 1.5 | V |
| VDD = 10V | — | — | 3.0 | V | ||
| Output High Voltage | VOH | IO < 1µA, VDD=5V | 4.95 | — | — | V |
| IO < 1µA, VDD=10V | 9.95 | — | — | V | ||
| Output Low Voltage | VOL | IO < 1µA | — | — | 0.05 | V |
| Output Low Current | IOL | VDD = 5V | 0.5 | — | — | mA |
| VDD = 10V | 1.3 | — | — | mA | ||
| Output High Current | IOH | VDD = 5V | — | — | -1.4 | mA |
| VDD = 10V | — | — | -1.3 | mA | ||
| Input Leakage Current | II | All inputs | — | — | ±1.0 | µA |
| Operating Temperature | Tamb | — | -40 | — | +125 | °C |
| Storage Temperature | Tstg | — | -65 | — | +150 | °C |
| Total Power Dissipation | Ptot | — | — | — | 500 | mW |
Applications
- Pulse generation and shaping..
- Time delay circuits.
- Missing pulse detection.
- Switch debouncing.
- Frequency division and timing control.
- Industrial control systems.
- Microcontroller interface timing.
- Power-on reset timing circuits.
Package Contents
- 1 x CD4538 Dual Precision Monostable Multivibrator IC DIP-16
