Description

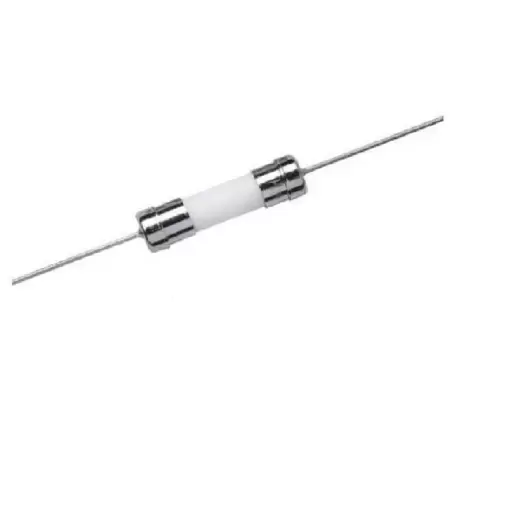

Ceramic Fuse T5 (16A-250V)
Ceramic cartridge fuses are ideal for providing protection to devices or internal circuits from short circuits and overcurrent. They are deliberately weaker components which, when too much current is drawn, will blow. Once the fuse has blown it will need replacing in order to make the circuit complete and allow the flow of current.
Features:
- Ceramic cartridge
- 5 x 20 mm cartridge size
- T Speed Rating
- Anti-surge
- Low Breaking Capacity
Specifications:
| Attribute | Value |
| Current Rating | 16A |
| Fuse Size | 5 x 20mm |
| Fuse Speed | T |
| Voltage Rating | 250V AC |
| Overall Length | 20mm |
| Diameter | 5mm |
| Overall Dimensions | 5 x 20mm |
| Body Material | Ceramic |
