Lithium Battery Charger Protection Module (BMS) 7S 30A 24V
The XR-7S-ZD-Vcx 7S 24V 30A Lithium Battery Protection Board is designed to manage and safeguard 7-series (7S) lithium battery packs. Featuring explicit voltage tapping pads for all seven individual cells (B1 through B6), this module ensures proper connection monitoring up to a 24V nominal pack setup while handling output currents up to 30A.
Features
- 7-Cell Series Configuration (7S)
- 30A Continuous Rating
- Compact & Lightweight
Specifications
| Specification Parameter | Details / Value |
|---|---|
| Model Code | XR-7S-ZD-Vcx |
| Series Rating | 7S |
| Nominal System Voltage | 24V |
| Rated Current | 30A |

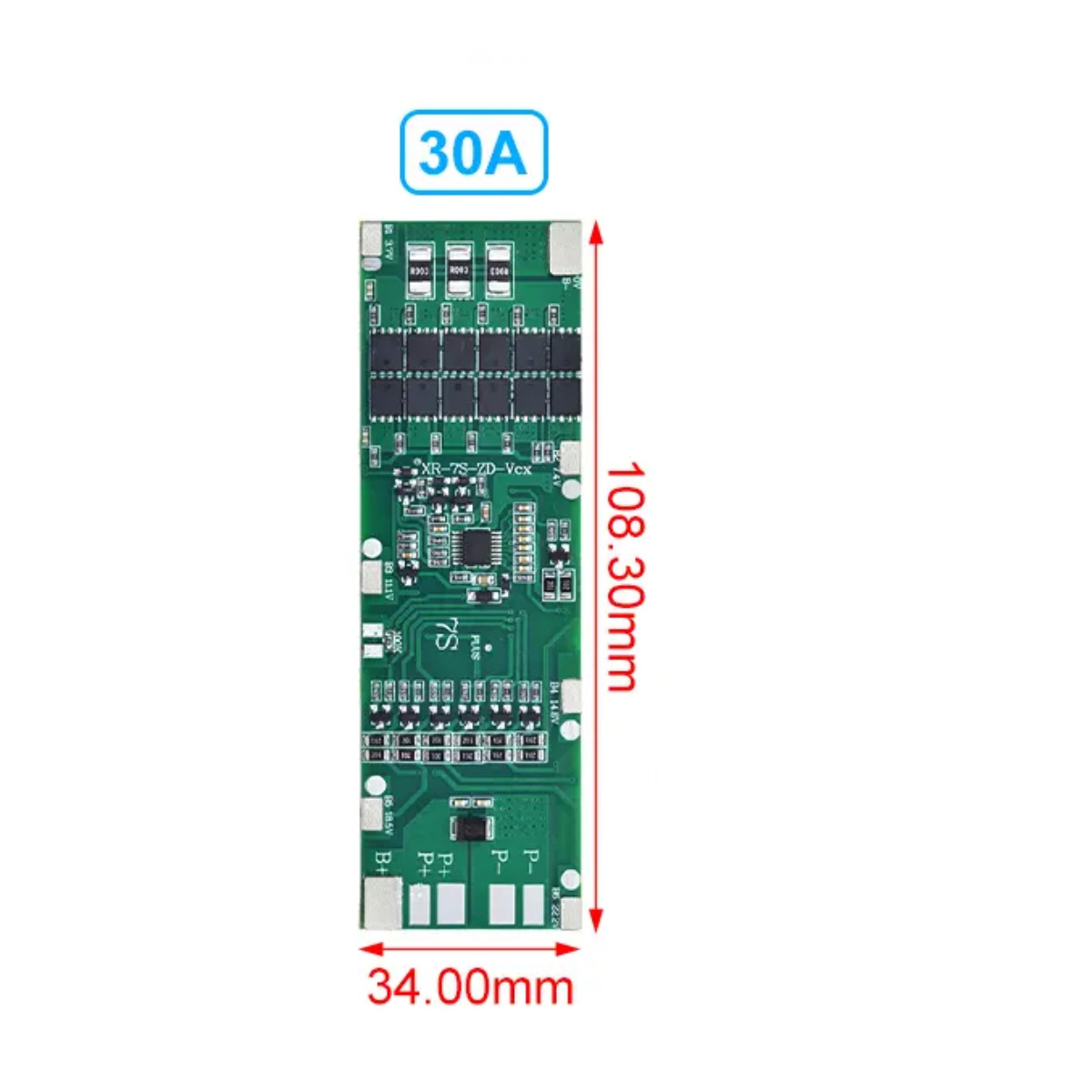

| Board Length | 108.30 mm |
| Board Width | 34.00 mm |
| Weight | 14.90 g |

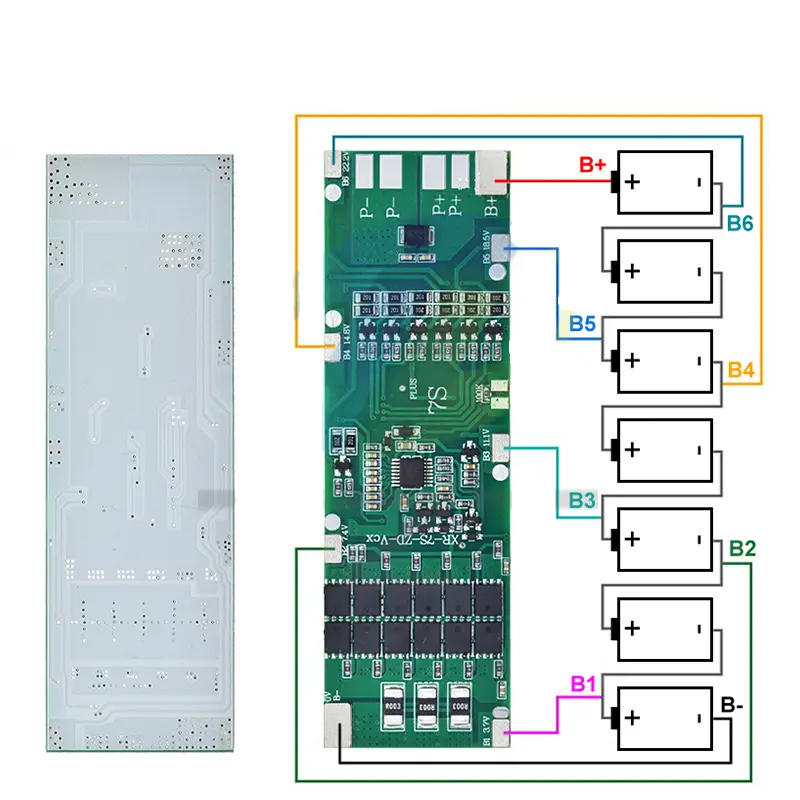

| Board Terminals | B- (0V) B1 (3.7V) B2 (7.4V) B3 (11.1V) B4 (14.8V) B5 (18.5V) B6 (22.2V) B+ P- P+ |
Applications
- 7S 24V Lithium Battery Pack Assemblies
Package Content
- 1 x Lithium Battery Charger Protection Module (BMS) 7S 30A 24V
