Chip Resistor SMD 10kΩ ±1% 0.125W ±100ppm/℃ 0805

Chip Resistor SMD 10kΩ ±1% 0.125W ±100ppm/℃ 0805

The Chip Resistor SMD 10kΩ ±1% 0.125W ±100ppm/°C 0805 from FOJAN Electronics is a precision-engineered thick film surface-mount resistor tailored for high-reliability applications in compact electronic assemblies. As part of the FRC series, this component provides a stable 10kΩ resistance value with a ±1% tolerance, ensuring accurate performance in voltage dividers, feedback networks, and signal conditioning circuits. Its 0.125W power rating supports efficient heat dissipation in moderate-power environments, while the ±100ppm/°C temperature coefficient of resistance (TCR) minimizes variations over a broad operating range, ideal for designs sensitive to thermal changes.

Features:

• Precision 10kΩ resistance with ±1% tolerance for accurate circuit tuning.
• Thick film technology on ceramic substrate for low noise and high stability.
• 0.125W power rating with 150V maximum working voltage.
• ±100ppm/°C TCR ensuring minimal thermal drift from -55°C to +155°C.
• Compact 0805 footprint (2.00 × 1.25 × 0.50 mm) for dense PCB layouts.

Specifications

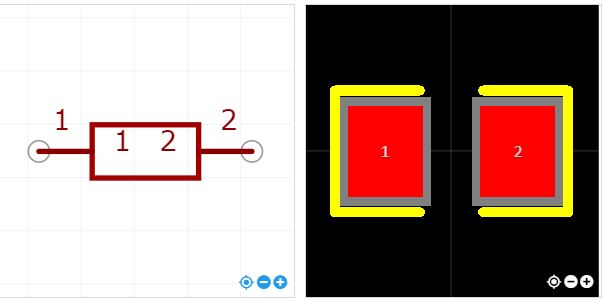

Foot Print:

Applications:

• Entertainment systems including stereo equipment, TV tuners, and tape recorders.
• Household appliances such as air conditioners and refrigerators.
• Computer main boards and PDA peripherals.
• Communication devices like cell phones and fax machines.
• Power supplies and secondary illumination equipment.

Datasheet:

FRC0805F1002TS
