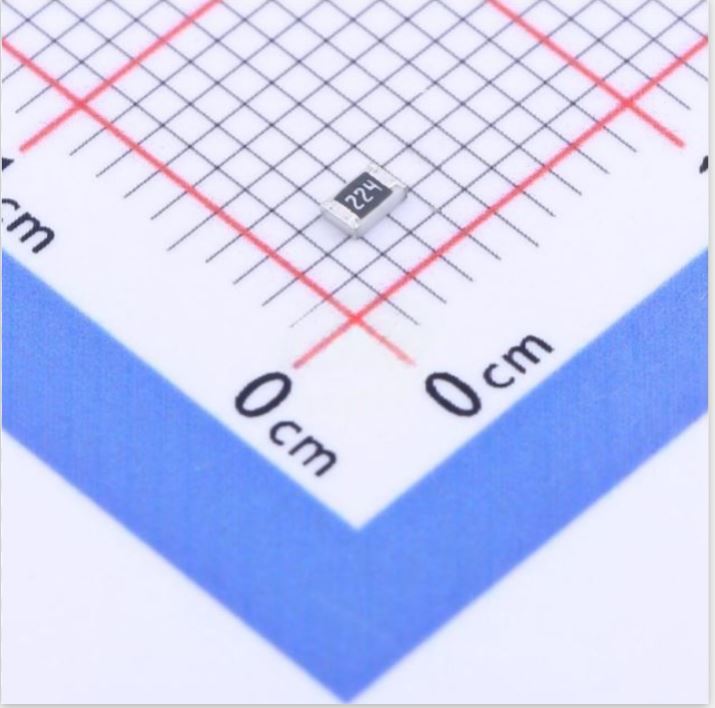

Chip Resistor SMD 220kΩ ±5% 0.125W ±100ppm/℃ 0805
The Chip Resistor SMD 220kΩ ±5% 0.125W ±100ppm/℃ 0805 is a precision surface-mount resistor designed for high-accuracy applications requiring stable performance over temperature variations. With a resistance value of 220kΩ and a tolerance of ±5%, this resistor ensures reliable performance in various electronic circuits. Its power dissipation rating of 0.125W (125mW) makes it suitable for low-power applications. The resistor’s temperature coefficient of ±100ppm/℃ allows for minimal drift with temperature fluctuations, making it ideal for circuits sensitive to temperature changes. The 0805 package ensures easy integration into high-density circuit boards, and it is compatible with automated SMT assembly.
Features:
- 220kΩ resistance with ±5% tolerance for precise performance.
- Power dissipation rating of 0.125W (125mW) for low-power applications.
- Temperature coefficient of ±100ppm/℃ for minimal performance drift.
- Compact 0805 package for efficient space utilization.
Specifications:
| Category | Passives/Resistors/Chip Resistor – Surface Mount |
|---|---|
| Manufacturer | FOJAN |
| Package | 0805 |
| Power (Watts) | 125mW |
| Resistance | 220kΩ |
| Voltage Supply (Max) | 150V |
| Temperature Coefficient | ±100ppm/℃ |
| Type | Thick Film Resistor |
| Tolerance | ±5% |
| Operating Temperature | -55℃~+155℃ |
Applications:
- Voltage regulation and current sensing circuits.
- Signal conditioning and filtering applications.
- Precision measurement and control systems.
- Consumer electronics and telecommunications.
- Industrial and automotive electronics.
