CM600HA-24H Mitsubishi Electric IGBT Transistor 1200V / 600A

2,000.00 EGP

Join the waitlist to be emailed when this product becomes available

Availability: Out of stock
SKU:3894108661532

Description:

Mitsubishi IGBT Modules are designed for use in switching applications. Each module consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

Features:

  • Low Drive Power
  • Low VCE(sat)
  • Discrete Super-Fast Recovery Free-Wheel Diode
  • High Frequency Operation
  • Isolated Baseplate for Easy Heat Sinking

Applications:

  • AC Motor Control
  • Motion/Servo Control
  • UPS
  • Welding Power Supplies

Package Included:

  • 1x CM600HA-24H Mitsubishi Electric IGBT Transistor 1200V / 600A
  • 1x M4 Screw
  • 2x M8 Screw

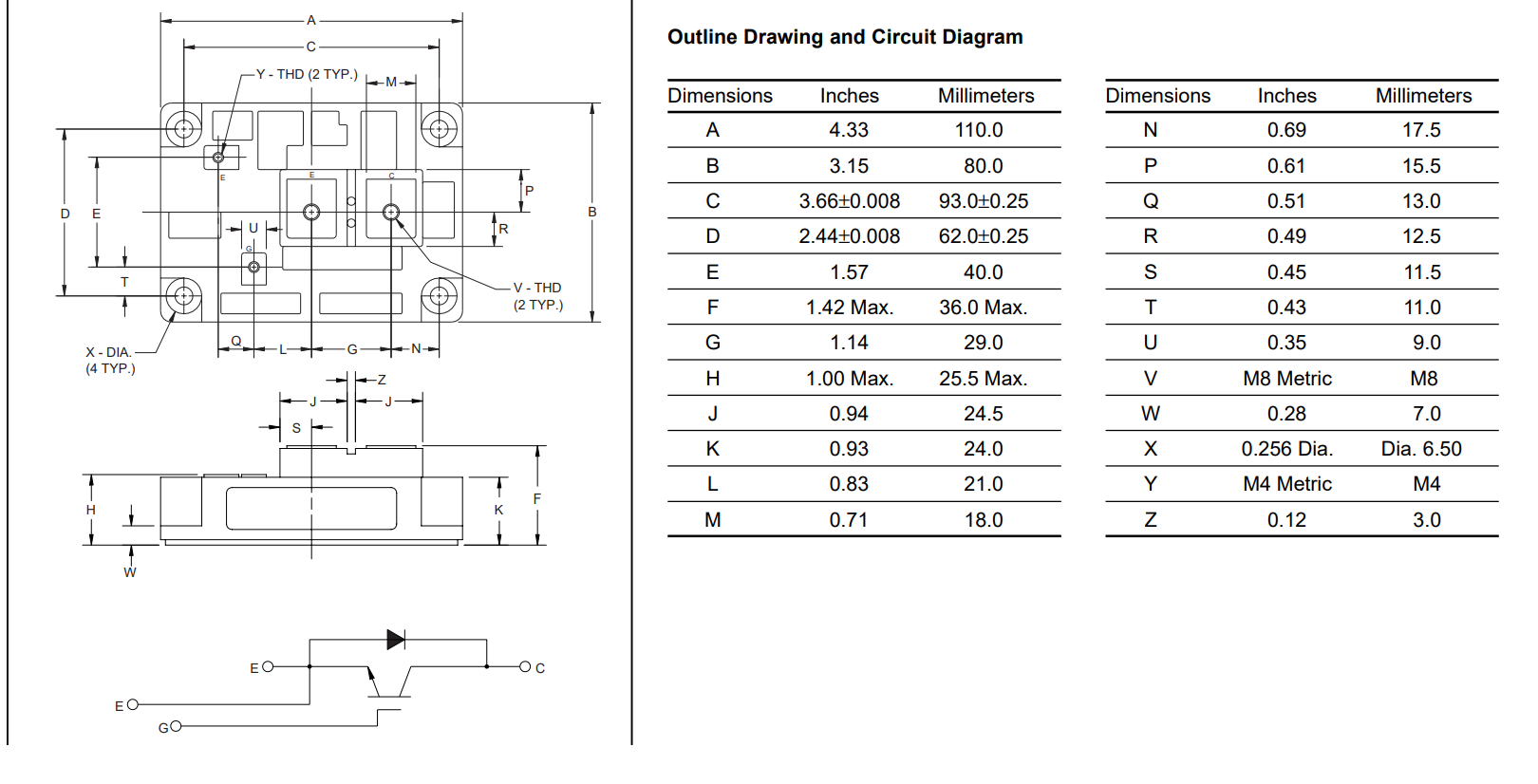

Mitsubishi-CM600HA-24H-Datasheet
