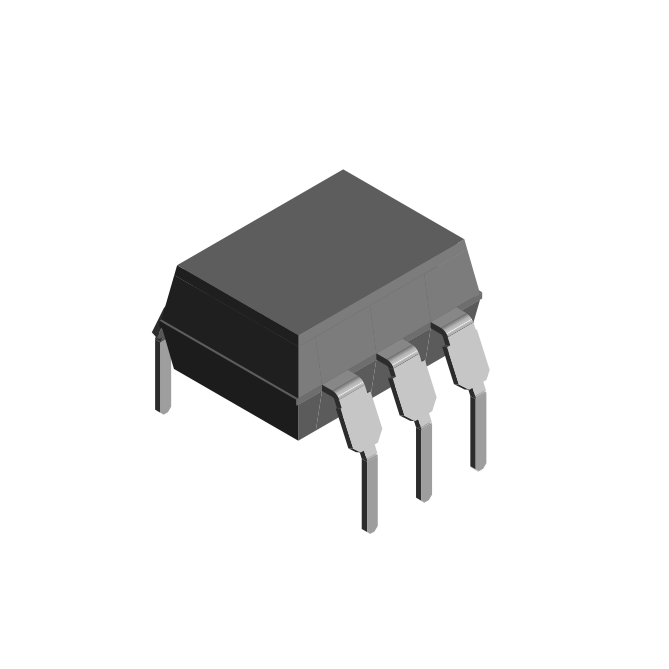

CNY75GB Optocouplers Phototransistor Output 70V 50mA DIP-6
The CNY75GB Optocoupler is a high‑isolation device integrating a gallium‑arsenide infrared LED and a phototransistor in a 6‑pin DIP package. It provides reinforced insulation up to 5000 Vrms and supports collector‑emitter voltages to 70 V. With a current transfer ratio of 100 %–200 % at 10 mA LED drive and a low saturation voltage of 0.3 V (IF = 10 mA, IC = 1 mA), it delivers reliable signal transmission and fast switching for industrial and consumer applications.
Features
- Isolation materials according to UL 94-VO
- Pollution degree 2 (DIN/VDE 0110/resp. IEC 60664)
- Climatic classification 55/110/21 (IEC 60068 part 1)
- Low temperature coefficient of CTR
- CTR offered in 3 groups
- Rated isolation voltage (RMS includes DC) VIOWM = 600 VRMS (848 V peak)
- Rated recurring peak voltage (repetitive) VIORM = 600 VRMS
- Rated impulse voltage (transient overvoltage) VIOTM = 6 kVpeak
- Isolation test voltage (partial discharge test voltage) Vpd = 1.6 kV
- Creepage current resistance according to VDE 0303/IEC 60112 comparative racking index: CTI ≥ 325
- Thickness through insulation ≥ 0.4 mm
- Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC
Specifications
| Parameter | Value |
| Category | Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers – Phototransistor Output |
| Receiving End Voltage | 70V |
| Isolation Voltage(rms) | 5000V |
| Operating Temperature | -55℃~+110℃ |
| Fall time | – |
| Output Current | 50mA |
| Rise time | – |
| Collector-Emitter Saturation Voltage (Vce(sat)@Ic,IF) | 0.3V@1mA,10mA |
| Number of Outputs | 1 |
| Reverse Voltage | 5V |
| Forward Voltage | 1.25V |
| Output Type | Phototransistor |
| Input voltage type | DC |

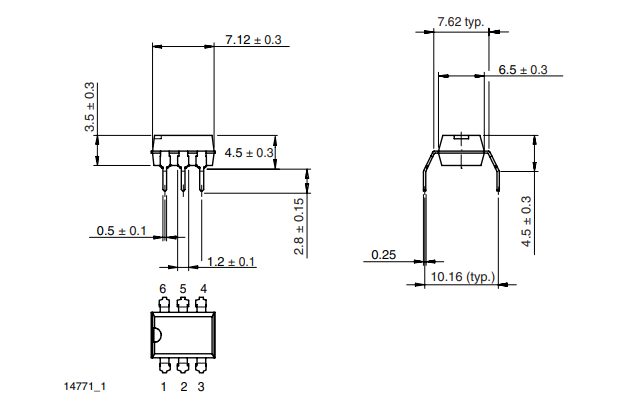

Dimensions
Applications
- Switch-mode power supplies
- Line receiver
- Computer peripheral interface
- Microprocessor system interface
- Circuits for safe protective separation against electrical shock
