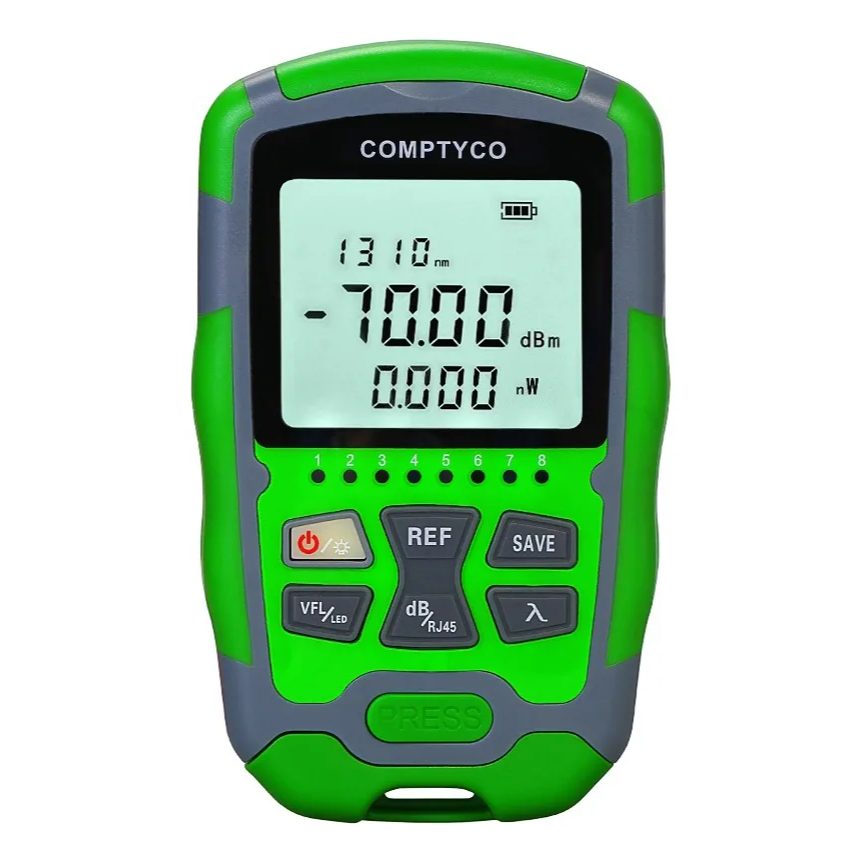

COMPTYCO AUA-MC70 Optical Power Meter -70~+10dBm with Lithium Cell
The COMPTYCO AUA-MC70 is a versatile and compact handheld optical power meter designed for the installation, operation, and maintenance of fiber optic networks. This multifunctional device integrates an optical power meter, a visual fault locator (VFL), an LED light source, and an RJ45 network cable tester, making it an indispensable tool for telecommunications and data center professionals.
Features
- Multifunctional 4-in-1 Design: Combines an optical power meter, visual fault locator, LED flashlight, and RJ45 cable tester into a single, portable unit.
- Wide Measurement Range: Accurately measures optical power from -70 dBm to +10 dBm.
- Multiple Wavelengths: Supports a wide range of standard wavelengths including 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, and 1650nm.
- User-Friendly Interface: Features a clear, backlit LCD display for easy reading in various lighting conditions and an intuitive keypad for straightforward operation.

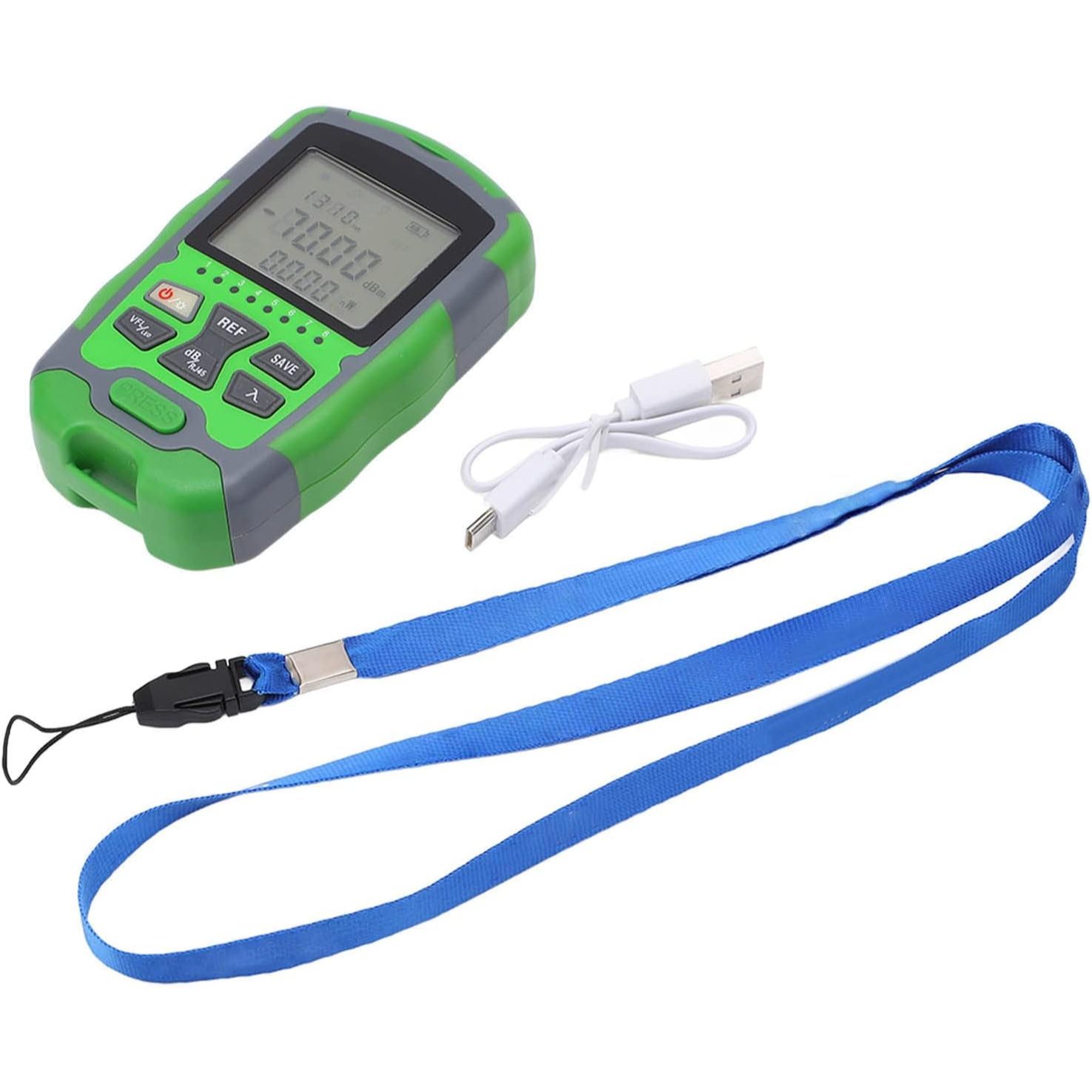

- Rechargeable Power: Equipped with a long-lasting rechargeable lithium battery, offering up to 12 hours of continuous use, and can be conveniently recharged via a Type-C cable.
- Durable and Portable: Its rugged and lightweight design makes it ideal for field use.
Specifications
| Power measurement range | -70 ~ +10dbm / -50 ~ +26dbm |
| Probe type | InGaAs |
| Wavelength range | 850 ~ 1650nm |
| Standard Wavelength (NM) | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 |
| Display resolution | LINEAR DISPLAY: 0.1% logarithmic display: 0.01 dbm |
| Operating temperature | -10 ~ +60℃ |
| Storage temperature | -25 ~ +70℃ |
| Automatic shutdown time (min) | Ten minutes |
| Output Power of red light source | >1mW | >10mW | >20mW | >30mW | >50mW |
| Output Wavelength of red source | 650nm |
| Contour dimension (mm) | 111 x 69 x 30 |
| Power supply | Rechargeable lithium battery or 2 No. 7 Alkaline Batteries |
Applications
- Fiber Optic Installation
- Telecommunication Networks
- Maintenance and Troubleshooting
- Network Certification
- Field Work
- Research and Development
