Automotive Wire Connector Female 5557-1x2P-4.2mm 2 Pin with Contacts
Compact and durable, the Automotive Wire Connector Female 5557-1x2P-4.2mm 2 Pin with Contacts is designed for reliable power and signal interconnection in automotive, appliance, and industrial applications. Featuring a 4.2 mm pitch and single-row design, it accommodates 16–24 AWG crimped wires and supports up to 9 A per contact at 600 V AC/DC. The nylon housing is heat- and chemical-resistant and includes tin-plated female crimp contacts for immediate use. It is mechanically and electrically compatible with equivalent industrial connectors—such as the Molex 39014020 (Mini-Fit Jr. 2‑position housing).
Features
- Compact single-row housing with reliable latch mechanism.
- 4.2 mm pitch ensuring secure high-current connections.
- Rated for 9 A per circuit at 600 VAC/DC for demanding applications.
- Supports 16–24 AWG crimped wires; heat-resistant nylon housing.
- Includes female tin-plated crimp contacts for plug-and-play use.
Specifications
| Parameter | Value |
|---|---|
| Model | 5557‑1×2P |
| Contact Configuration | 2 circuits (1×2 row) |
| Pitch | 4.2 mm |
| Current Rating | 9 A per contact |
| Voltage Rating | 600 V AC/DC |
| Wire Gauge Range | 16–24 AWG |
| Housing Material | Nylon (UL-rated) |
| Operating Temp Range | –40 °C to +105 °C |
| Contact Type | Tin-plated female crimp contacts |
Housing Dimensions

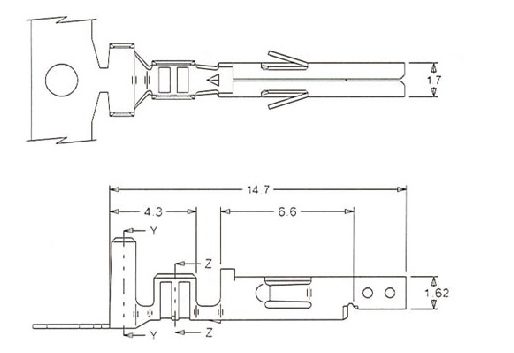

Connector Dimensions
Applications
- Power connections in automotive wiring harnesses.
- Appliance and control panel interconnects.
- Industrial and DIY electronics requiring secure, high-current connectors.

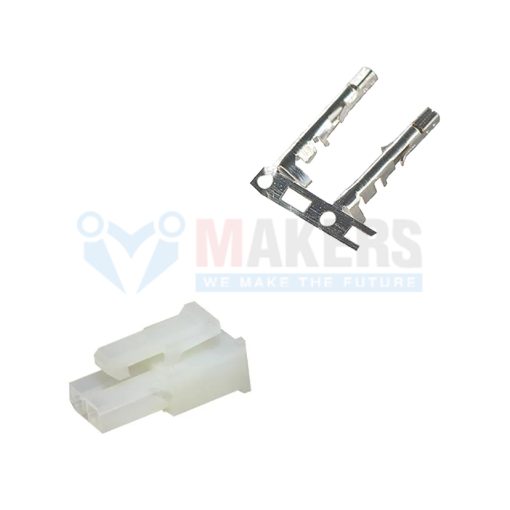

Package Contents
- 1× 5557‑1×2P female connector housing.

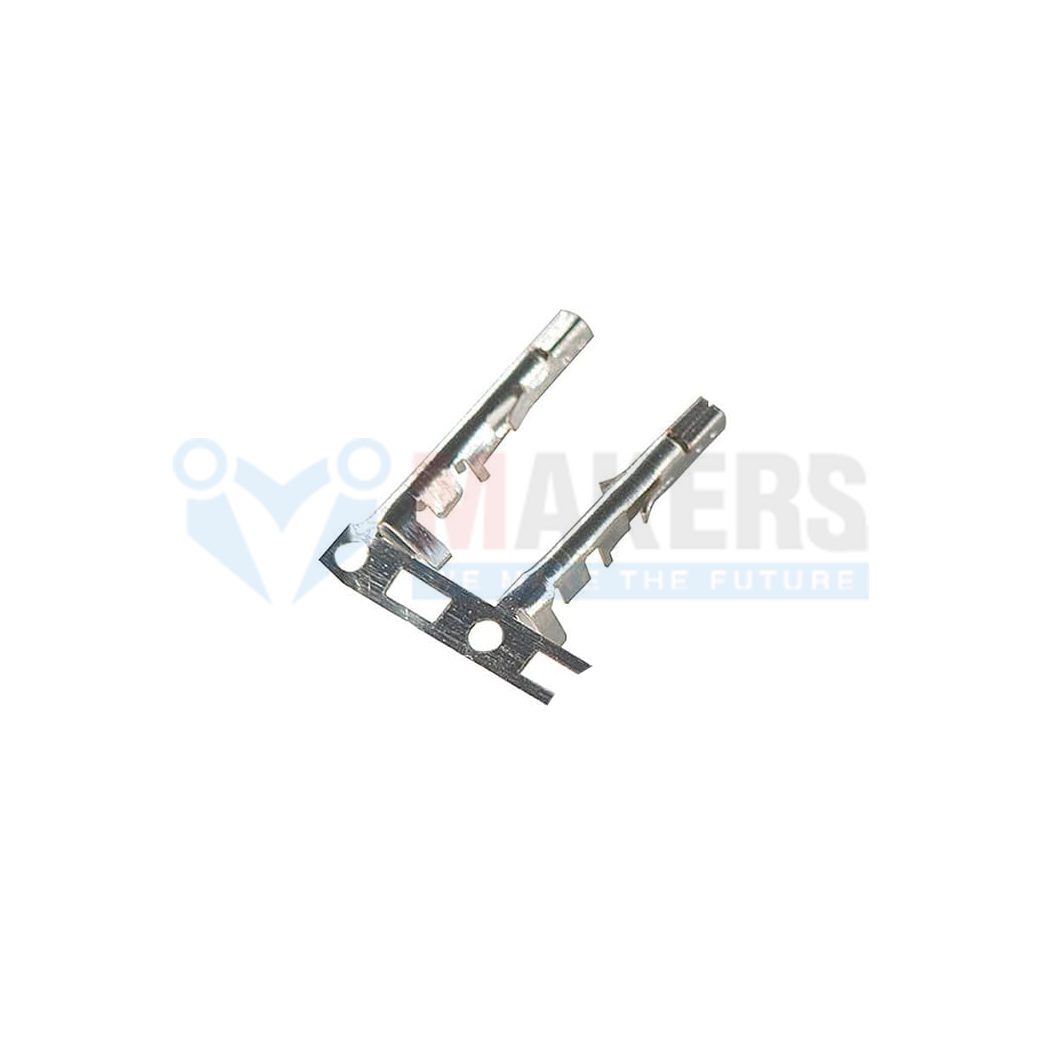

- 2× Tin-plated female crimp contacts.
