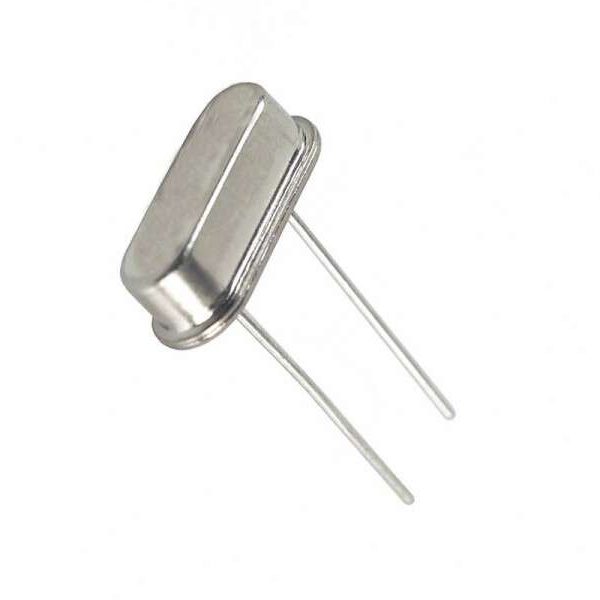

Crystal 13.52127MHz 20PPM 20pF 40Ω HC-49S
The Crystal 13.52127MHz HC-49S is a high-precision quartz crystal designed for stable frequency control in timing-sensitive electronic applications. It operates at 13.52127MHz with a frequency tolerance of ±20ppm, ensuring consistent and accurate signal generation. With a load capacitance of 20pF and a series resistance of 40Ω, this crystal offers low phase noise and excellent stability. Encased in a standard HC-49S through-hole package, it is easy to mount and highly compatible with a variety of circuit designs, making it ideal for use in RF systems, microcontrollers, communication equipment, and digital devices.
Features:
- Precise 13.52127MHz operating frequency.
- ±20ppm frequency tolerance for accurate timing.
- 20pF load capacitance ensures stable oscillation.
- 40Ω equivalent series resistance.
- HC-49S standard through-hole metal can package.
- Low phase noise and high frequency stability.
- Durable and compact design for reliable performance.
- Suitable for RF, communication, and digital applications.
Specifications:
| Standard Frequency (MHz) | 13.52127 |
| Frequency Tolerance (ppm) | ±20 |
| Load Capacitance (pF) | 20 |
| Equivalent Series Resistance (Ω) | 40 |
| Pin Count | 2 |
| Mounting | Through Hole |
| Package | HC-49S |
Dimensions:
Applications:
- RF communication and wireless systems.
- Microcontroller and embedded system clocks.
- Frequency synthesizers and timing circuits.
- Digital signal processing (DSP) systems.
- Consumer electronics and multimedia devices.
- Data transmission and networking equipment.
- Test and measurement instruments.
- Industrial automation and control systems.
Package Contents:
- 1 X Crystal 13.52127MHz 20PPM 20pF 40Ω HC-49S
