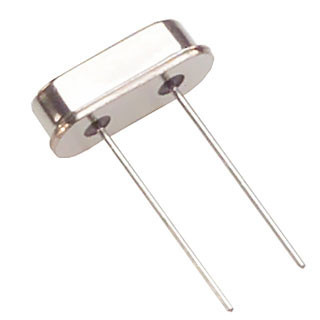

Crystal 20.000MHz HC-49S 20PPM 20pF 40Ω

Crystal 20.000MHz HC-49S 20PPM 20pF 40Ω

The 20.000MHz HC-49S crystal is a high-precision quartz resonator designed for applications requiring accurate frequency control. Encased in a standard HC-49S package, this crystal offers a stable frequency output suitable for various electronic circuits. Its 20PPM frequency tolerance ensures minimal deviation over time and temperature variations, making it reliable for time-sensitive applications.

With a load capacitance of 20pF, this crystal is optimized for circuits that require specific capacitive loading for proper oscillation. The 40Ω equivalent series resistance (ESR) indicates low energy loss, contributing to efficient performance in oscillators and timing circuits. These characteristics make the crystal suitable for applications where precise timing and frequency stability are paramount.

The HC-49S package is widely used due to its compact size and ease of integration into various electronic assemblies. This crystal’s specifications make it ideal for use in microcontrollers, communication devices, and other electronic systems requiring precise frequency control. Its robust design ensures reliable operation in a range of environmental conditions, providing consistent performance in demanding applications.

Features:

• Frequency: 20.000MHz.
• Frequency Tolerance: ±20PPM.
• Load Capacitance: 20pF.
• Equivalent Series Resistance (ESR): 40Ω.
• Package Type: HC-49S.

Specifications:

Applications:

• Microcontroller Timing Circuits.
• Communication Devices.
• Clock Generation Systems.
• Frequency Synthesis Modules.
• Signal Processing Equipment.

Package includes:

• 1x Crystal 20.000MHz HC-49S 20PPM 20pF 40Ω
