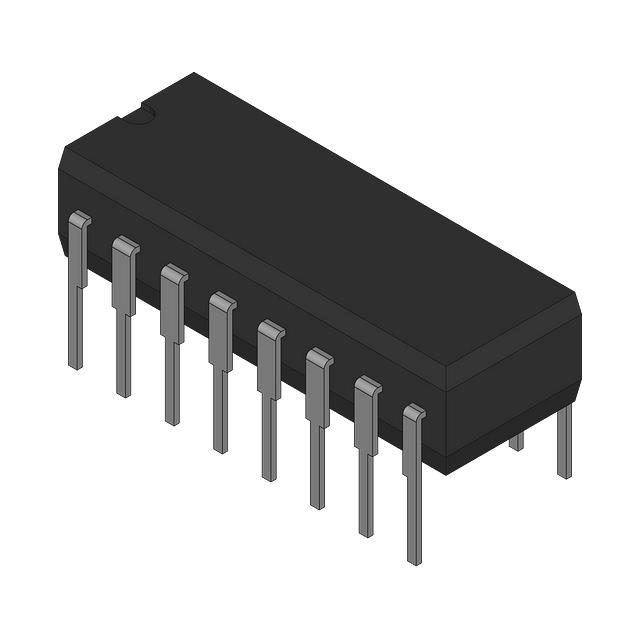

CS3524AN Regulating Pulse Width Modulator IC DIP-16
Description:
The CS3524AN is a highly efficient pulse width modulation (PWM) controller IC with an integrated voltage regulator, ideal for DC-DC converters and power supply designs. With a DIP-16 package, it provides excellent performance in regulating output voltage and maintaining stable operation in power electronics.
Features:
- Pulse Width Modulation (PWM): Provides stable and adjustable output for power conversion.
- Voltage Regulation: Integrated regulation for precise voltage control.
- Wide Voltage Range: Operates with input voltages from 4.5V to 40V.
- DIP-16 Package: Easy integration into designs and breadboards.
- Adjustable Frequency: Configurable switching frequency for flexible application.
- Overcurrent Protection: Built-in protection features for reliable and safe operation.
Specifications:
| Specification | Value |
|---|---|
| Device Type | Pulse Width Modulator (PWM) Controller |
| Operating Voltage Range | 4.5V to 40V |
| Package Type | DIP-16 |
| Output Type | Regulated PWM |
| Switching Frequency | Adjustable (typically 100kHz to 400kHz) |
| Current Limit | Yes |
| Oscillator Frequency | Adjustable, typically 100kHz-400kHz |
| Temperature Range | -40°C to +85°C |
| Integrated Features | Voltage regulator, PWM, protection |
Applications:
- Power Supply Design: Ideal for use in DC-DC and AC-DC power supply circuits.
- Battery Chargers: Suitable for applications requiring efficient power conversion.
- LED Drivers: Used in designs requiring regulated voltage to drive LEDs.
- Motor Control: Can be employed in motor control circuits that require pulse width modulation.
- Inverters: Great for use in power inverters for renewable energy systems.
