Current Sense Transformer 20(100)A/10mA

Current Sense Transformer 20(100)A/10mA

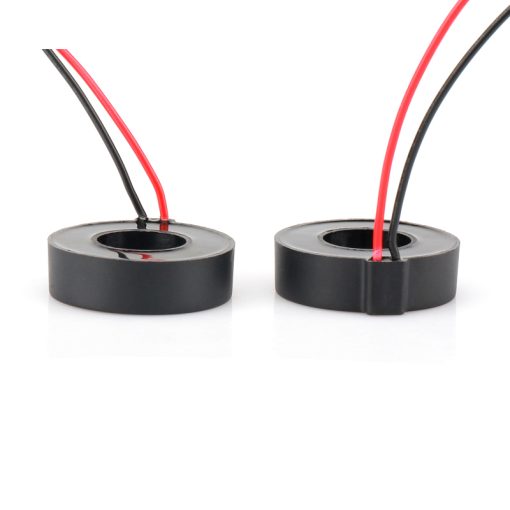

This high-quality current transformer provides accurate, non-invasive AC current measurement for monitoring and metering applications. Featuring a 20(100)A primary current rating with 10mA secondary output, this compact toroidal CT offers reliable performance for energy monitoring systems, power meters, and industrial automation.

Features

• Compact Toroidal Form Factor – Space-saving design fits in tight enclosures
• Wide Current Range – 20A nominal, 100A maximum primary current capacity
• Insulated Housing
• Color-Coded Leads – Red and black wire leads for proper polarity connection
• Wide Frequency Response – Suitable for 50/60Hz applications

Specifications

• Primary Current Rating: 20A (100A max)
• Secondary Output: 10mA
• Turns Ratio: 1:2000
• Accuracy Class: 0.5-1.0%
• Frequency Range: 50/60 Hz
• Inner Diameter: 15 mm
• Outer Diameter: 32 mm
• Wire Length: 90 mm
• Wire Gauge: 24 AWG
• Operating Temperature: -25°C to +70°C
• Weight: 16 g

Applications

• Energy Management Systems
• Smart Meters
• Motor Control Centers
• Solar Inverters
• Industrial Automation
• Power Quality Analyzers
• Building Management Systems
• Data Center Monitoring
• Electric Vehicle Charging Stations

Certificate Of Compliance

Package Includes

• 1 x Current Transformer (20/100A:10mA)
• Pre-attached wire leads with stripped ends
