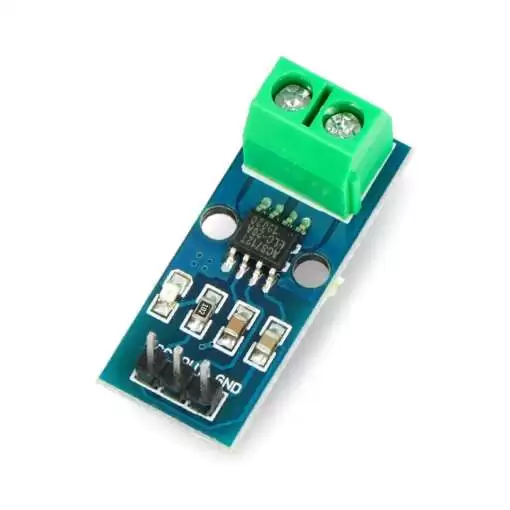

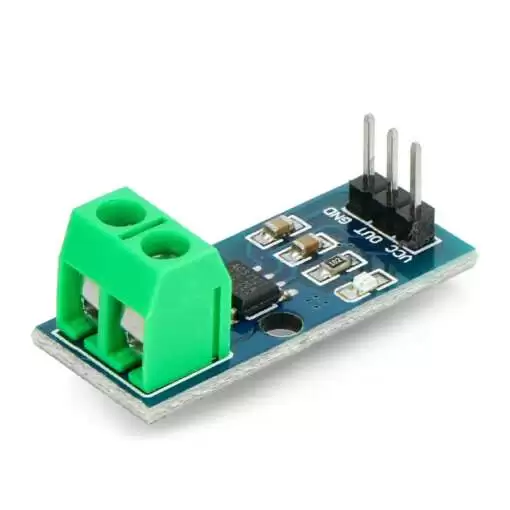

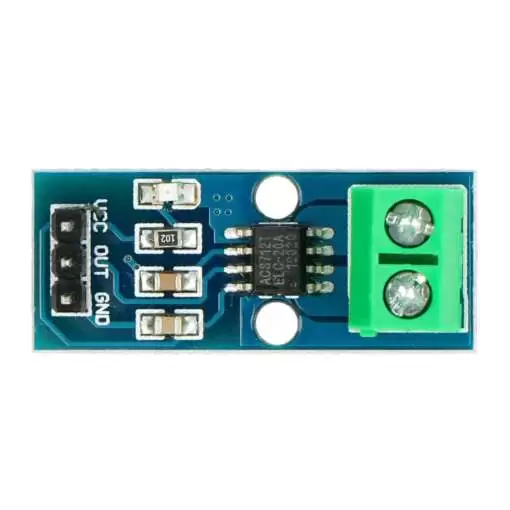

Current Sensor Module ACS712 20A

The 20 Amp Hall sensor provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. The device package allows for easy implementation by the customer. Typical applications include motor control, load detection and management, switchmode power supplies, and overcurrent fault protection.

Features of ACS712 20A Hall Current Sensor Module:

• Supply voltage: 5V
• Chip: ACS712ELC-20A
• Connector: analog
• Measuring range: 0 A to 20 A
• Sensitivity: 100mV/A
• Dimensions: 32x15mm

Application of ACS712 20A Hall Current Sensor Module:

• Current Sensing.
• Fault detection point.
• DIY projects requiring constant current monitoring.

Documents

ACS712 Datasheet
