Cytron Dual Channel DC Motor Driver (10A Each Channel)

450.00EGP

Description

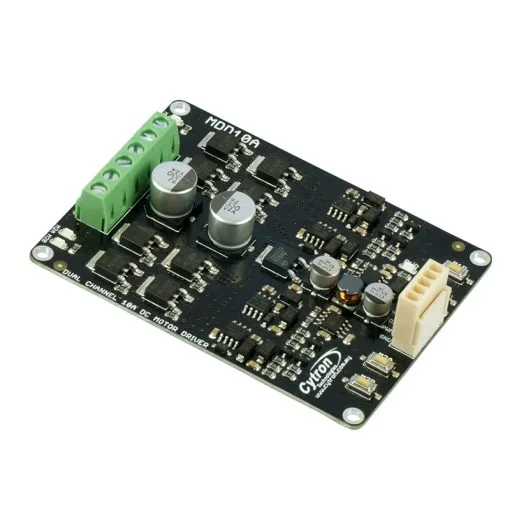

MDD10A is the dual channel version of MD10C which is designed to drive 2 brushed DC motor with high current up to 10A continuously. Like MD10C, MDD10A also supports locked-antiphase and sign-magnitude PWM signal. It is using full solid state components that result in faster response time and eliminate the wear and tear of the mechanical relay.

**Note that it is not for “RC PWM”

Features:

  • Bi-directional control for 2 brushed DC motor.
  • Support motor voltage ranges from 5V to 25V.
  • Maximum current up to 10A continuous and 30A peak (10 second) for each channel.
  • Solid state components provide faster response time and eliminate the wear and tear of mechanical relay.
  • Fully NMOS H-Bridge for better efficiency and no heat sink is required.
  • Speed control PWM frequency up to 20KHz. Support both locked-antiphase and sign-magnitude PWM operation.
  • 2 activation buttons for fast test on each channel.
  • Dimension: 84.5mm x 62mm



       Attachment:

Date Added Size Action
User’s Manual V1.0 Dec 2013 06/10/2017 N/A Download
Fritzing File 06/10/2017 N/A Download
Fritzing Tutorial 06/10/2017 N/A Download

Specification:

Operating Condition
Motor Channel 2
Operating Voltage (VDC) 5 to 25 (Rev 1.0) 5 to 30 (Rev 2.0)
Peak Current (A) 30 (10 seconds)
Continuous Current (A) 10
Operating Modes
Arduino Shield No- can be used with Wire connection
PWM (Lock-Antiphase and Sign-Magnitude) Yes
UART NO
Analog No
RC Servo Signal NO
Special Protection
Polarity Protection NO
Appearance
LEDs Indicator Yes
Test/Manual Button Yes
Cooling Fan NO
Other Features
others No heat sink is required
