Cytron MDDS10 Smart Drive DC Motor Driver Dual Channels 10Amp 7V-35V

The Cytron MDDS10 is a dual-channel motor driver for DC motors, handling 10A continuous and 30A peak. It supports RC, PWM, analog, and serial control modes.

2,750.00 EGP

Buy Now
Availability: In Stock
SKU:36011496
Brand:
Cytron MDDS10 Smart Drive DC Motor Driver Dual Channels 10Amp 7V-35V

The Cytron MDDS10 Smart Drive is a robust and versatile dual-channel motor driver designed to control medium power brushed DC motors. Its primary use is for driving mobile robots with differential drive configurations. The driver can handle up to 10A of continuous current per channel and 30A peak for brief periods, making it suitable for various robotic applications. The MDDS10 is built to ensure smooth operation with a 16 kHz switching frequency, preventing any undesirable motor noise. Additionally, it features built-in safety mechanisms such as thermal protection, low and high voltage warnings, and multiple input modes.

What sets the MDDS10 apart is its flexibility in control methods. It supports multiple input modes, including RC (Radio Control), analog signals, PWM, and serial communication. This versatility allows users to integrate the driver with various control systems, such as RC transmitters, microcontrollers, and even joystick-based systems. The driver is designed to be user-friendly, with simple setup processes, and it includes test buttons for quick troubleshooting and operation checks.

The MDDS10 incorporates several smart features to enhance its usability and reliability. It is equipped with a microcontroller that enables intelligent features like adjustable input modes and real-time error monitoring. The device also includes onboard indicators for various system states, such as motor operation and errors. Its thermal protection feature prevents overheating, ensuring the longevity and durability of the motor driver, even in demanding environments. The compact design and high current handling make it an ideal choice for applications requiring precise and durable motor control.

Features:
  • Bi-directional control for dual brushed DC motor.
  • Support motor voltage from 7 to 35VDC.
  • Maximum current up to 30A peak (10 seconds), 10A continuously.
  • 16 KHz switching frequency for quiet operation.
  • On board additional functions:
    • Battery low voltage indicator.
    • Battery over voltage indicator.
    • Thermal protection.
  • Multiple input modes:
    • RC (Radio Control), 3.3 to 5.0V compatible
    • Analog voltage(0 – 5V) from potentiometer/variable resistor/joystick
    • PWM and DIR from microcontroller, supports both sign magnitude and
      locked-antiphase, 3.3 to 5.0V compatible
    • TTL UART – Simplified Serial or Packetized Serial, 3.3 to 5.0V compatible
  • On board push buttons for fast test and manual operation.

Note: No polarity protection for V motor.

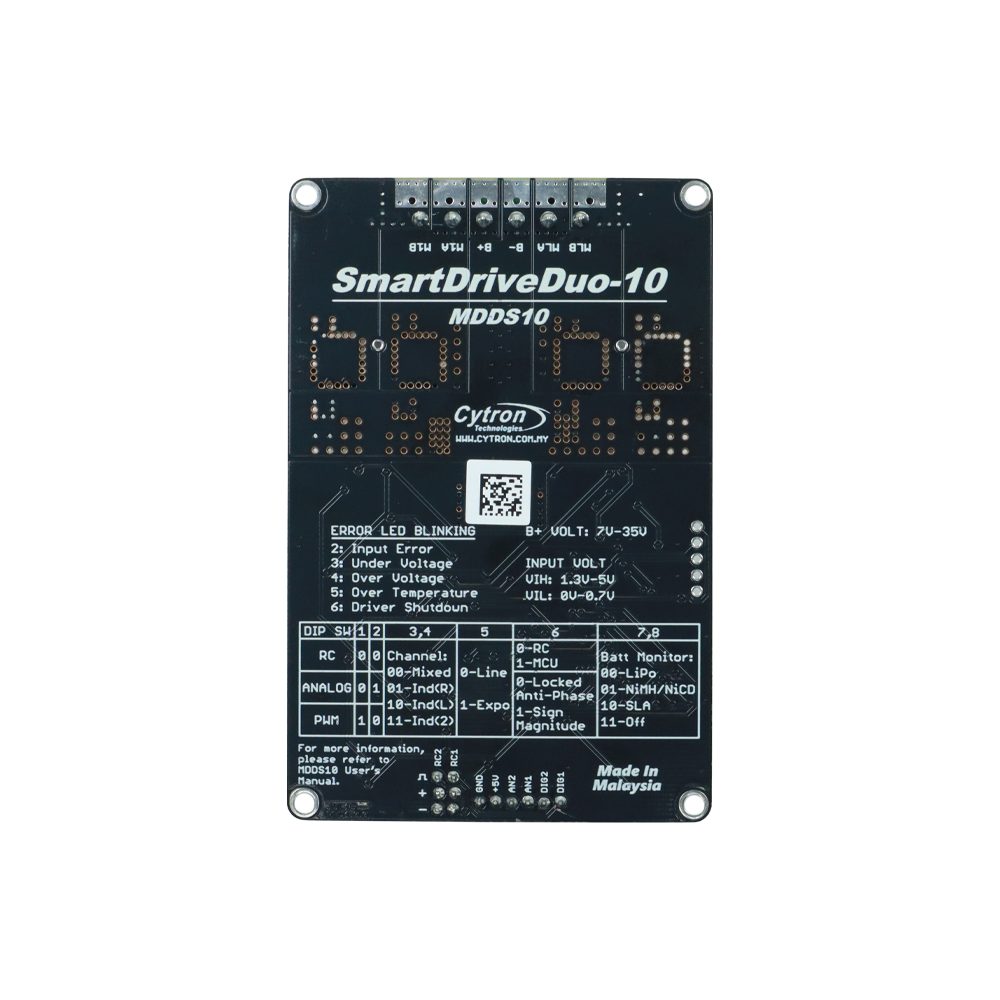

Board Layout:

Label Function
A Motor RIGHT LED Indicator
B Motor RIGHT Terminal Block
C Power Supply Terminal Block
D Motor LEFT Terminal Block
E Motor LEFT LED Indicator
F Mode Selection DIP Switch
G Motor LEFT Test Button
H Analog/PWM/Serial Input Pin
I RC Input Pin
J Motor RIGHT Test Button
K Motor RIGHT Run LED
L Error LED
M Motor LEFT Run LED
Analog/PWM/Serial Input Pin
     Pin           Name       Description
1 DIG1 1: Digital signal (Direction) for motor LEFT.
2: Serial Simplified, Serial Packetized.
2 DIG2 Digital signal (Direction) for motor RIGHT.
3 AN1 Analog/PWM signal for motor LEFT.
4 AN2 Analog/PWM signal for motor RIGHT.
5 +5V +5V output. Do not connect to another 5V source.
6 GND Ground
Error LED:
Number of Blinks Error Name Description
Off No Error No error has been detected. The system is operating normally.
2 Input Error Invalid or no control signal (PWM) detected from the receiver.
3 Under Voltage The battery voltage is too low.
4 Over Voltage The supply voltage is over the operating limit. The MDDS10 will not operate.
5 Over Temperature The board temperature is high.
6 Shutdown The board temperature is critically high! The motor has automatically stopped.
Specifications:
Parameter Min Typical Max Unit
Input Voltage (Motor Supply): 7 35 VDC
Maximum Continuous Motor Current: 10 A
Peak Motor Current (10 seconds):   30 A
Logic Input High Level (VIOH): 1.3 5 V
Logic Input Low Level (VIOL): 0 0.7 V
5V Output Current: 500 mA
Dimension:

Power Supply:

SmartDriveDuo-10 supports input voltage ranges from 7 to 35VDC. The recommended
power sources are:

  • 6 – 18 cells NiMH or NiCd battery.
  • 2 – 6 cells LiPo or Li-Ion battery.
  • 7V – 35V sealed lead acid battery.
  • 7V – 35V power supply (Must be in parallel with a battery with same voltage).
Safety Features:
  • Input Error (Error LED blinks 2 times)
  • Under Voltage Warning (Error LED blinks 3 times)
  • Over Voltage Protection (Error LED blinks 4 times)
  • Over Temperature Protection (Error LED blinks 5 times)
              Temperature Range (°C)                    Duty Cycle (%)
    < 50 100
    50 – 55 90
    55 – 60 80
    60 – 65 70
    65 – 70 60
    70 – 80 50
    80 – 85 40
    85 – 90 30
    90 – 95 20
    95 – 100 10
    100 – 105 5
    > 105 0 (Shutdown)
  • Shutdown (Error LED blinks 6 times)

Note: MDDS10 does not come with polarity protection, please double check the
connection before powering up.

Input Mode:

1.RC INPUT MODE:

NOTE: The RC transmitter must be ON before power up the SmartDriveDuo-10.

2. Analog/PWM Input Mode:

NOTE: The Analog/PWM signal to stop the motor (2.5V if Sign-Magnitude mode is off,
0V otherwise) must be available when the SmartDriveDuo-10 is turned on. Else, the driver
will show Input Error until the correct signal is available.

3. Serial Simplified Mode:

Bit 7 (Channel): 0 – motor LEFT, 1 – motor RIGHT.
Bit 6 – 0: Control motor direction and speed.

4. Serial Packetized Mode:

NOTE:

  1. When the driver is powered up and waiting for the header byte, the error LED will
    blink and indicate that there is input error.
  2. SmartDriveDuo-10 may take up to 500ms to start up after power is applied. Sending
    the header byte for auto baud during this time period may cause undesirable results.
    Please allow one-second delay between applying power and sending the header byte.

Applications:
  • Mobile Robot Control.
  • Differential Drive Systems.
  • RC Controlled Robots.
  • Joystick-Controlled Robots.
  • Microcontroller-Based Motor Control.
  • PWM or Analog Input Systems.
  • Serial Communication Motor Control.
  • Multi-Motor Control via UART.



Package Contents:
  • 1x Cytron MDDS10 Smart Drive DC Motor Driver Dual Channels
  • 6x Terminal pin for 2510
  • 1x 6-way Connector Housing
Documents:
Datasheet:   MDDS10 User’s Manual
Certificate: Cofc UKCA RoHS UKCA-EMC Cert
3D CAD: MDDS10 MDDS10
Official Reseller: Makers Electronics



Weight 75 g
Dimensions 70 × 115 × 20 mm
