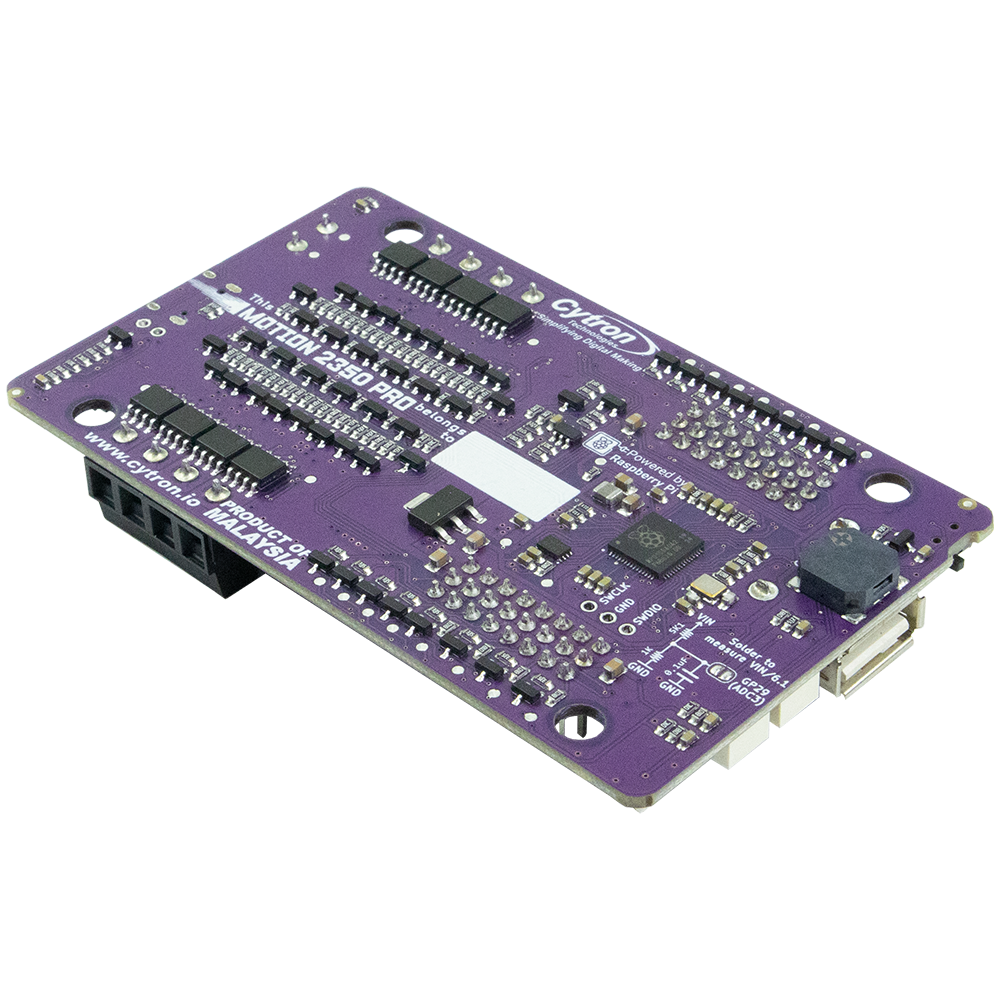

Cytron MOTION-2350-PRO RP2350 Advanced Robotics Controller for Beginners
A versatile robotics controller for beginners, with GPIO, PWM, and motor control features, supporting easy integration and educational purposes.
1,350.00 EGP
Buy NowCytron MOTION-2350-PRO RP2350 Advanced Robotics Controller for Beginners
The Cytron MOTION-2350-PRO RP2350 is an advanced robotics controller designed to simplify robotics for beginners. It offers a variety of features to support both learning and creating complex robotic systems. With flexible power input options and various ports, users can easily interact with motors, servos, and sensors.
The controller integrates multiple functionalities, including PWM control, I2C, SPI, and UART communication protocols. It supports both analog and digital inputs, which makes it versatile for various projects, while also providing feedback via LED indicators. This board is designed to make integration with motors and external modules straightforward.
This controller is ideal for learners as it not only offers powerful features but also provides an easy-to-use interface with a simple connection layout. Beginners can use it for hands-on learning and get real-time feedback from the system, aiding their understanding of robotics and embedded systems.
Features:
- Powered by external DC or LiPo batteries with adjustable voltage output for servos.
- USB-C port for easy programming and powering.
- GPIO, PWM, I2C, SPI, and UART support for flexible interfacing.
- Compatible with external modules like Qwiic, STEMMA QT, and Grove through maker ports.
- Integrated motor driver and status LEDs for motor operation feedback.
- Includes programmable RGB LEDs and a piezo buzzer for user interactions.
- Motor test buttons for quick motor functionality checks.

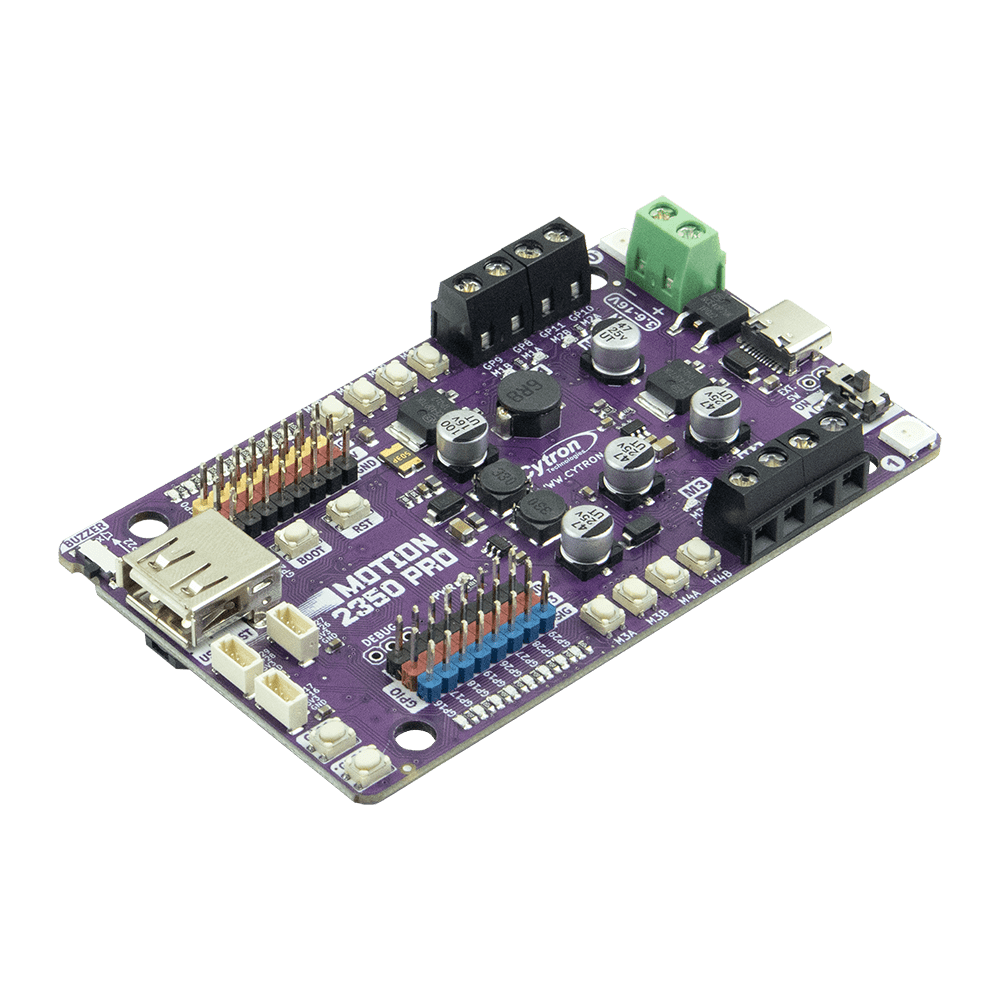

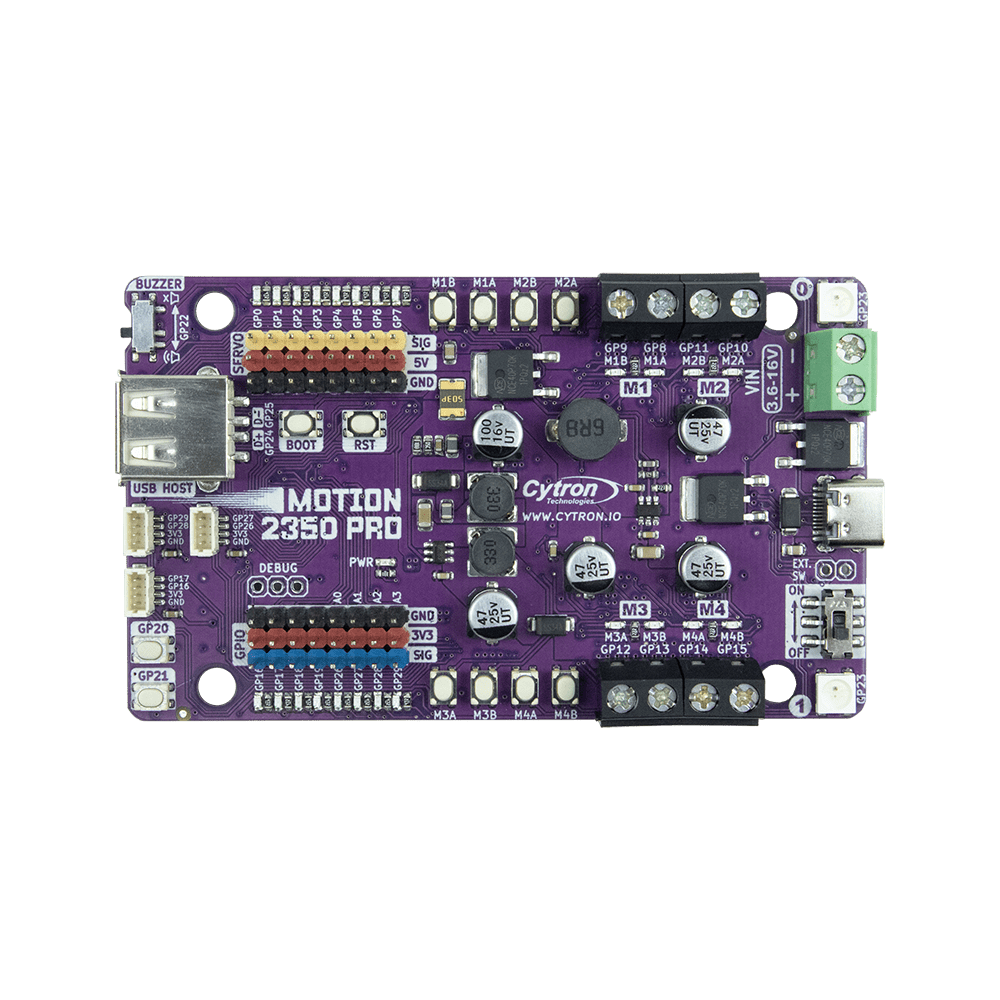

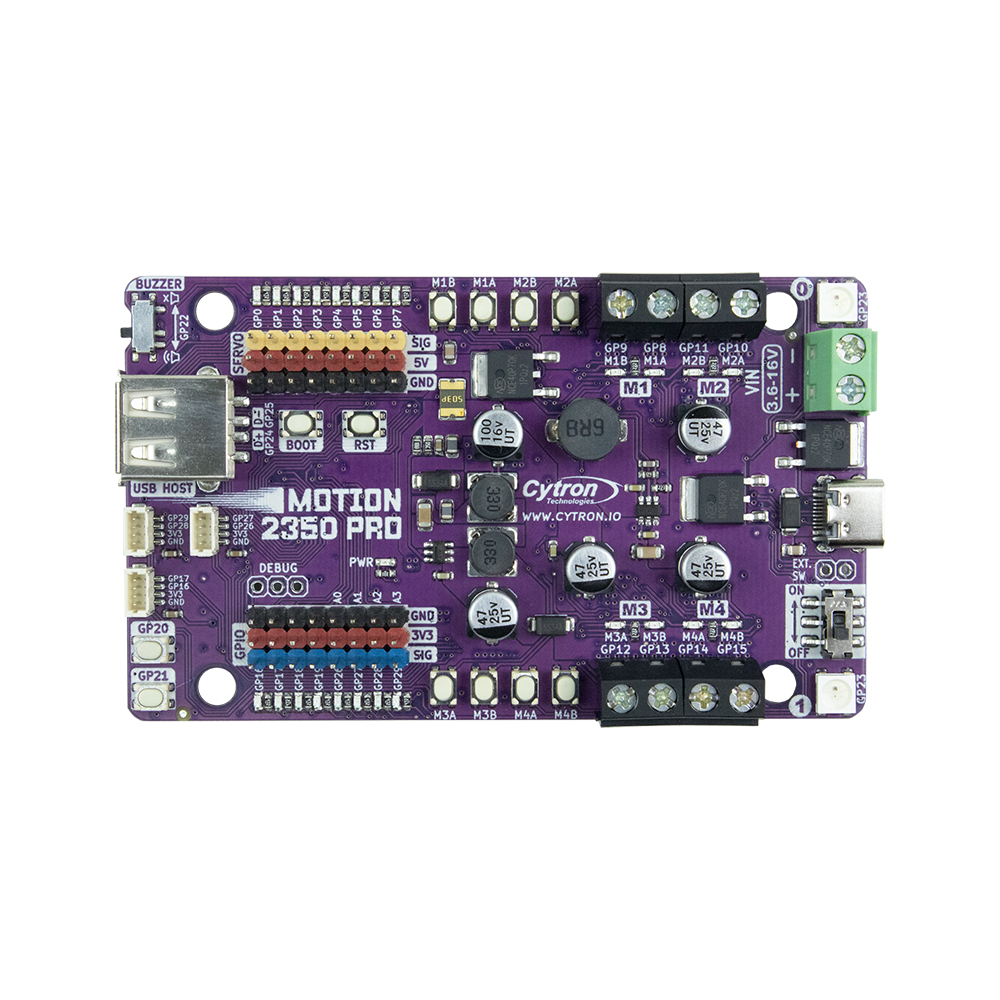

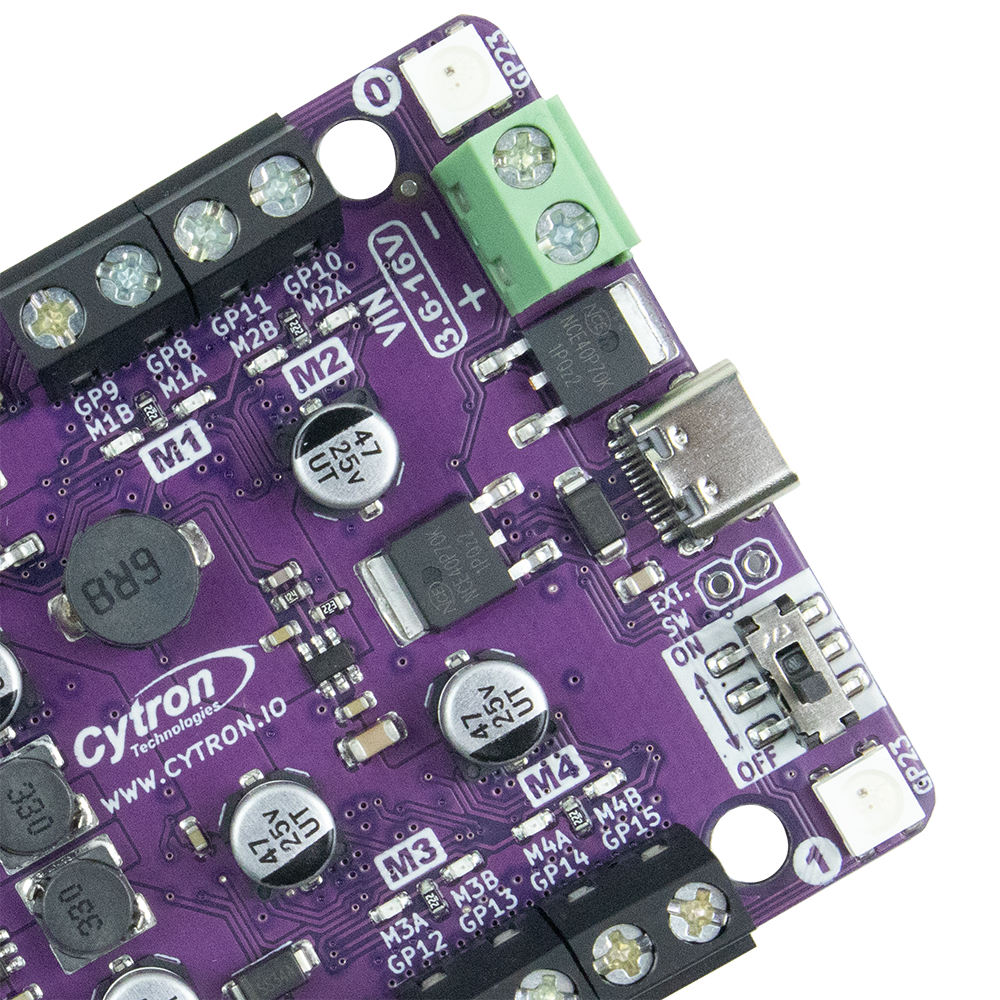

Board Layout:
| Function | Description | ||||||

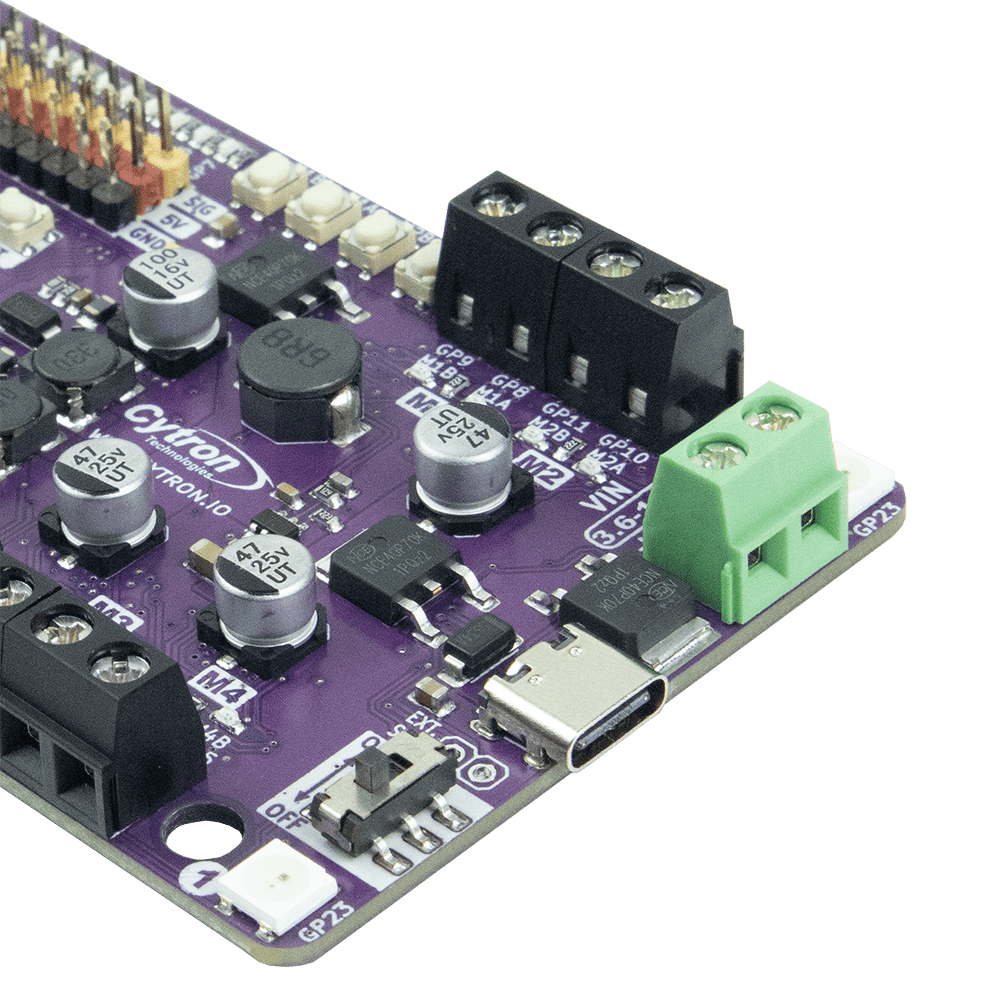

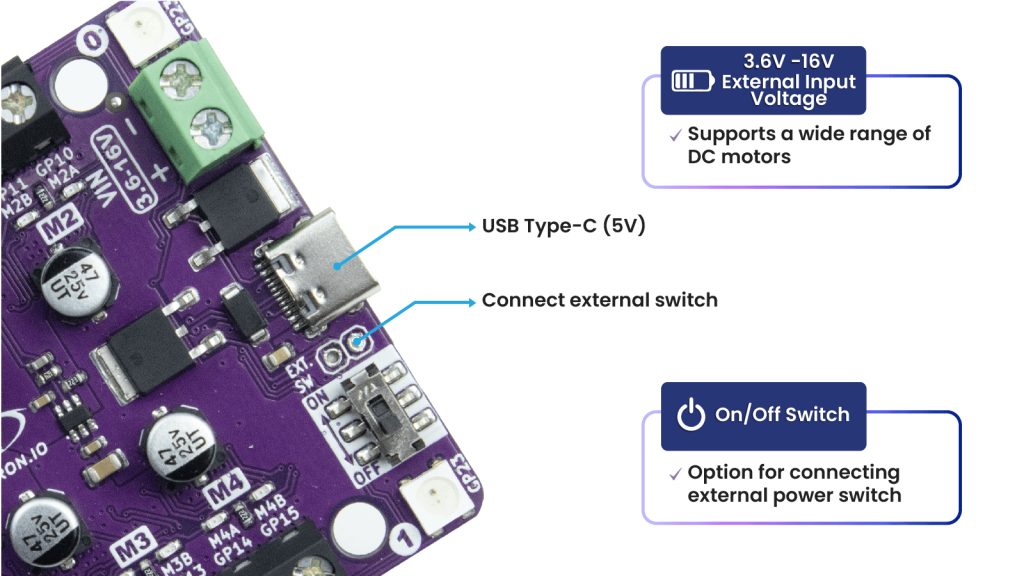

| Power Input | Terminal for external 3.6V – 16V DC power input. Can be powered up with external LiPo or 4x AA batteries. |
||||||
| On/Off Switch | Turn On/Off the power. | ||||||
| Ext. On/Off Switch | Header for external On/Off switch. The onboard switch must be in Off position to use the external switch. |
||||||
| 5V Supply | Power output for external servos. Controlled by an automatic voltage selector, the output of 5V supply depends on the input from the VIN.
|
| USB-C | Used for upload programs from PC. Used to power up the board. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| GPIO/Servo Status LEDs | LED indicator for digital IO. Turn on when the IO state is high. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||

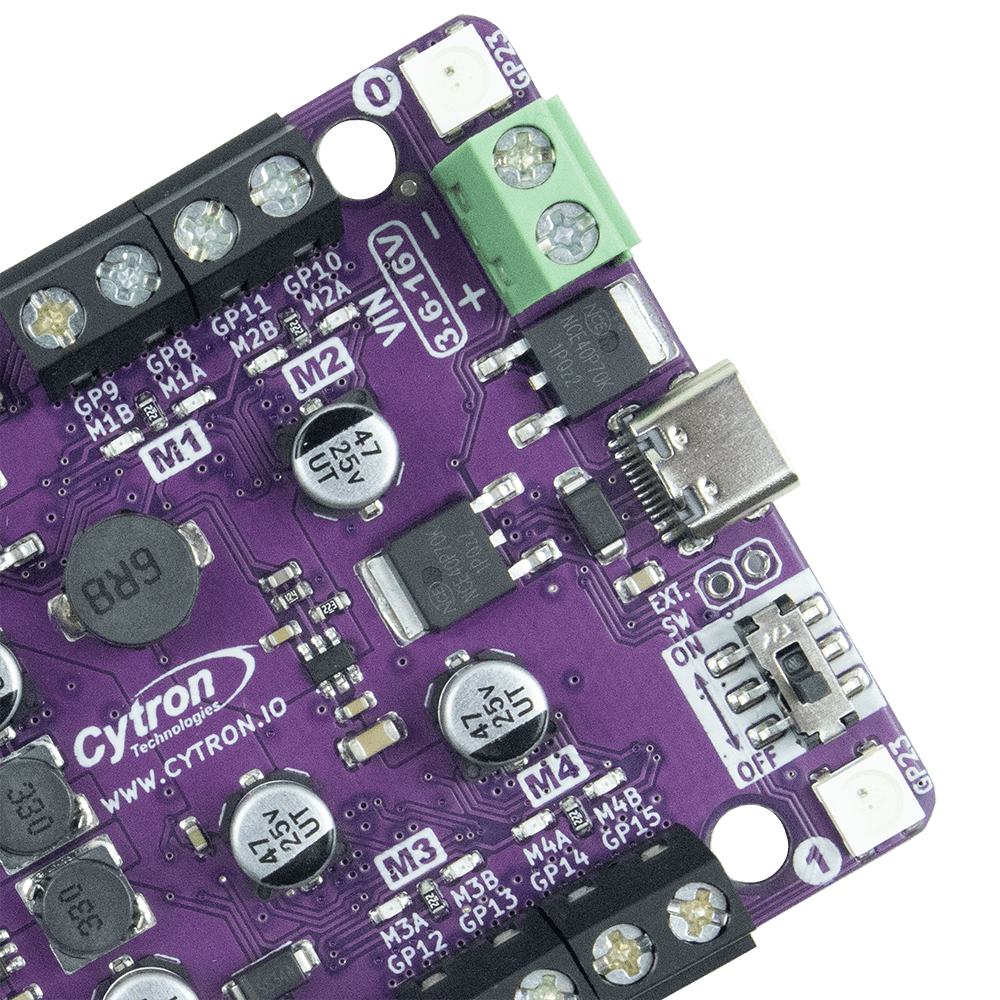

| GPIOs Breakout | Arranged in color-coded GVS format. With 3.3V power output for each GPIO.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||

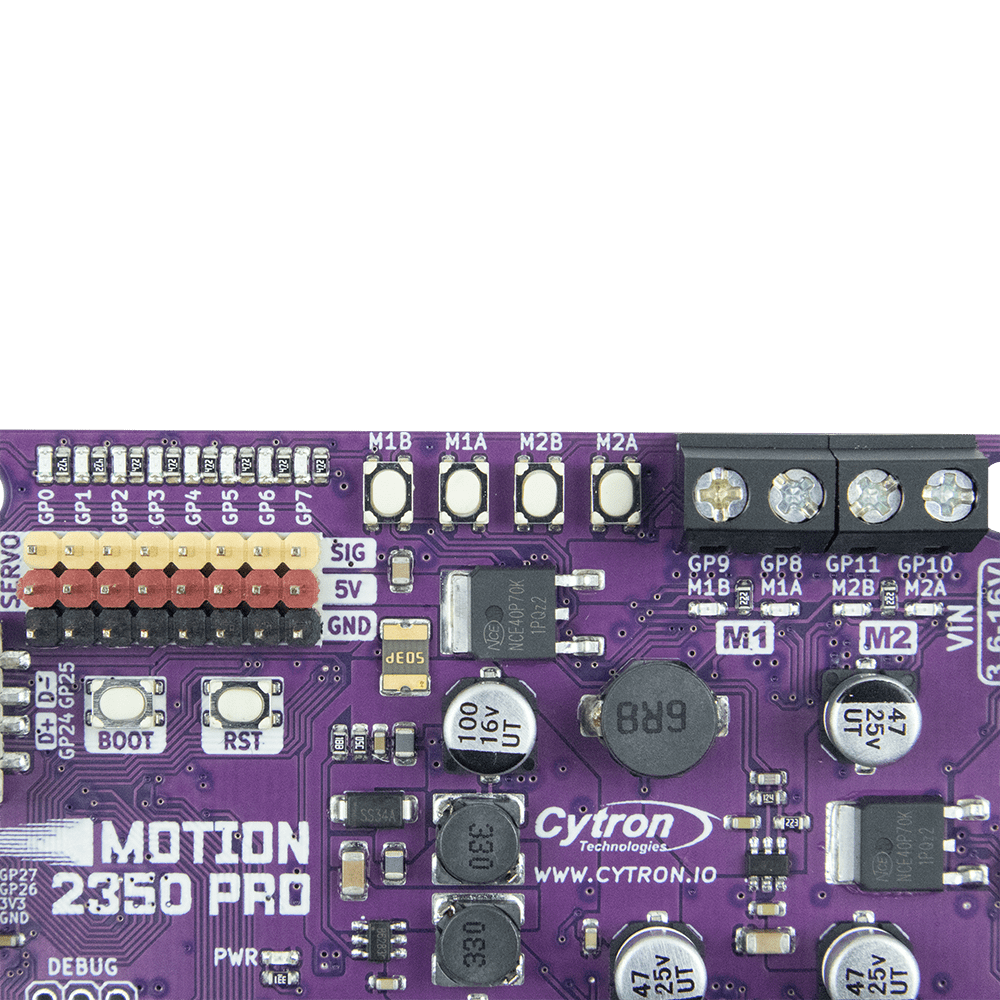

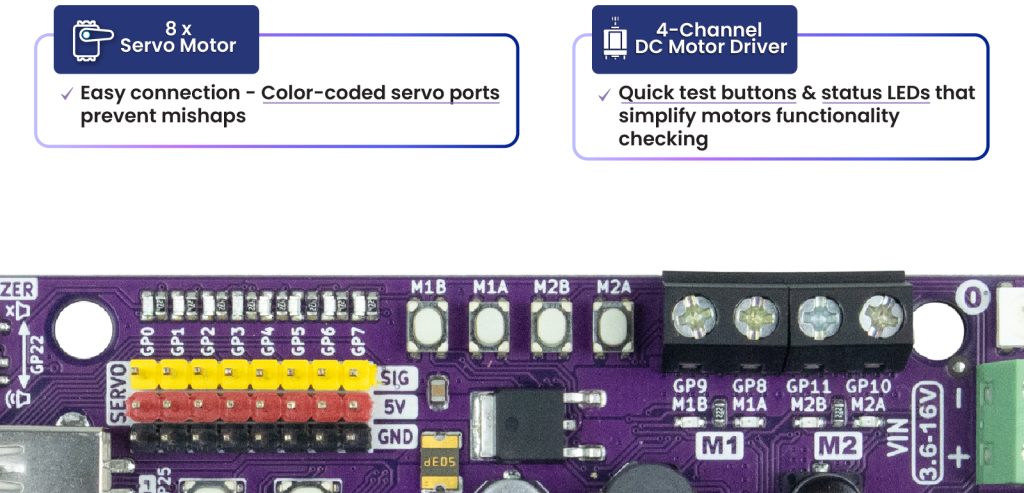

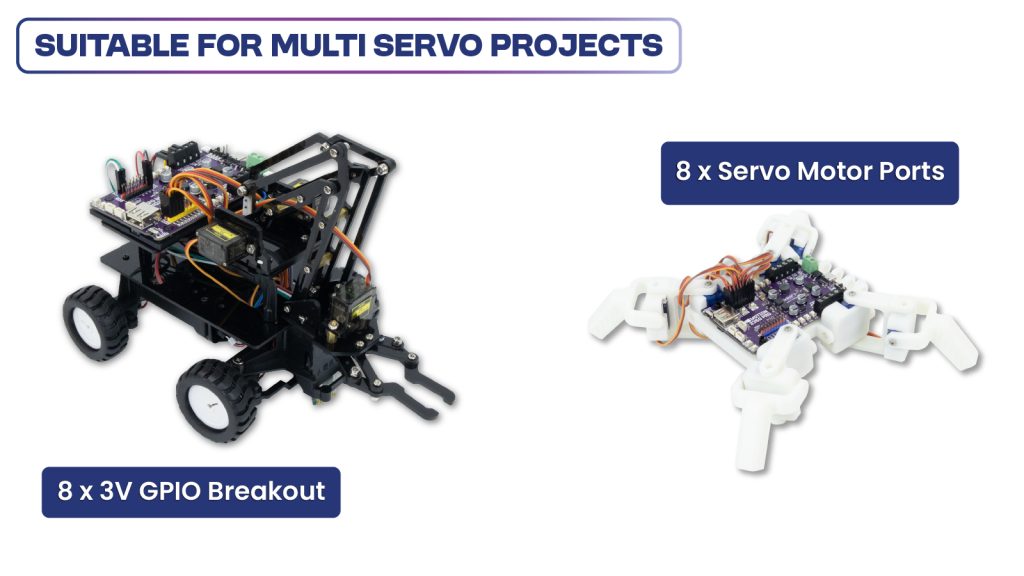

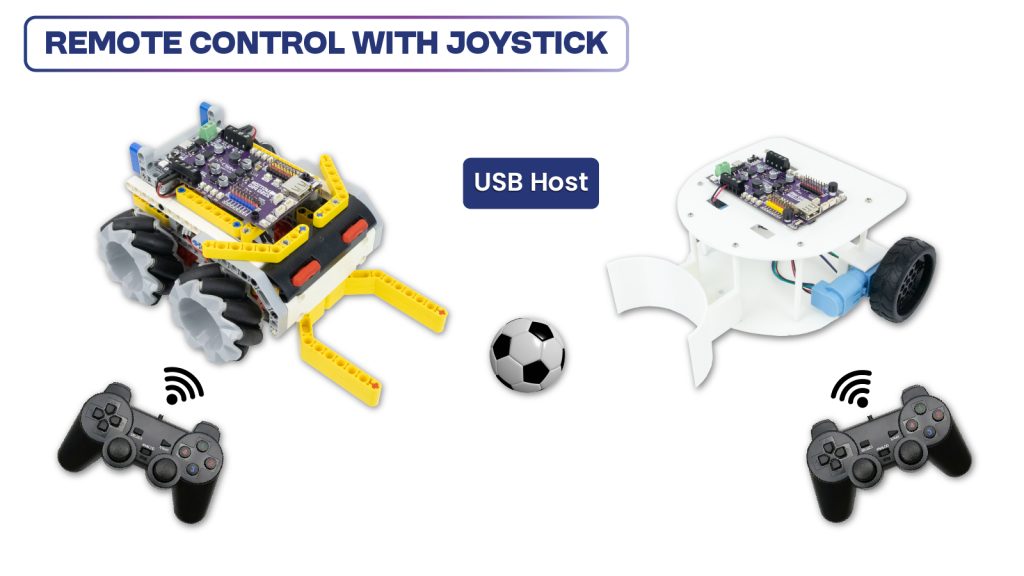

| Servo Ports | Connectors for 8 x RC servo motors. Signal is connected to GP0, GP1, GP2, GP3, GP4, GP5, GP6, and GP7. For 5V, please refer to the 5V Supply section. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maker Ports | JST-SH 4-Ways Connector for external modules. Compatible with Qwiic, STEMMA QT and Grove (Via Conversion Cable). These pins are available on Maker Ports: GP16, GP17, GP26, GP27, GP28 and GP29. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motor Test Buttons | Press to test the functionality of the motor driver. Motor will run at full speed. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motor Terminals | Connect to the motor terminal. Motor voltage at full speed is equal to power source voltage. Motor direction is dependent on the polarity. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motor Status LEDs | Turn on when the motor is running. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB Host | USB type A port for USB Host. The connected pins to USB data transmission on this port are:
|
| RGB LEDs | User programmable WS2812B RGB LEDs, NeoPixel compatible. Connected to GP23. |

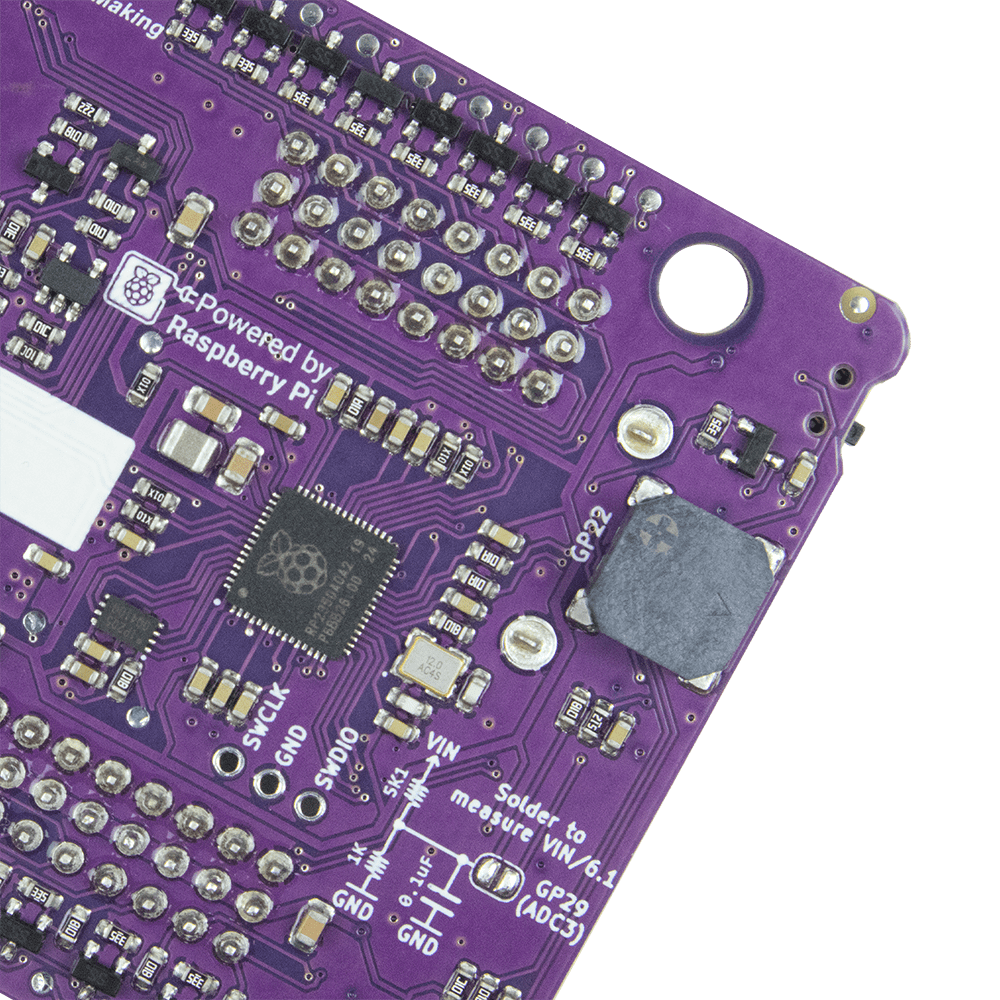

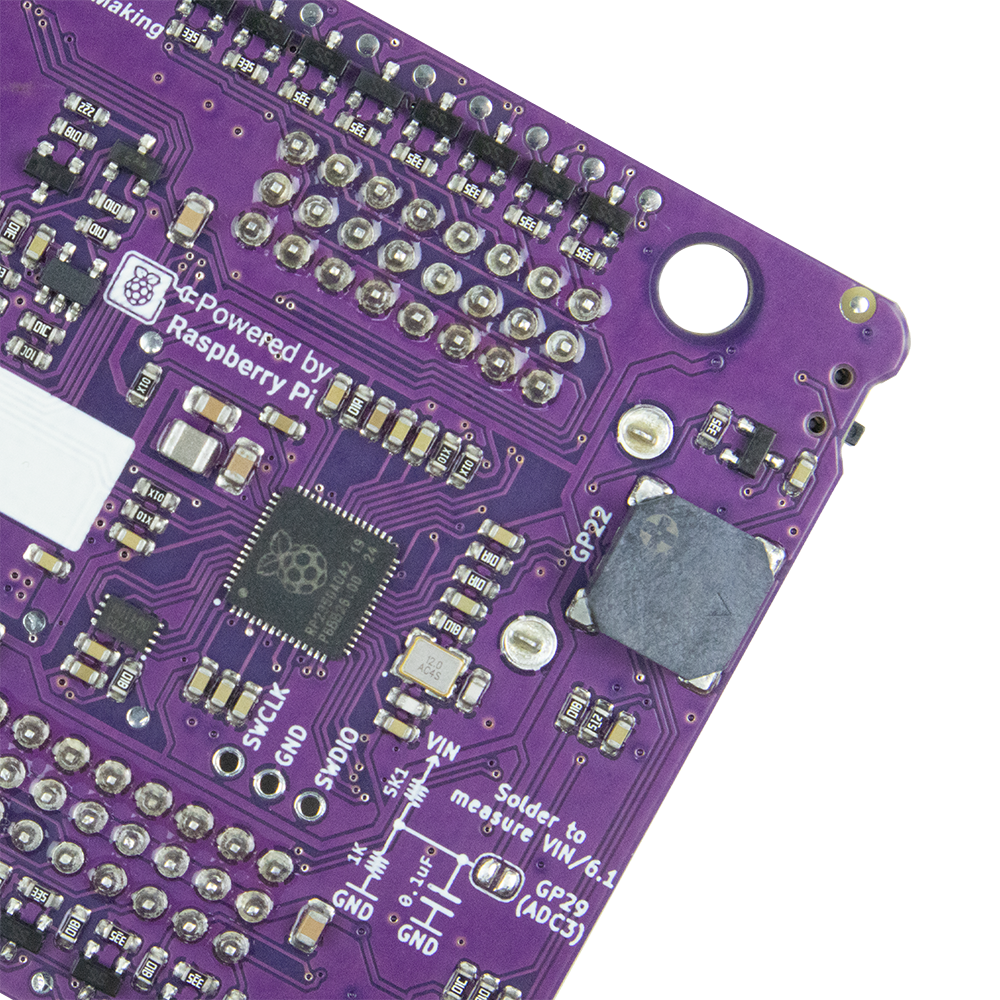

| Piezo Buzzer | Can be used to play tone or melody. Connected to GP22. |
| Buzzer Mute Switch | Used to mute the piezo buzzer. |

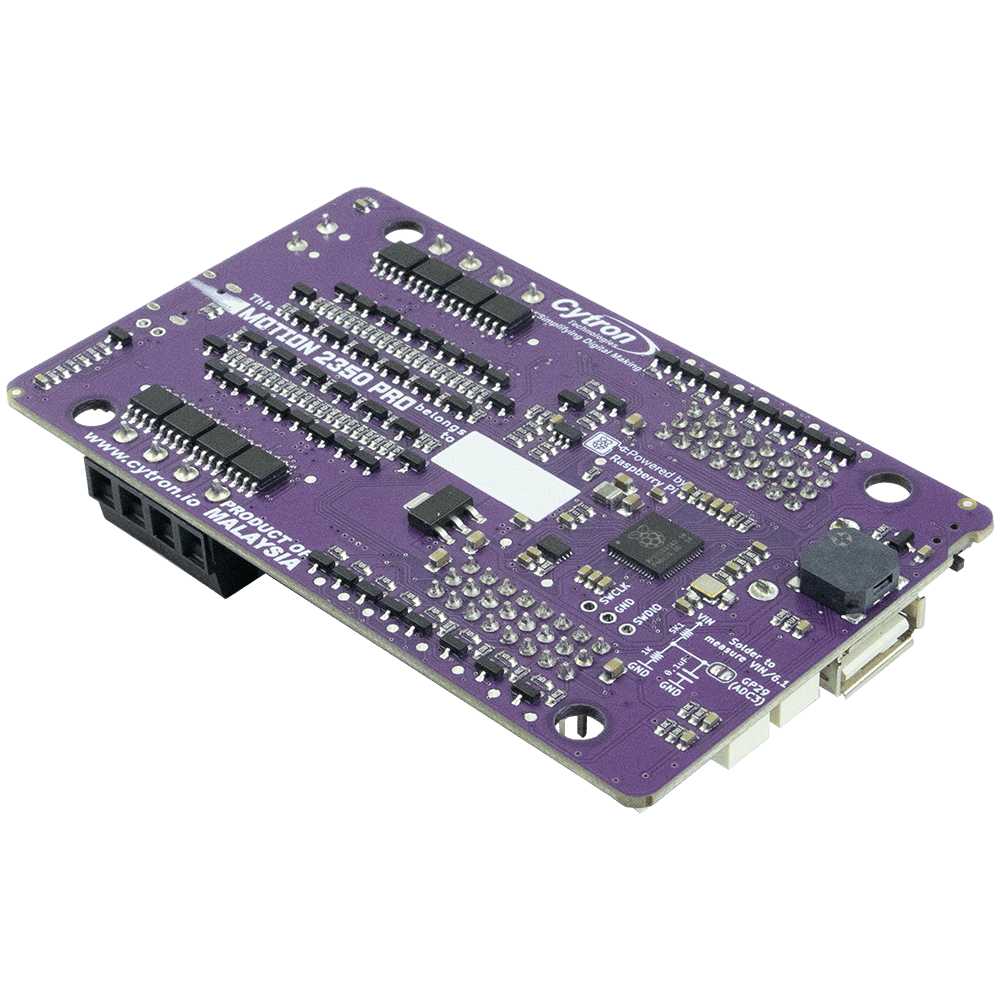

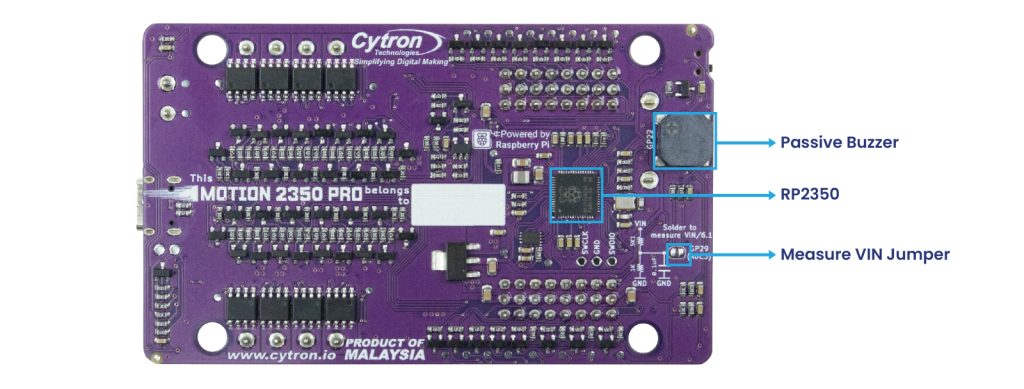

| Measure VIN Jumper | Solder this jumper to measure VIN on the GP29(ADC3) |
Specifications:
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Power Input Voltage (USB or VIN): | 3.6 | 16 | V |
| Digital Input Voltage (Low Level): | -0.3 | 0.8 | V |
| Digital Input Voltage (High Level): | 2.0 | 3.6 | V |
| Digital Output Voltage (Low Level): | 0 | 0.5 | V |
| Digital Output Voltage (High Level): | 2.6 | 3.3 | V |
| Analog Input Voltage: | 0 | 3.3 | V |
| Maximum DC Motor Current (Continuous): | – | 3 | A |
| Maximum DC Motor Current (Peak): | – | 5 | A |
| Total +3.3V Output Current: | – | 200 | mA |
| Total +5V Output Current: | – | 3 | A |
| Operating Temperature: | -20 | 85 | °C |

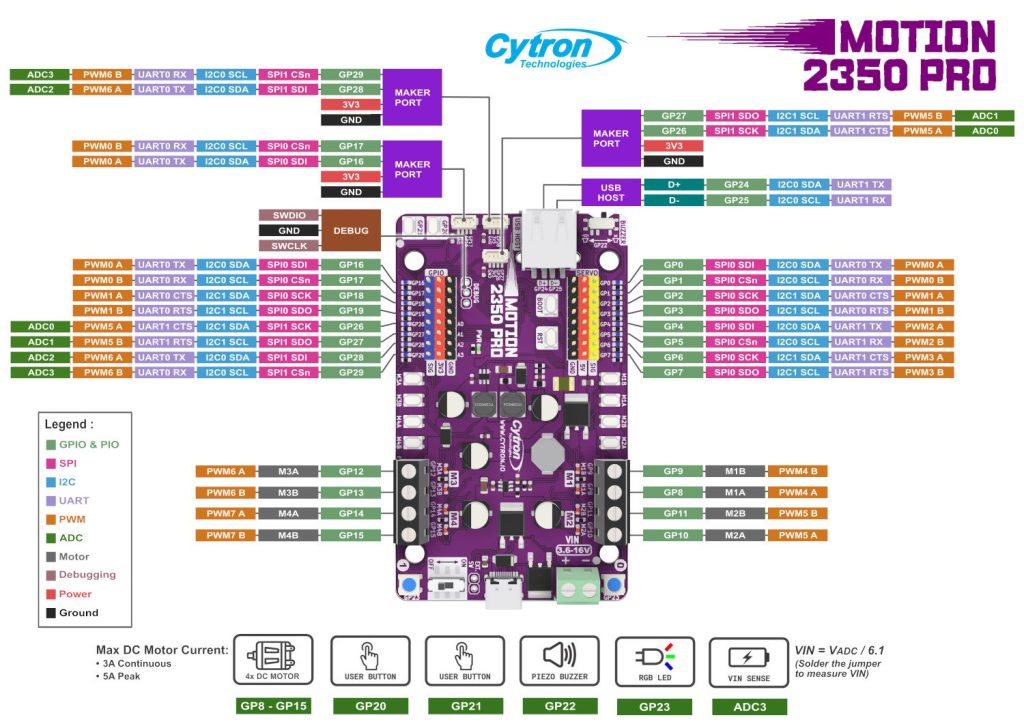

Pinout Diagram:
Dimension:
Applications:
- Robotics Education.
- Automated Systems.
- Prototyping and Rapid Development.
- Motor Control Systems.
- IoT Projects.
Connection Diagram for Brushed DC Motor:
Package Contents:

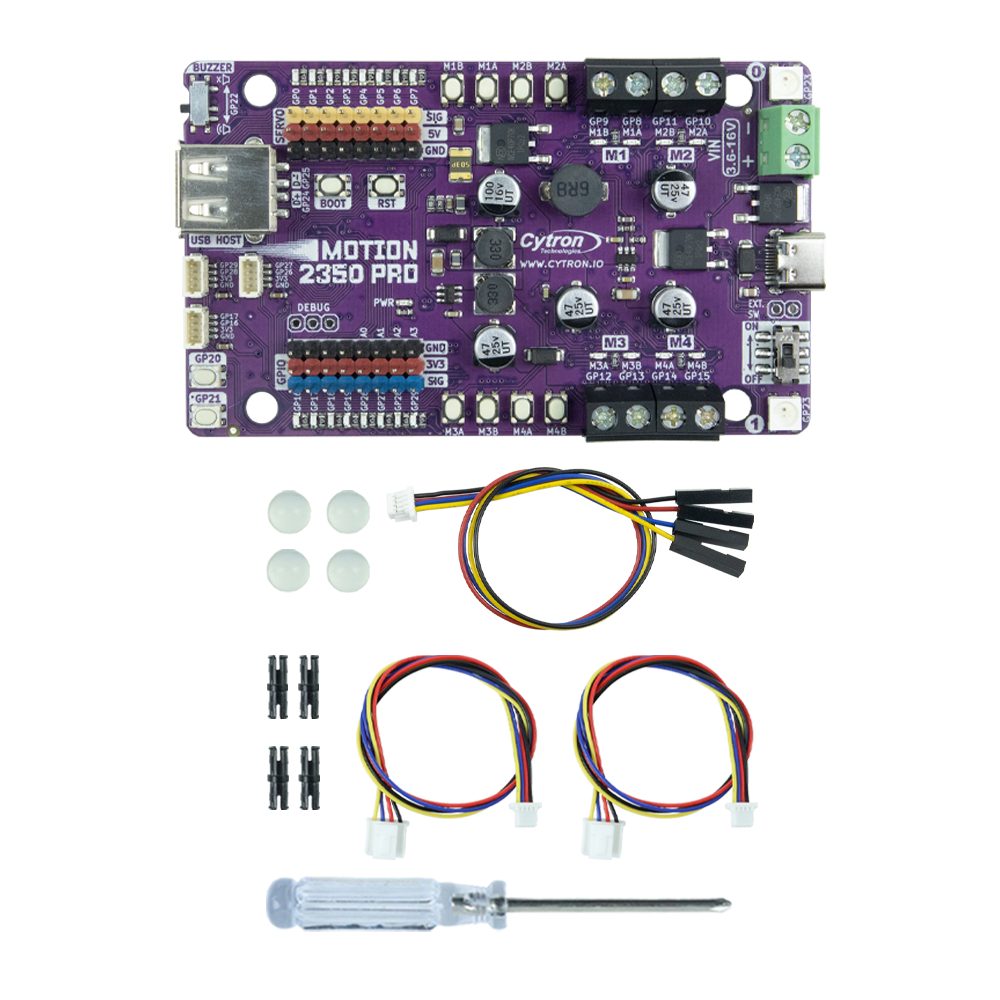

- 1x MOTION 2350 Pro
- 1x STEMMA QT / Qwiic JST SH 4-pin Cable with Female Sockets (150mm)
- 2x Grove to JST-SH Cable (200mm)
- 1x Set of Silicone Bumper
- 4x Building Block Friction Pin
- 1x Mini Screwdriver
| Datasheet: | MOTION-2350-PRO Datasheet | ||||||
| Certificate: | UKCA-EMC | UKCA RoHS | FCC | CE RoHS | CE-EMC | UK Declaration of Conformity | EU Declaration of Conformity |
| Official Reseller: | Makers Electronics |
| Weight | 70 g |
|---|---|
| Dimensions | 60 × 110 × 30 mm |
