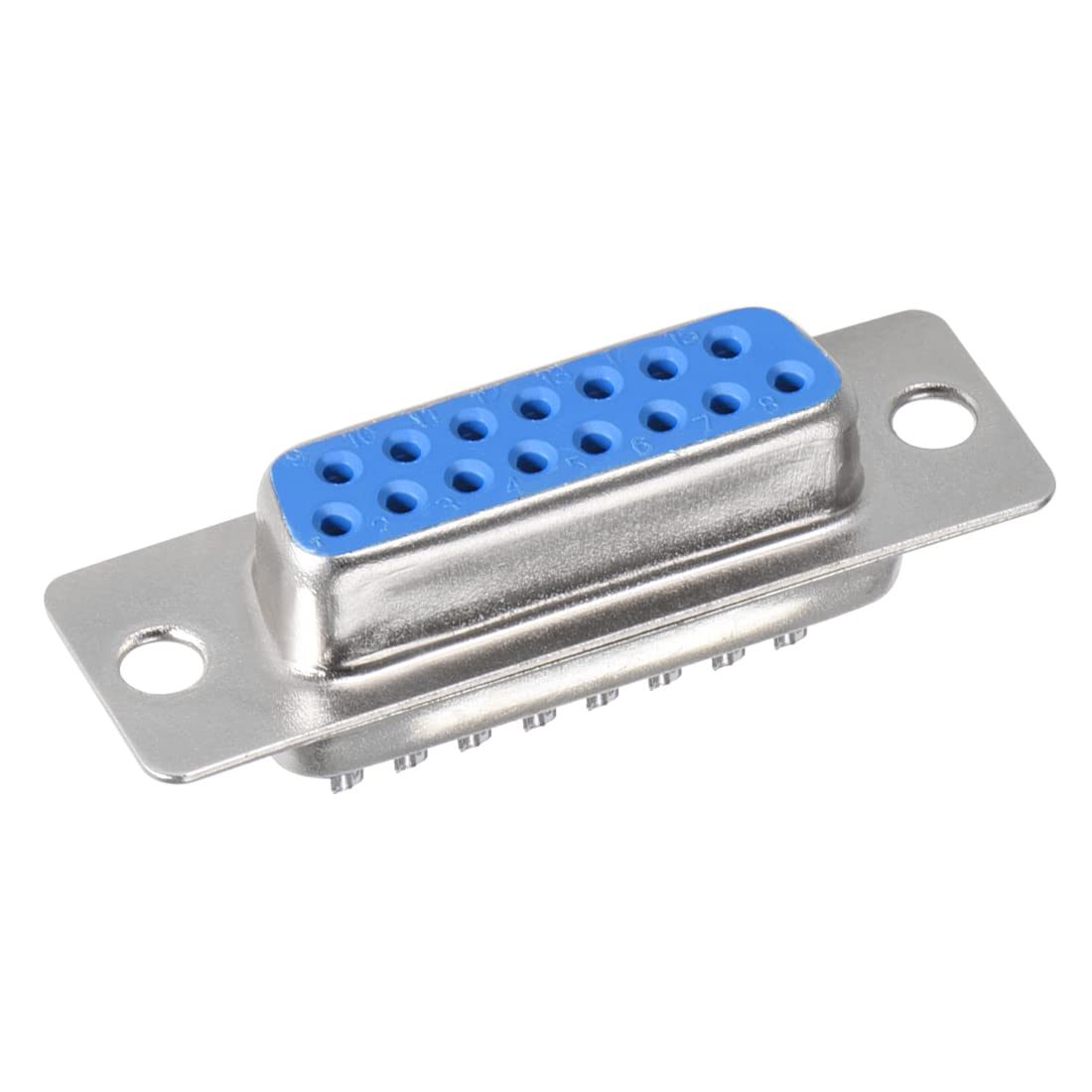

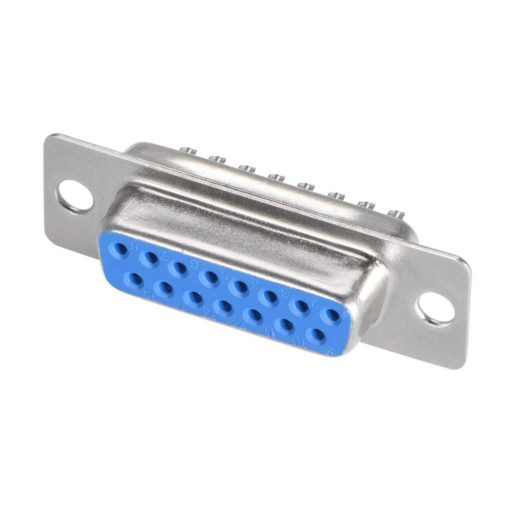

The DA15 Wire Solder Female D-Type Connector is a robust and reliable connector designed for a variety of industrial, commercial, and electronic applications. Featuring 15 precision-engineered female contacts arranged in two rows within a durable D-shaped metal shell, this connector ensures accurate alignment and a secure connection. The solder cup termination design allows for a strong and stable attachment of wires, making it ideal for applications requiring customized wiring solutions. The metal shell, typically made from steel with tin plating, provides exceptional mechanical strength and effective shielding against electromagnetic interference (EMI), ensuring signal integrity in high-noise environments.
Features:
- 15-Hole, 2-Row female D-Type connector.
- Standard DB25 form factor for universal compatibility.
- Provides a secure and long-lasting connection with wire solder terminations.
- Reliable performance in demanding environments.
- Compatible with various devices and systems.
- Cost-effective for custom cable assemblies and projects.
- Wire solder terminations for secure and durable wire connections.
- Copper-plated contacts for enhanced conductivity and corrosion resistance.
- Nickel-plated steel shell for durability and EMI protection to reduce signal interference.
- Pre-drilled mounting holes for easy installation on plastic cover.
Specifications:
- Connector Model: DA15
- Connector Type: Wire Solder D-Type
- Gender of Connector: Female
- Body Orientation: Straight
- Termination Type: Solder cup
- Mounting Style: Cable Assembly
- Number of Holes: 15 Hole
- Number of Rows: 2 Row
- Contact Material: Copper
- Shell Material: Nickel-plated steel
- Rated Voltage : 300V AC/DC
- Rated Current: Up to 5A per contact
- Insulation Resistance: 1000 MΩ min
- Operating Temperature: -55°C to 125°C
Applications:
- Industrial Equipment.
- Networking.
- Computing.
- Medical Devices.
- Audio/Video Equipment.
- Test & Measurement.
