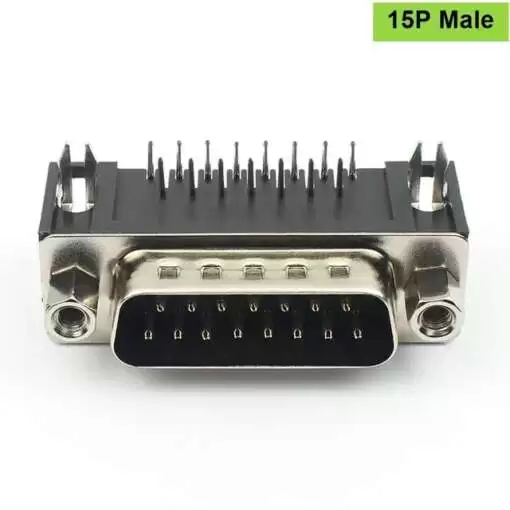

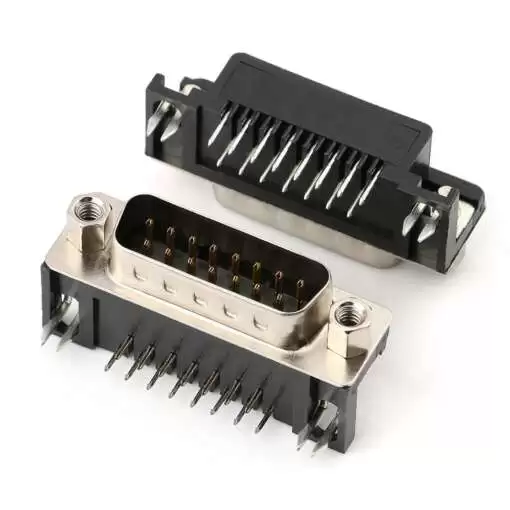

DA15 Right Angle PCB Solder Male D-type Connector 15 Pin 2 Row

The DA15 Right Angle PCB Solder Male D-type Connector features a 15-pin design arranged in two rows, providing secure and reliable electrical connections in compact spaces. The right-angle mounting allows it to be soldered to the PCB in a perpendicular orientation, optimizing space and ensuring a neat installation in systems with tight layouts. This male D-type connector is often used for data transmission, industrial control, and communication systems that require a high-density, durable connection.

Features:

• The D-type form factor ensures compatibility with a wide range of other equipment and connectors, making it ideal for diverse applications.
• The 15 pins in 2 rows provide a wide range of connectivity options, supporting various signal, data, and power applications.
• Right-Angle Design allows for a compact footprint and easy routing of PCB traces, perfect for space-constrained designs.
• Designed for use as a male connector to be soldered into the PCB, ensuring a secure and stable connection.
• Made from high-quality materials metal contacts and plastic housing, designed to withstand mechanical stresses and electrical usage.
• The soldering process ensures strong and reliable electrical contacts, which minimize the chances of loose or intermittent connections.

Specifications:

• Connector Model: DA15
• Connector Type: PCB Solder D-Type
• Gender of Connector: Male
• Body Orientation: Right-Angle
• Termination Type: Solder cup
• Mounting Style:  Through Hole (PCB soldering)
• Number of Pins: 15 Pin
• Row Configuration: 2 Row
• Housing Material: Metal with plastic insulation
• Contact Material: Brass
• Shell Material: Nickel-plated steel

Applications:

• Telecommunications.
• Industrial Control Systems.
• Audio/Video Equipment.
• Test Equipment.
• Computer Peripherals.
• Medical Devices.
