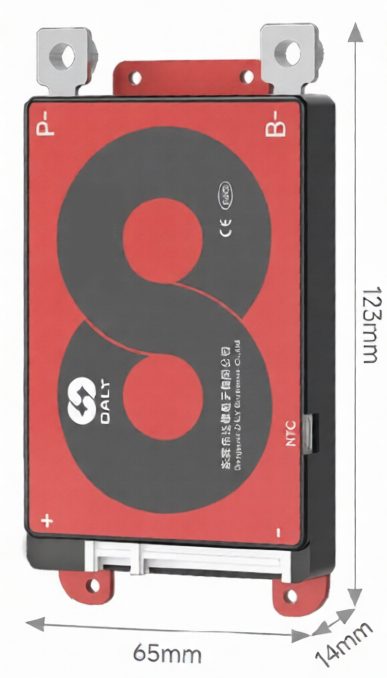

DALY Lithium-ion Battery Charger Protection Module (BMS) 20S 60A 72V
The DALY Module (BMS) 20S 60A 72V Lithium-ion Battery Management System (BMS) is a professional battery protection module engineered for 72V lithium-ion battery packs consisting of twenty cells connected in series. It continuously monitors individual cell voltages, charging and discharging currents, and battery temperature to ensure safe, stable, and efficient battery operation. The integrated protection circuitry safeguards the battery pack against overcharging, over-discharging, overcurrent conditions, and short circuits, helping to maintain battery health and system reliability.
Designed for demanding electric mobility and energy storage applications, this BMS incorporates an automatic cell balancing function that equalizes cell voltages throughout the battery pack. Proper balancing improves battery efficiency, maximizes available capacity, extends battery lifespan, and enhances overall performance. Its durable construction makes it suitable for electric vehicles, renewable energy systems, industrial equipment, and custom battery pack projects.
Features:
- Designed for 20-cell lithium-ion battery packs.
- Integrated cell balancing function.
- Overcharge protection.
- Over-discharge protection.
- Overcurrent protection.
- Short-circuit protection.
- Temperature monitoring support.
- Automatic fault recovery.
- High reliability and long operational life.
- Improves battery performance and lifespan.
- Suitable for high-power battery systems.
- Compact and durable design.
- Optimized for electric mobility and energy storage applications.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Battery Management System Module (BMS) |
| Battery Chemistry | Lithium-ion |
| Battery Configuration | 20S (20 Cells in Series) |
| Nominal Battery Voltage | 72V |
| Continuous Discharge Current | 60A |
| Charge Current | 60A |
| Balancing Function | Supported |
| Temperature Sensor | NTC Supported |
| Protection Functions | Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature |
| Connection Type | Common Port |
| Mounting Type | External Battery Pack Installation |
Pinout:
Main Power Connections
| Terminal | Function |
|---|---|
| B- | Battery Pack Negative |
| P- | Charge/Discharge Negative |
| B1 | Cell 1 Positive |
| B2 | Cell 2 Positive |
| B3 | Cell 3 Positive |
| B4 | Cell 4 Positive |
| B5 | Cell 5 Positive |
| B6 | Cell 6 Positive |
| B7 | Cell 7 Positive |
| B8 | Cell 8 Positive |
| B9 | Cell 9 Positive |
| B10 | Cell 10 Positive |
| B11 | Cell 11 Positive |
| B12 | Cell 12 Positive |
| B13 | Cell 13 Positive |
| B14 | Cell 14 Positive |
| B15 | Cell 15 Positive |
| B16 | Cell 16 Positive |
| B17 | Cell 17 Positive |
| B18 | Cell 18 Positive |
| B19 | Cell 19 Positive |
| B20 (B+) | Cell 20 Positive / Battery Pack Positive |
| P+ | Common Positive Terminal |
Applications:
- Electric bicycles.
- Electric scooters.
- Electric motorcycles.
- Electric vehicles.
- Portable power stations.
- Solar energy storage systems.
- UPS backup systems.
- Lithium-ion battery packs.
- Industrial battery-powered equipment.
- Robotics and automation systems.
- Renewable energy storage systems.
- DIY battery pack projects.
- Backup power solutions.
Package Included:
- 1 × DALY Module (BMS) Lithium-ion Battery Management System.
- 1 × NTC Temperature Sensor.
- 2 × Balance Wire Harness.
- 2 x Screws.
- 2x Pre-Terminated battery link cable.
