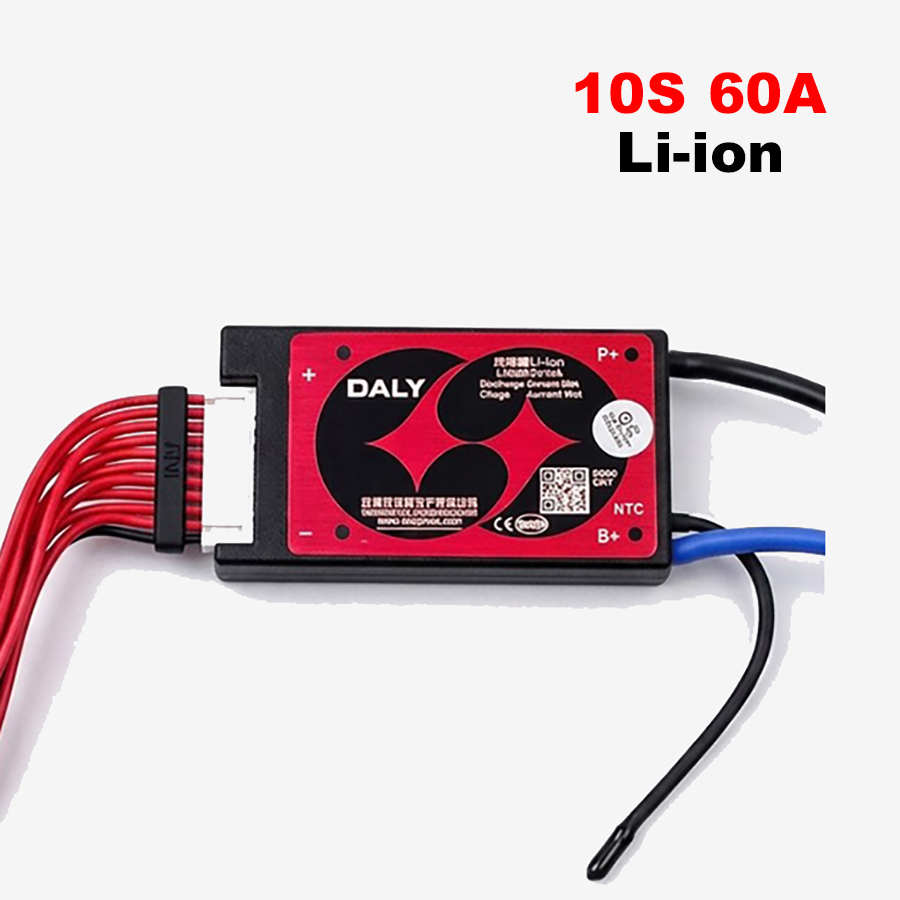

DALY Lithium Battery Charger Protection Module (BMS) 10S 60A 36V
The DALY 10S 60A Lithium-ion Module (BMS) Management System is a high-performance protection module engineered for 36V lithium battery packs consisting of ten cells connected in series. It continuously monitors cell voltages, charging and discharging currents, and battery temperature to ensure safe and reliable battery operation. The integrated protection circuitry helps prevent battery damage caused by overcharging, over-discharging, overcurrent conditions, and short circuits.
Designed for electric bicycles, scooters, solar energy storage systems, portable power stations, and industrial battery packs, this BMS features an automatic balancing function that maintains consistent voltage levels across all cells. Proper balancing improves battery efficiency, maximizes available capacity, extends battery lifespan, and enhances overall system reliability. Its durable construction makes it suitable for both commercial and DIY battery pack applications.
Features:
- Designed for 10-cell lithium battery packs.
- Integrated cell balancing function.
- Overcharge protection.
- Over-discharge protection.
- Overcurrent protection.
- Short-circuit protection.
- Temperature monitoring support.
- Automatic fault recovery.
- High reliability and long operational life.
- Improves battery performance and longevity.
- Suitable for high-power battery systems.
- Compact and durable design.
- Optimized for energy storage and electric mobility applications.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Battery Management System Module (BMS) |
| Battery Chemistry | Lithium-Ion |
| Battery Configuration | 10S (10 Cells in Series) |
| Nominal Battery Voltage | 36V |
| Continuous Discharge Current | 60A |
| Charge Current | 60A |
| Balancing Function | Supported |
| Temperature Sensor | NTC Supported |
| Protection Functions | Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature |
| Connection Type | Common Port |
| Mounting Type | External Battery Pack Installation |

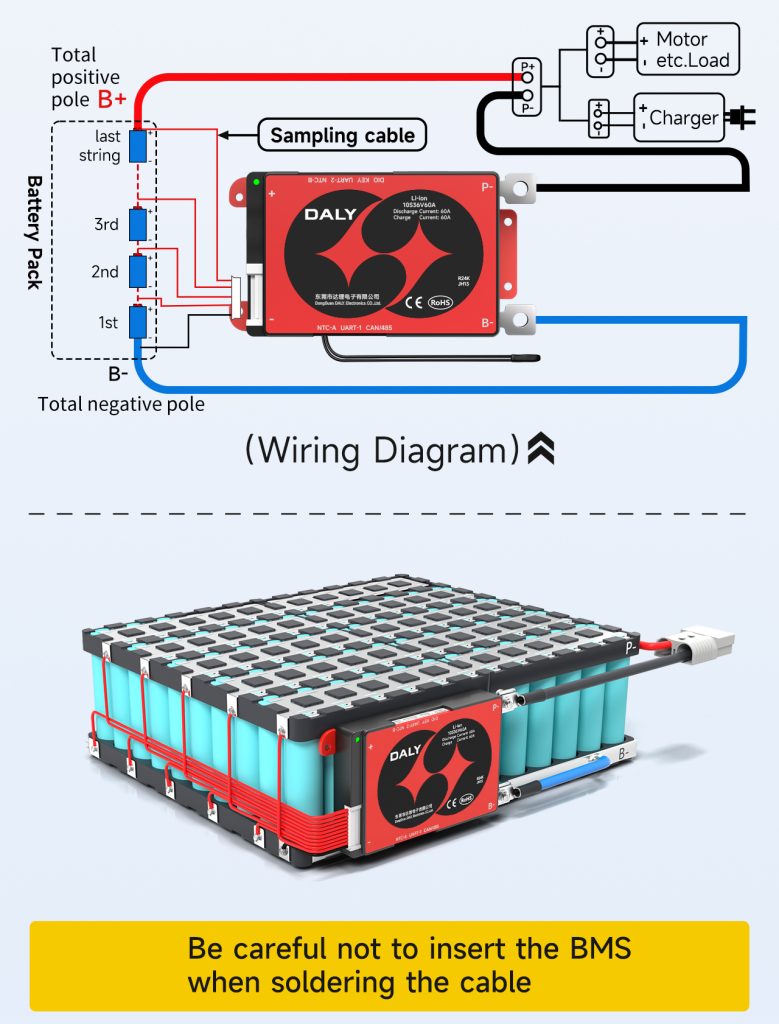

Pinout:
Main Power Connections
| Terminal | Function |
|---|---|
| B- | Battery Pack Negative |
| P- | Charge/Discharge Negative |
| B1 | Cell 1 Positive |
| B2 | Cell 2 Positive |
| B3 | Cell 3 Positive |
| B4 | Cell 4 Positive |
| B5 | Cell 5 Positive |
| B6 | Cell 6 Positive |
| B7 | Cell 7 Positive |
| B8 | Cell 8 Positive |
| B9 | Cell 9 Positive |
| B10 (B+) | Cell 10 Positive / Battery Pack Positive |
| P+ | Common Positive Terminal |
Applications:
- Electric bicycles.
- Electric scooters.
- Electric skateboards.
- Portable power stations.
- Solar energy storage systems.
- UPS backup systems.
- Lithium battery packs.
- Robotics and automation systems.
- Industrial battery-powered equipment.
- DIY battery pack projects.
- Emergency power systems.
- Energy storage solutions.
Package Included:
- 1 × DALY 10S 60A Lithium Battery Management System.
- 1 × Balance Wire Harness.
- 1 × NTC Temperature Sensor.
