DB25 Female Breakout Module to Screw Terminal + Pin Header

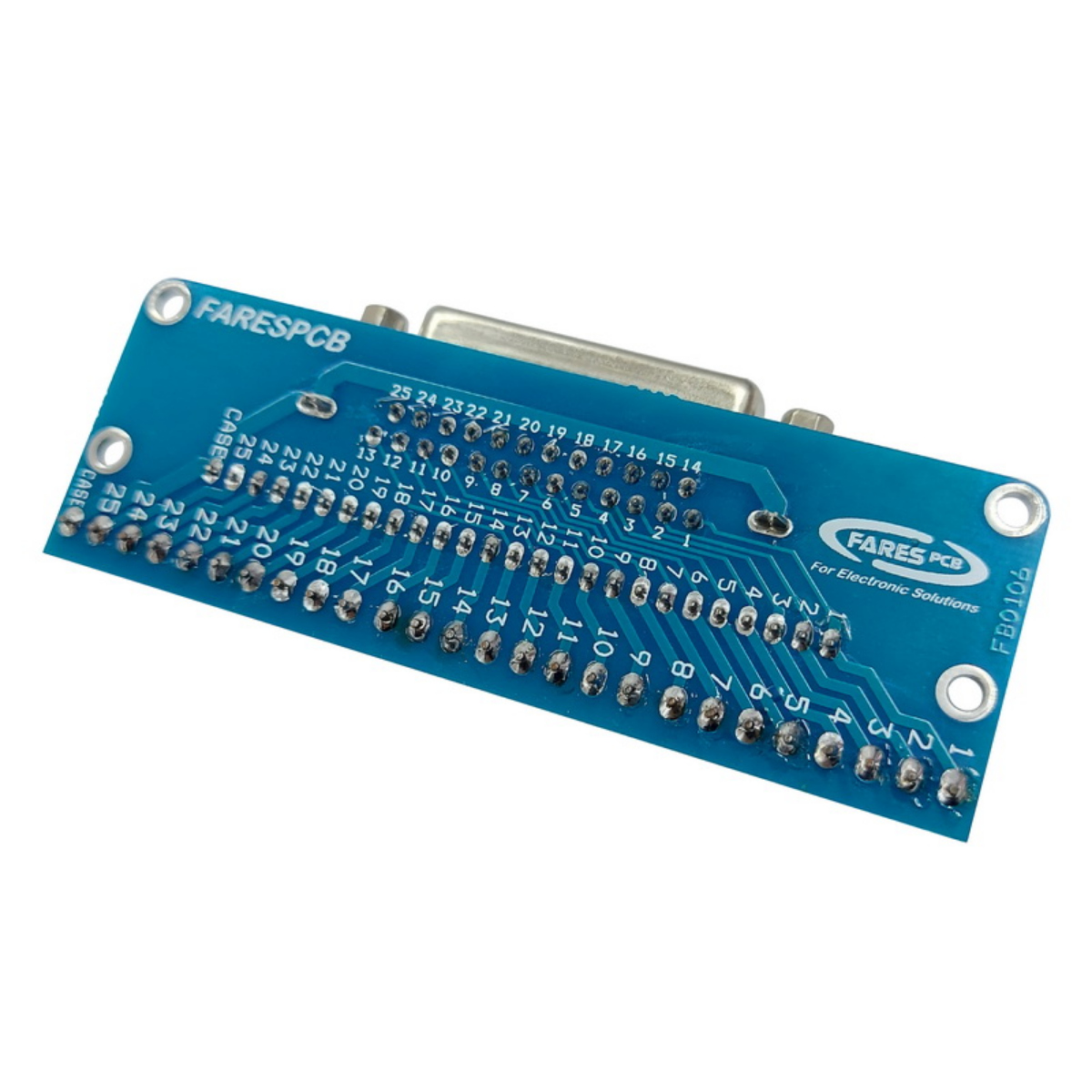

The DB25 Female Breakout Module to Screw Terminal + Pin Header is a compact PCB breakout that converts a standard DB25 female connector into both 2.54 mm pin-header and 3.5 mm screw-clamp terminal outputs. The board is silk-screened with pin numbers for error-free wiring, includes four Ø4 mm mounting holes for secure installation, and is suitable for panel mounting, test fixtures, serial interfaces and rapid prototyping where convenient, solderless connections are required.
Features
- DB25 pins are routed to pin headers and screw clamp terminals.
- Both terminals are labeled according to the DB25 pin number to which they are routed.
- Pin header pitch distance 2.54mm.
- Screw terminal pitch distance 3.5mm.
- Four (Ø 3.5mm) mounting holes for easy installation.
- Dimensions: 93 X 33 X 15mm.
Specifications
| Parameter | Value |
|---|---|
| Connector Type | DB25 female to pin header & screw terminals |
| Pin Header Pitch | 2.54mm |
| Screw Terminal Pitch | 3.5mm |
| Mounting Holes | 4 × Ø4mm |
| Dimensions | 93mm x 33mm x 15mm |
Applications
- Solderless RS-232 serial wiring and DB25 interface breakout for test benches and prototypes.
- Panel mounting for serial ports, printer or legacy parallel interfaces.
- Quick wiring and debugging of DB25 signals using screw terminals or breadboard headers.
- Educational labs and field service fixtures requiring clearly labelled, easy-to-connect DB25 access.
Package Contents
- 1× DB25 Female Breakout Module to Screw Terminal + Pin Header.
