DB25 Female D-Type Connector 25-Pin 2 Row
DB25 breakout board that converts a 25-pin connector into clearly labeled PCB solder pads for easy wiring and signal access.
25.00 EGP
Buy NowDB25 Female D-Type Connector 25-Pin 2 Row

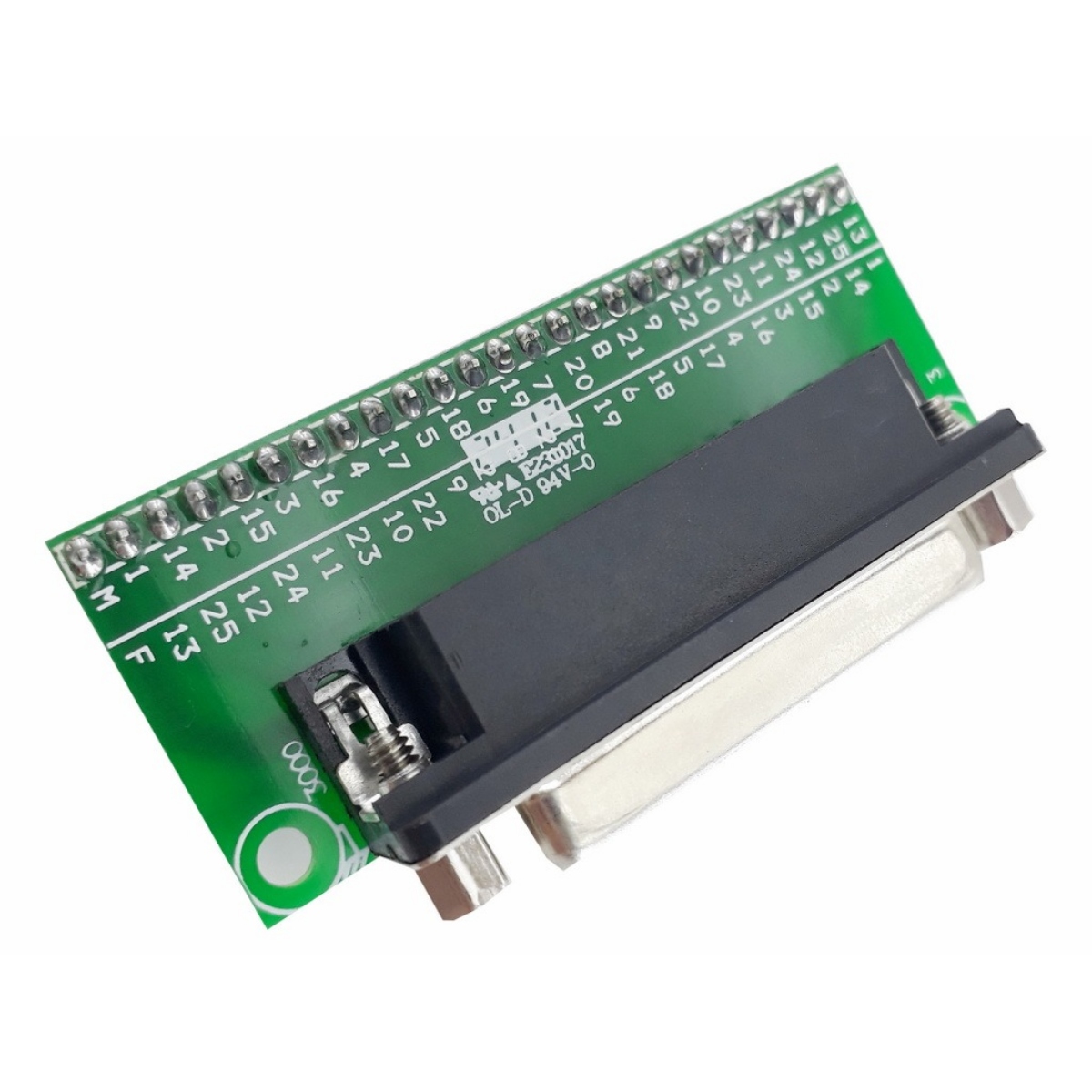

The DB25 25-Pin D-Type Breakout Board is a practical PCB adapter designed to expose all DB25 connector pins into individually labeled solder pads. It allows users to easily connect wires, ribbon cables, or custom circuits without directly soldering onto the D-Sub connector itself. This makes it ideal for prototyping, maintenance, testing, and industrial wiring applications.
The board features a standard DB25 connector mounted securely to a durable FR-4 PCB. Each of the 25 pins is clearly marked on the board for fast identification, reducing wiring errors during installation. It is commonly used in CNC controllers, parallel port interfaces, PLC systems, and communication equipment where organized and reliable signal breakout is required.
Features:
- All 25 pins individually accessible.
- Standard D-type interface.
- Clearly printed pin numbering on PCB.
- Durable FR-4 circuit board.
- Compact and easy to mount.
- Ideal for prototyping and testing.
- Secure mechanical connector mounting.
- Suitable for industrial and lab environments.
Specifications:
| Parameter | Value |
|---|---|
| Connector Type: | D-Type |
| Number of Pins: | 25 |
| Connector Gender: | Female |
| PCB Material: | FR-4 |
| Mounting Style: | Through-hole connector |
| Pin Access Type: | Solder Pads |
| Shield: | Metal Shell |

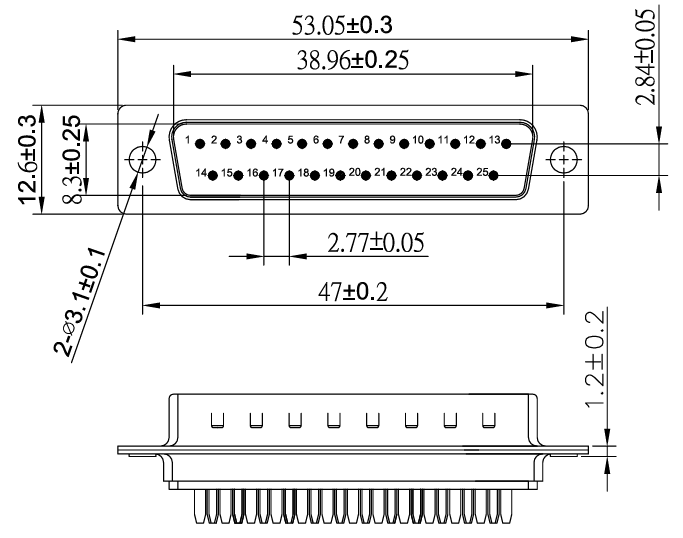

Pinout:
The Connection between DB25 and board
| Left Row | Right Row |
|---|---|
| 13 | 1 |
| 25 | 14 |
| 12 | 2 |
| 24 | 15 |
| 11 | 3 |
| 23 | 16 |
| 10 | 4 |
| 22 | 17 |
| 9 | 5 |
| 21 | 18 |
| 8 | 6 |
| 20 | 19 |
| 7 | 7 |
| 19 | 20 |
| 6 | 8 |
| 18 | 21 |
| 5 | 9 |
| 17 | 22 |
| 4 | 10 |
| 16 | 23 |
| 3 | 11 |
| 15 | 24 |
| 2 | 12 |
| 14 | 25 |
| 1 | 13 |
| M | F |
Applications:
- CNC controller interfaces.
- Parallel port connections.
- PLC and industrial automation systems.
- RS-232 custom wiring.
- Test and measurement equipment.
- Robotics and embedded system projects.
- Signal debugging and development boards.
Packages:
- 1x DB25 Female D-Type Connector 25-Pin 2 Row.
