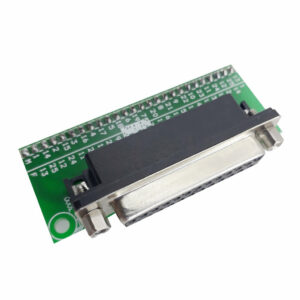

DB25 Female to Pin Header
DB25 female socket on PCB to header suitable for breadboard test applications or holed PCB’s with pin number printed on the PCB
Key Features of DB25 Female to 2.54mm Header Adapter:
- This connector is the same as you find on some boards, Computer and similar small form factor equipment
- These adapters ship with a strip of male header pins that soldered on. The header soldered on the bottom of the adapter you want to plug this into a breadboard.
- Pin header pitch distance 2.54mm.
- The board has 2 M3 size holes that can be used for mounting if desired.
- Mounting holes for easy installation.
Module Connections
Technical Specifications
Connector Type | DB25 Female | |
Termination Style | 1 x 26 header | |
Dimensions | L x W (PCB) | 66 x 27mm |
