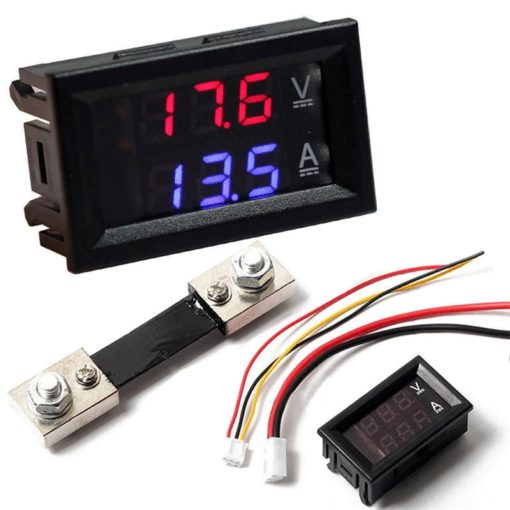

Specifications:
- Operating voltage:DC 4 ~ 30V
- Measure voltage: DC 0 ~ 100V
- Minimum resolution(V): 0.1V
- Measure current :100A (require external shunt)
- Minimum resolution(A): 0.1A
- Operating current: <20mA

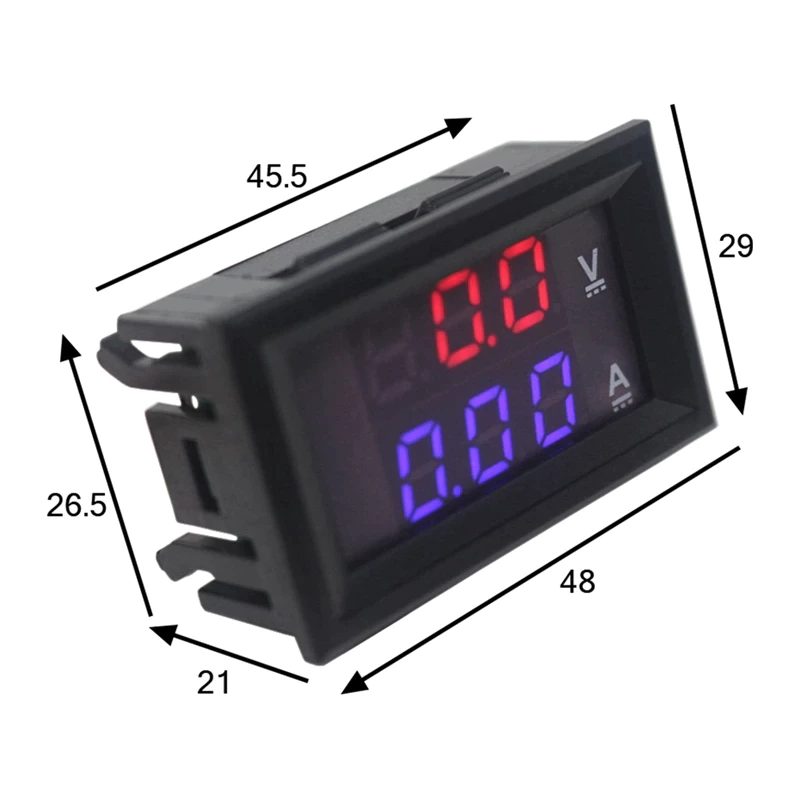

- Display: three 0.28″ LED digital tube
- Display color: Red and Blue (two-color display)
- Refresh rate: about 300mS / times
- Measure accuracy: 1% (± 1 digit)
- Operating temperature: -10 to 65° c
- Operating Humidity: 10 to 80% (non-condensing)
- Working pressure: 80 to 106 kPa
- Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

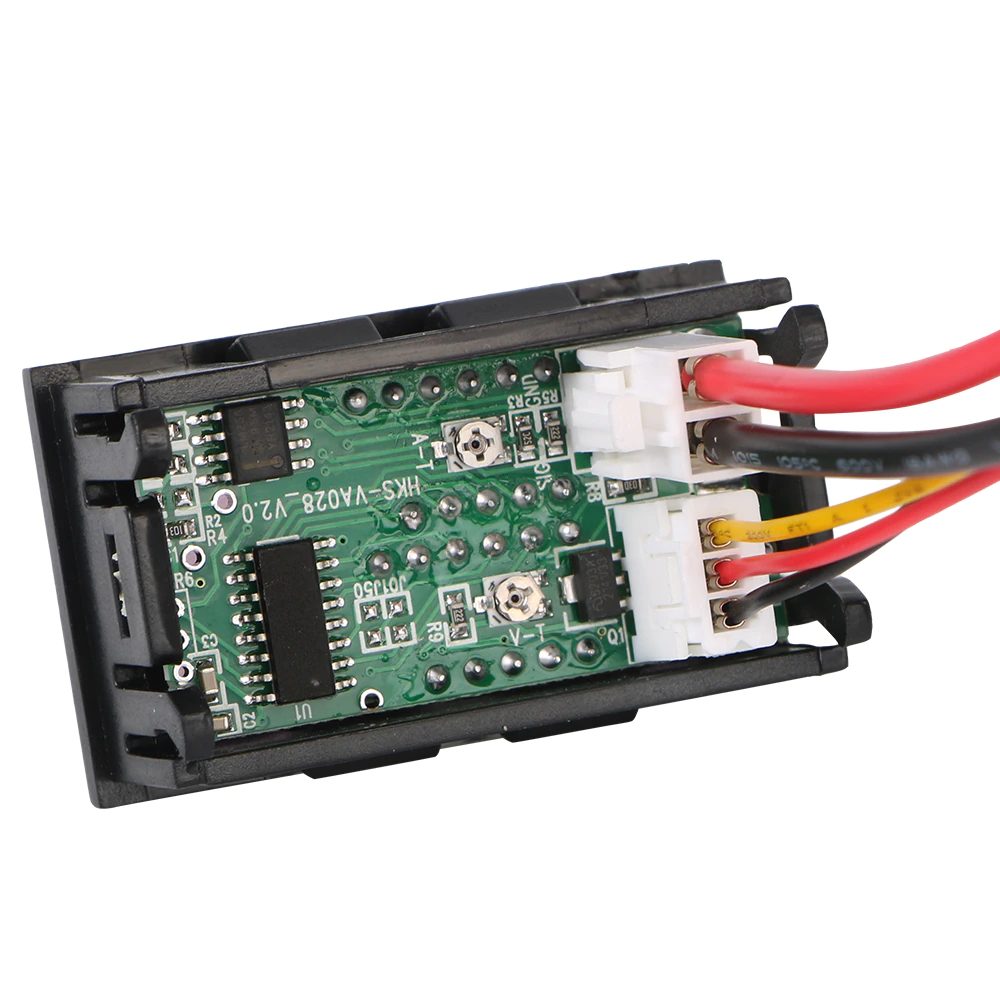

- Wiring:
- Black line (thick): vacant or buck circuit (module) negative
- Red line (thick): power supply+
- Black line (thin): COM, common measuring
- Red line (thin): PW+, measuring terminal voltage input positive
- Yellow line (thin): IN+, current input+

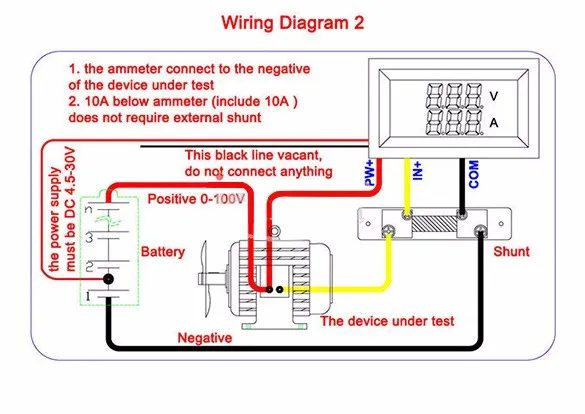

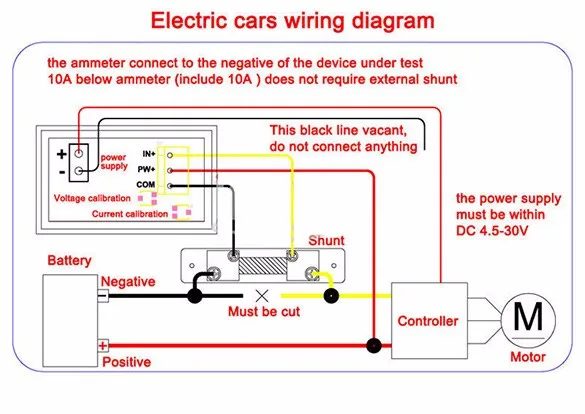

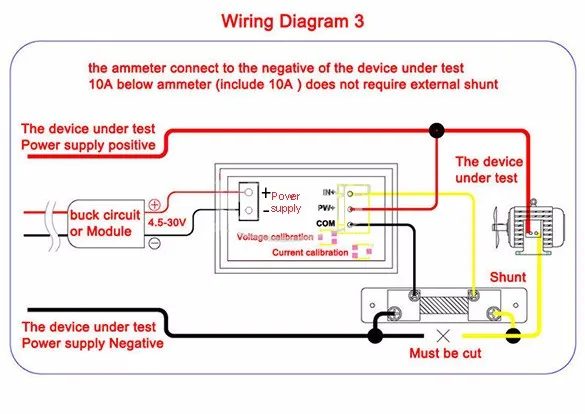

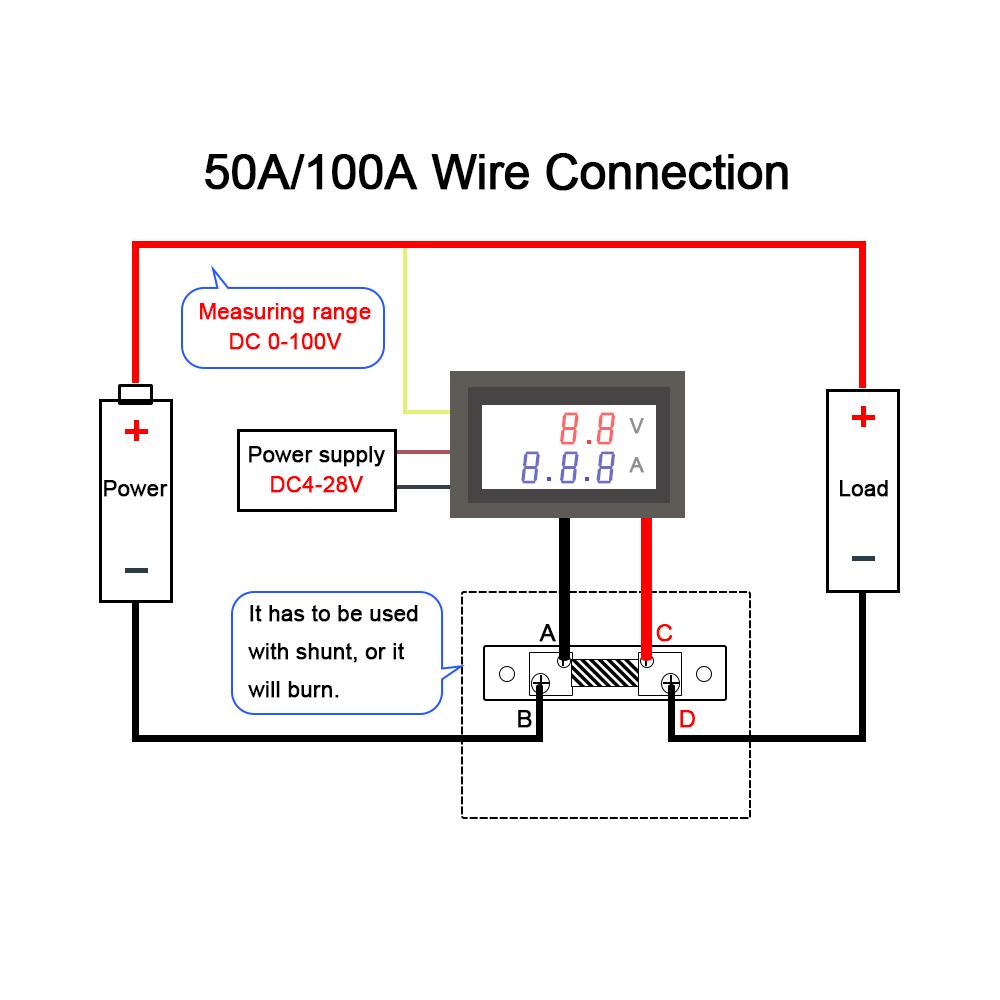

(Please refer to the wiring diagrams for more details)
Diagram:
