Description:

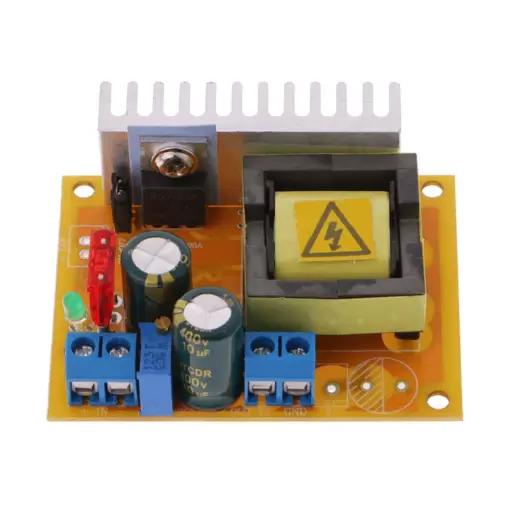

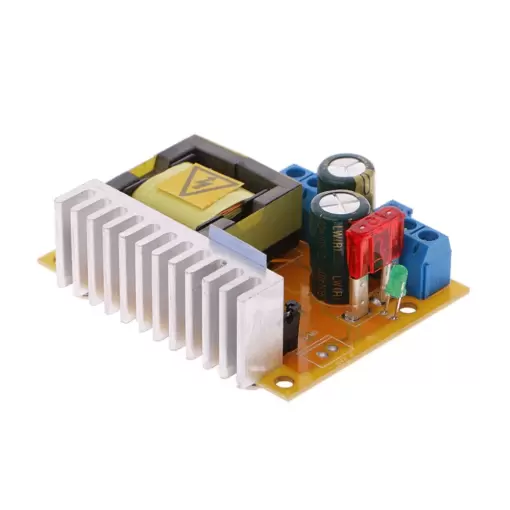

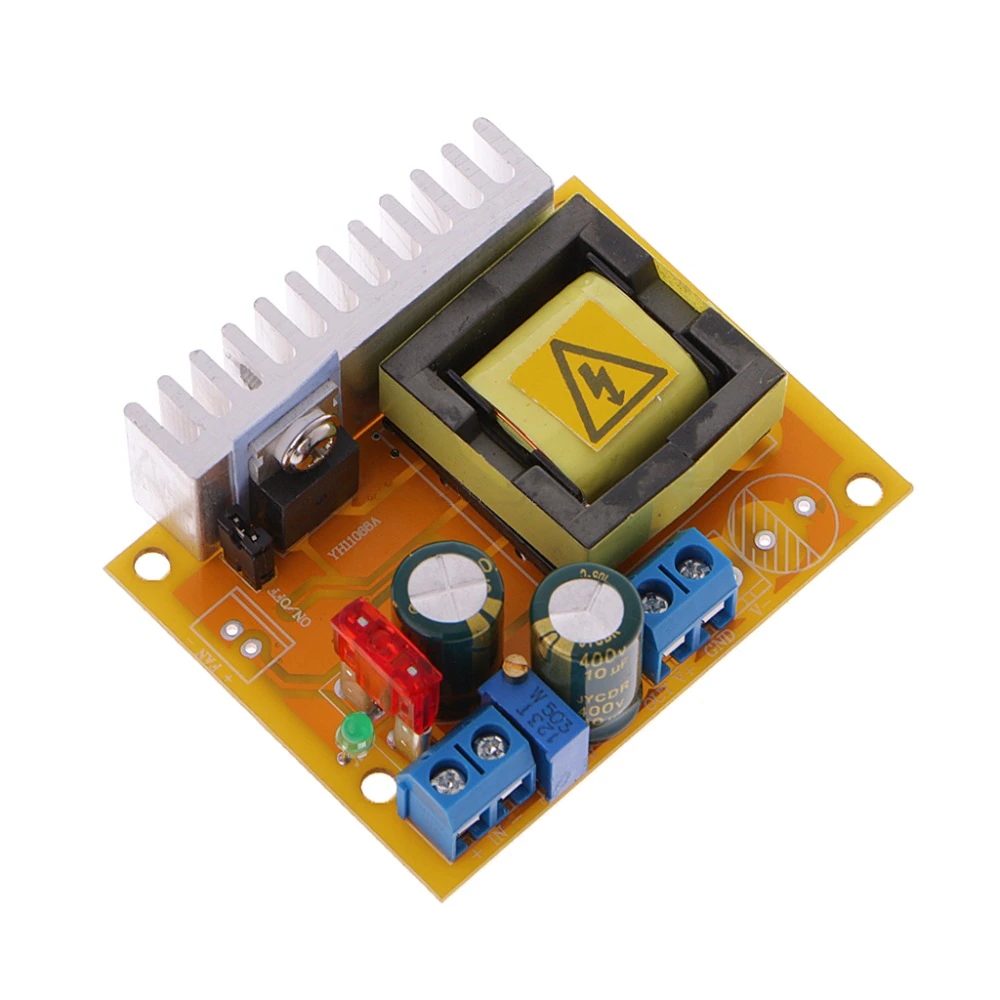

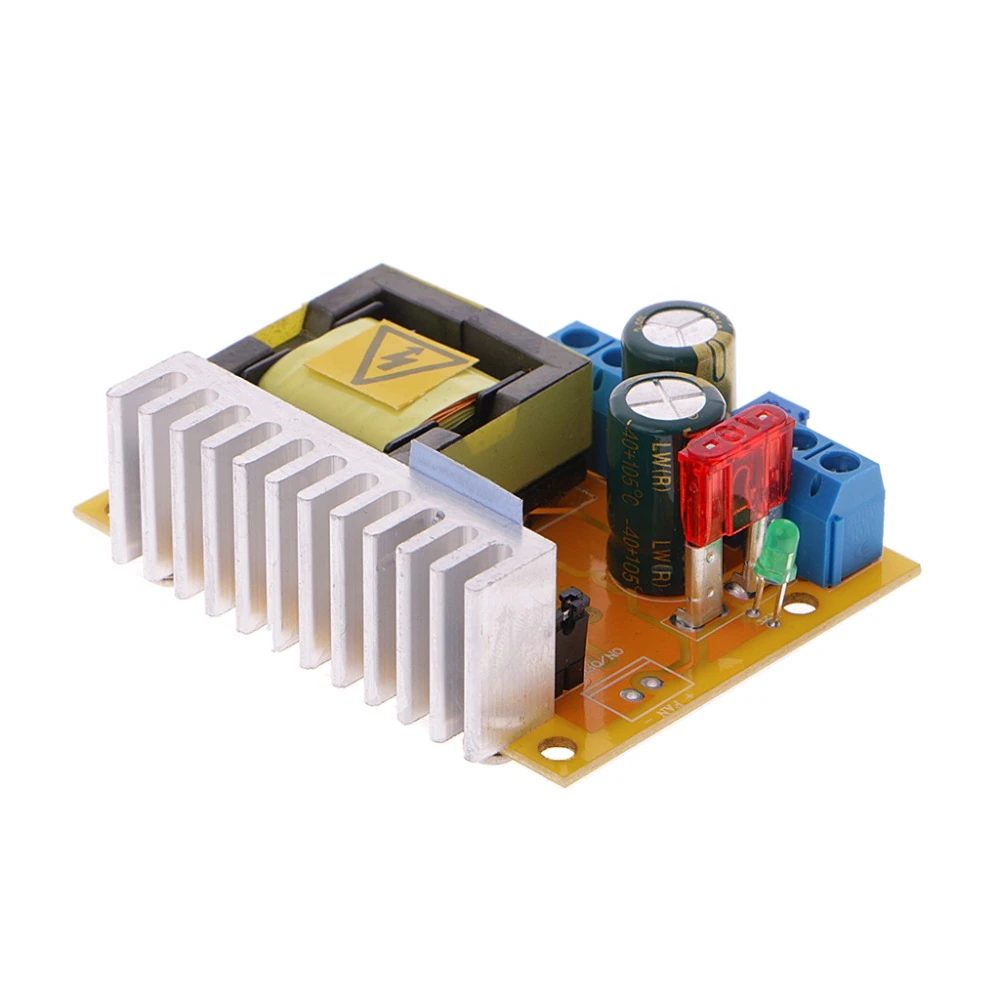

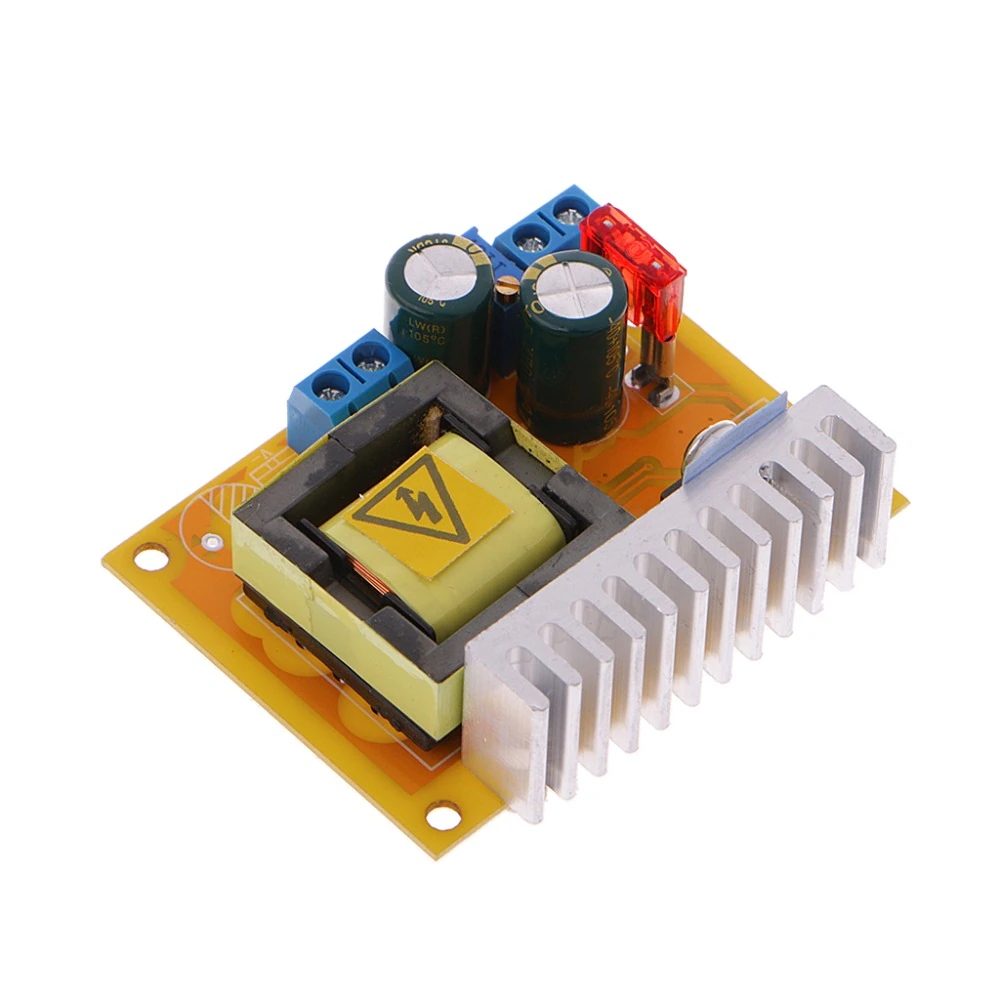

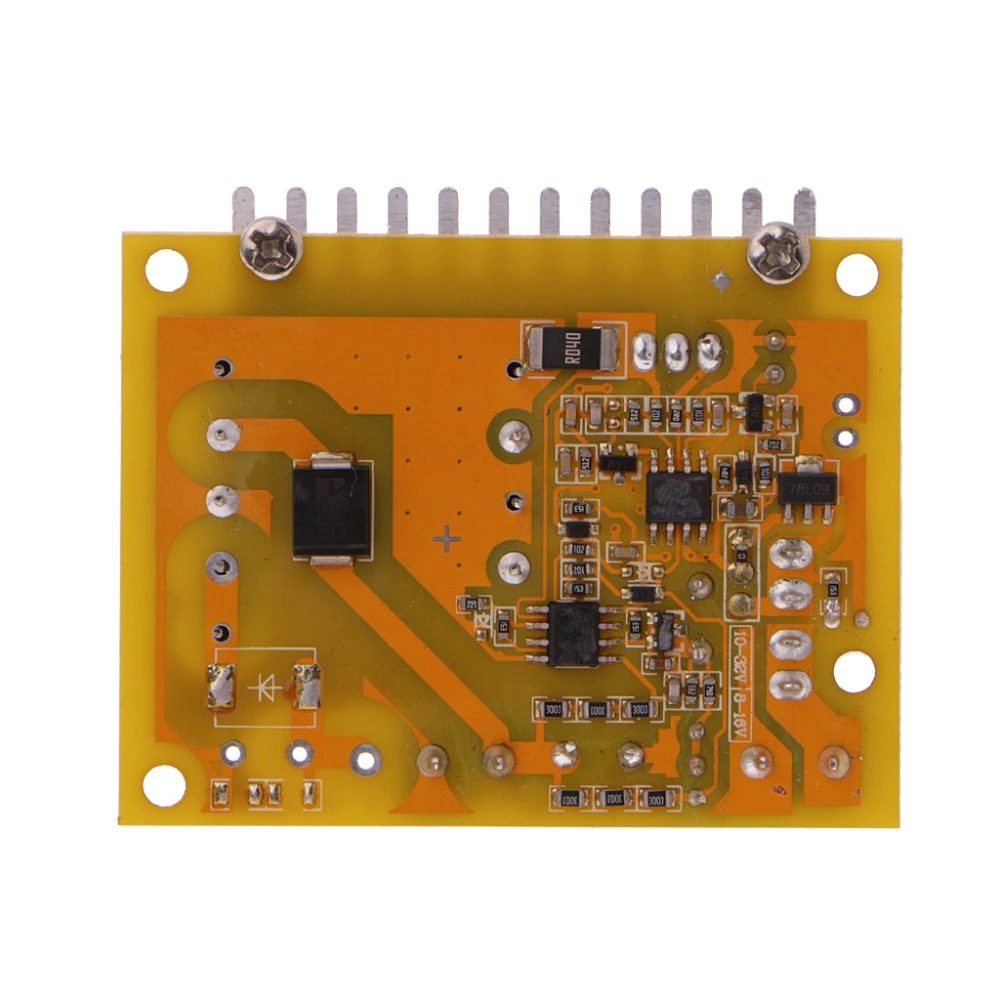

It is a DC-DC boost module. It has a wide voltage range,input dual current limiting protection,output voltage stabilization function,suitable for capacitor charging,hunting,rodent control,glow tube power supply.
Features:
- It has a large output voltage range to meet all your needs.
- It has high conversion efficiency and stable use.
- It has short-circuit protection,over-current protection and over-voltage protection.
- It is equipped with a reverse connection fuse and has input reverse connection protection.
- It has a fan interface,you can weld a fan yourself if necessary.
Parameter:
- Product Name:DC-DC Boost Module

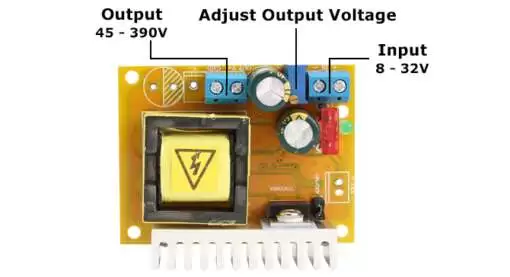

- Input Voltage:DC 8V-32V(For wide input voltage range applications)
- Input Current:5A(Max)
- Static Working Current:15mA
- Output Voltage:DC +/-45V-390V
- Output Current:0.2A(Max)
- Output Power:40W
- Maximum Output Power:70W
- Working Frequency:75KHz
- Conversion Efficiency:88%(Max)
- Work Temperature:-40℃~85℃
- Work Humidity:5%~95%RH
- Size:60 x 50 x 22mm (L x W x H)
Application:
- Capacitor charging,electromagnetic gun power supply.
- To supply power to your electronic equipment,you can set the output value according to your system voltage.
- Withstand voltage test power supply,glow tube power supply.
- Keep hunting and kill rats.
