S4-T240510 DC-DC Converter I/P:12-24V O/P:5V 10A
The S4-T240510 DC-DC Converter is a high-efficiency, compact power module designed to step down a wide input voltage range of 12-24V (operable between 8V-40V) to a stable 5V output. With a maximum current of 10A and a power output of 50W, this converter is perfect for powering a variety of electronic devices and systems. Its robust, waterproof design ensures reliable performance in diverse environments, making it ideal for automotive, industrial, and DIY electronics projects. The module features clearly marked input and output terminals with pre-attached wires for easy integration, along with intelligent protection mechanisms to safeguard against electrical issues. Whether you’re powering LED lights, microcontrollers, or automotive accessories, the S4-T240510 delivers consistent and efficient power conversion.
Features
- Wide Input Voltage Range: Accepts input voltages from 12V to 24V (operable between 8V-40V), offering flexibility for various power sources.
- Stable 5V Output: Delivers a consistent 5V output with a maximum current of 10A, suitable for powering multiple devices or high-power components.
- High Power Output: Capable of delivering up to 50W of power, ensuring sufficient energy for demanding applications.
- Efficient Step-Down Conversion: Utilizes DC-DC buck conversion technology for high efficiency (up to 95%) and minimal heat generation.

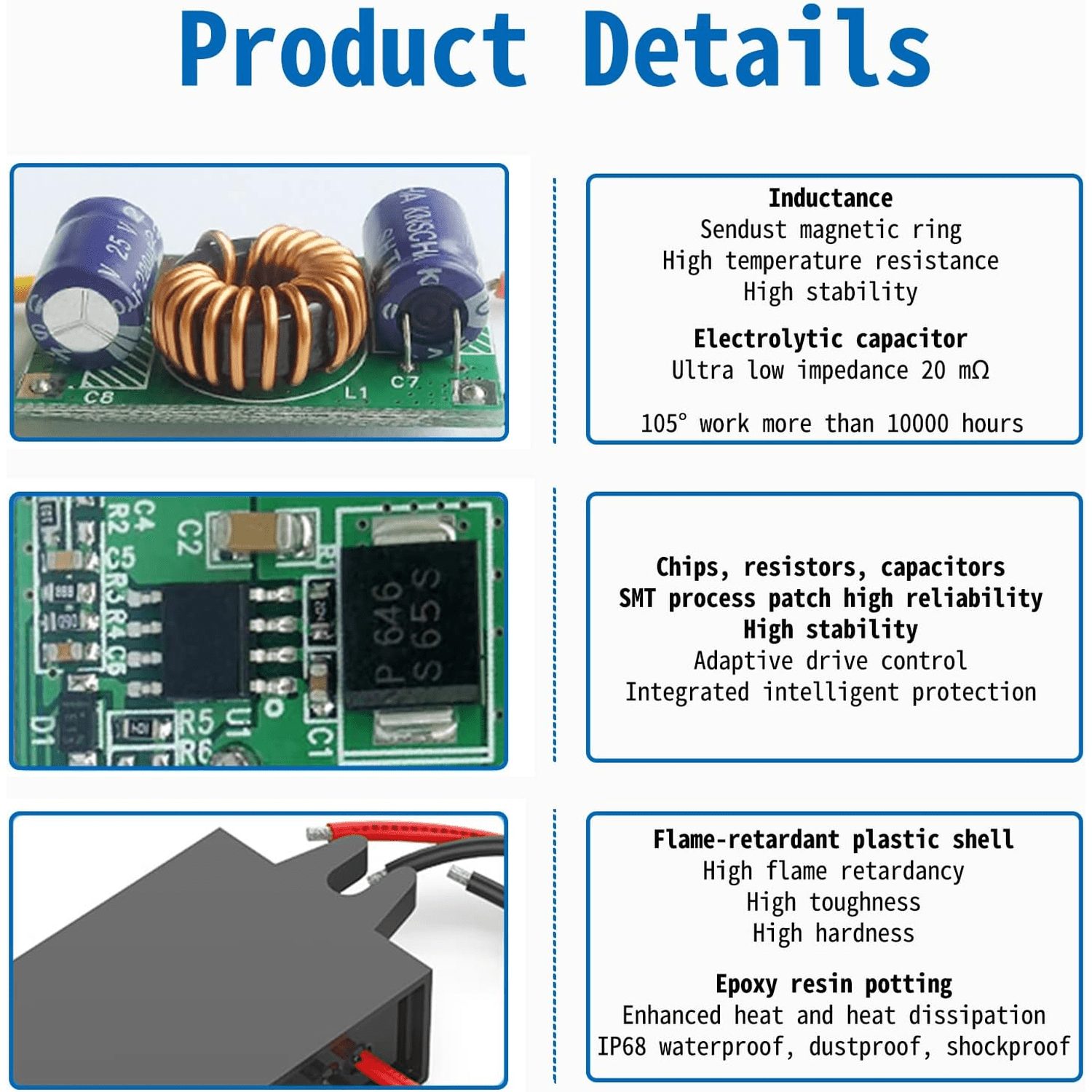

- Compact and Durable Design: Small form factor with a flame-retardant plastic shell and epoxy resin potting for enhanced safety and durability.
- Waterproof and Shockproof: IP68-rated protection ensures the converter is waterproof, dustproof, and shockproof, perfect for outdoor and rugged environments.
- Intelligent Protection Mechanisms: Built-in safeguards against overvoltage, overcurrent, short circuits, and overheating for reliable operation.

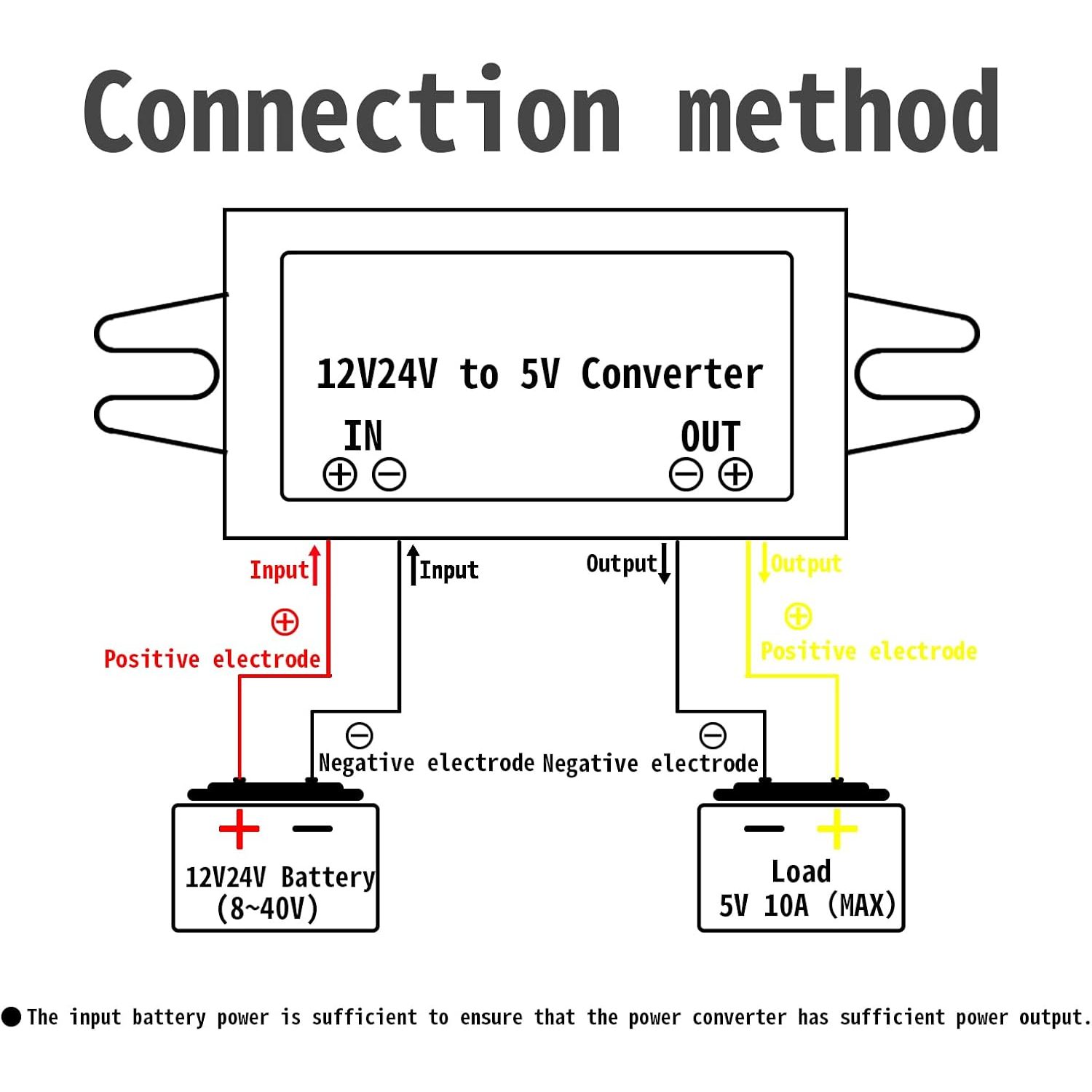

- Easy Installation: Clearly marked input (IN+ and IN-) and output (OUT+ and OUT-) terminals, with pre-attached wires (red, yellow, black) for quick setup.
- High-Temperature Resistance: Operates reliably in temperatures ranging from -40°C to +85°C, with components rated for over 10,000 hours at 105°C.
Specifications
| Specification | Details |
|---|---|
| Model | S4-T240510 |
| Input Voltage | 12-24V DC (Operational Range: 8V-40V) |
| Output Voltage | 5V DC |
| Output Current | 10A (maximum) |
| Output Power | 50W (maximum) |
| Conversion Type | DC-DC Step-Down (Buck Converter) |
| Efficiency | Up to 95% |
| Input Terminals | IN+ (Positive), IN- (Negative) |
| Output Terminals | OUT+ (Positive), OUT- (Negative) |
| Wire Configuration | Red (positive input), Yellow (positive output), Black (ground) |
| Protection Rating | IP68 (waterproof, dustproof, shockproof) |
| Operating Temperature | -40°C to +85°C |
| Construction | Flame-retardant plastic shell with epoxy resin potting |
| Lifespan | Over 10,000 hours at 105°C |
| Dimensions | 40mm x 58mm x 22mm |
Applications
- Automotive Electronics: Power 5V devices such as USB chargers, LED lighting, GPS systems, and dash cams in vehicles with 12V or 24V battery systems.
- DIY Electronics Projects: Ideal for hobbyists building custom circuits, including Arduino, Raspberry Pi, or other microcontroller-based projects requiring a stable 5V supply.
- Industrial Applications: Use in industrial equipment or machinery to power control systems, sensors, or automation devices.
- Portable Devices: Power portable electronics like cameras, routers, or USB charging stations using a higher voltage battery source.
- Solar Power Systems: Step down voltage from 12V or 24V solar panels to power 5V devices or charge USB-compatible gadgets.
- LED Lighting: Drive 5V LED strips, panels, or lighting systems with a reliable and efficient power source.
- Telecommunications: Power communication devices or networking equipment that require a stable 5V input.
- Backup Power Solutions: Integrate into backup power systems to provide a stable 5V output for critical low-voltage components.
