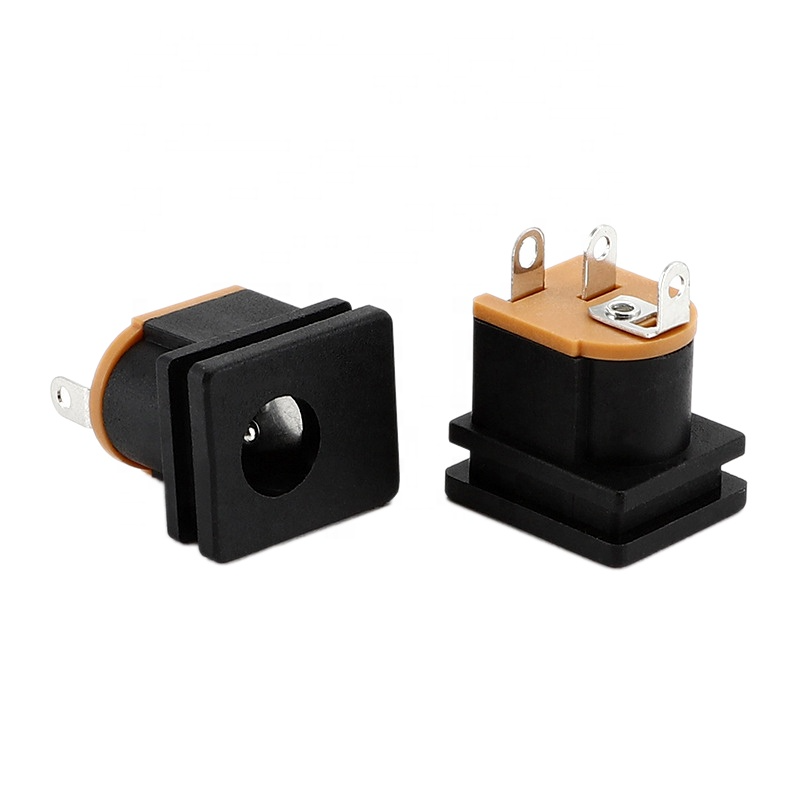

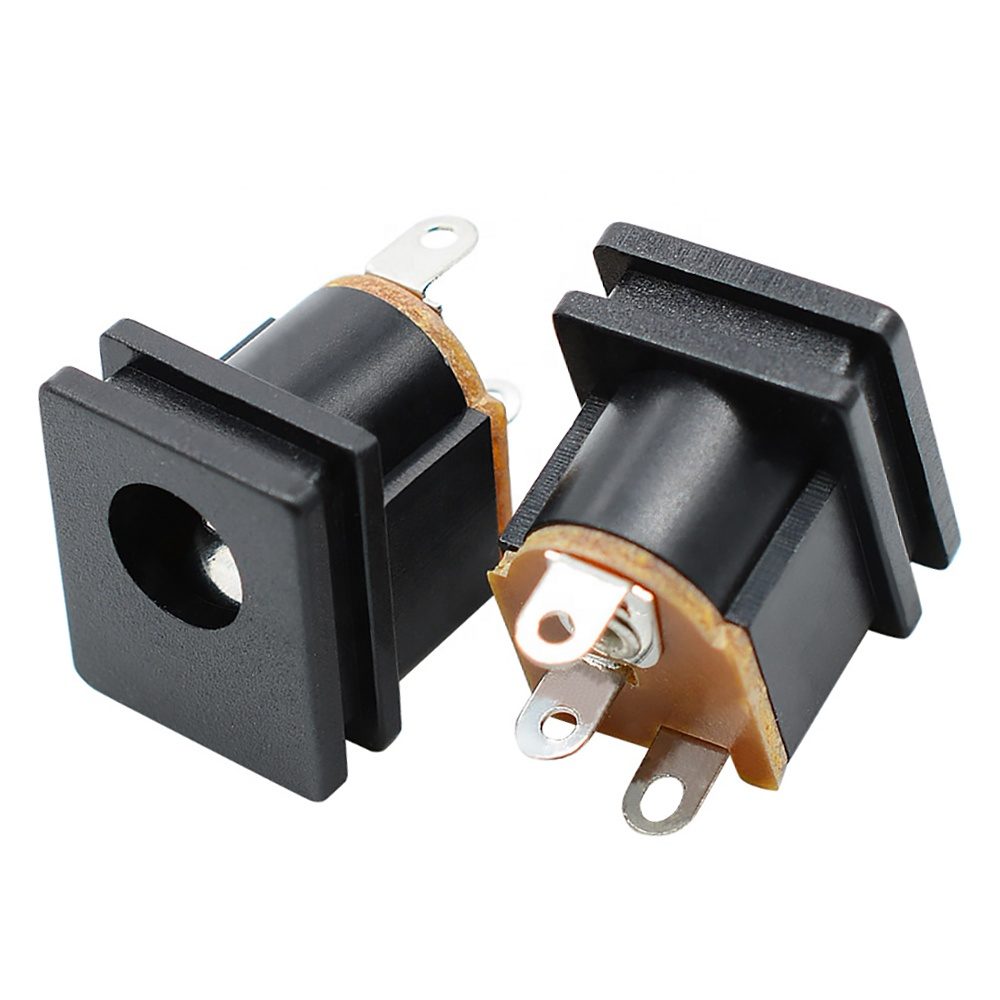

DC female Tripod 2.1mm
The DC Female Tripod 2.1mm is a high-quality panel-mount connector engineered for reliable power delivery in a wide array of electronic systems, from consumer gadgets to industrial equipment. This female jack accepts standard 2.1mm x 5.5mm barrel plugs, providing a secure, low-resistance interface for DC power supplies up to 12VDC and 5A continuous current, ensuring efficient energy transfer without voltage drop or overheating. Its tripod-style mounting design incorporates two side tabs and a base flange with pre-drilled holes (M2.5 or 3mm diameter), allowing for firm attachment to enclosures, chassis, or PCBs using screws, which enhances mechanical stability in vibration-prone environments like automotive or portable devices. The solder-cup terminals facilitate straightforward wiring, supporting hand or wave soldering processes for rapid assembly in high-volume production, while the nickel-plated brass contacts deliver excellent conductivity and corrosion resistance for long-term durability.
Features:
- Tripod-style mounting with three tabs and 3mm holes for secure screw attachment to panels.
- Standard 2.1mm ID x 5.5mm OD barrel for universal DC plug compatibility.
- Solder-lug terminals for reliable, low-resistance wire connections.
- Nickel-plated brass contacts ensuring corrosion resistance and minimal signal.
Specifications:
| Parameter | Value |
|---|---|
| Connector Type | Female Barrel Jack |
| Inner Diameter | 2.1mm |
| Outer Diameter | 5.5mm |
| Voltage Rating | Up to 30V DC |
| Current Rating | 1A |
| Material | Zinc Alloy + Plastic |
| Mounting Type | Panel Mount |
| Connection Type | Screw Terminal / Solder |
Applications:
- Connecting power supplies to CCTV cameras.
- Powering LED strips and lighting systems.
- Integrating with routers and networking equipment.
- DIY electronics projects requiring stable power connections.
- Replacement for damaged or worn-out connectors in existing setups.
Package Include:
1x DC female Tripod 2.1mm
