DC Input Module 5V with DC Jack and Switch for Breadboard
The DC Input Module 5V with DC Jack and Switch is a compact and convenient power supply accessory designed for breadboards and prototyping circuits. It allows easy connection of a 5V regulated DC input via a standard barrel jack, eliminating the need for loose wiring. The onboard switch provides simple control for powering circuits on or off without disconnecting the supply. Compact in size, it fits neatly on breadboards, making it an ideal solution for powering microcontrollers, sensors, and electronic experiments with reliable and stable 5V DC output.
Features
- Provides regulated 5V DC output for breadboard projects.
- Standard DC barrel jack input for easy power connection.
- Onboard power switch for simple ON/OFF control.
- Compact design fits directly on standard breadboards.
- Stable and reliable power supply for electronic circuits.
- Ideal for powering microcontrollers, sensors, and small modules.
- Reduces wiring complexity in prototyping setups.
Specifications
| Specification | Details |
| Product Type | DC Input Power Module for Breadboard |
| Input Voltage | 5VDC |
| Output Voltage | Regulated 5VDC |
| Output Current | Up to 700mA – 1A |
| Connector I/P Type | DC Barrel Jack + Breadboard Pin Headers |
| DC power I/P plug Type | DC power plug 5.5mm X 2.1mm |
| Onboard Switch | Yes, for ON/OFF power control |
| Compatibility | Standard breadboards and prototyping circuits |
| Board Dimensions (L x W) | 51mm X 13mm |
| Applications | Powering microcontrollers, sensors, and small modules |

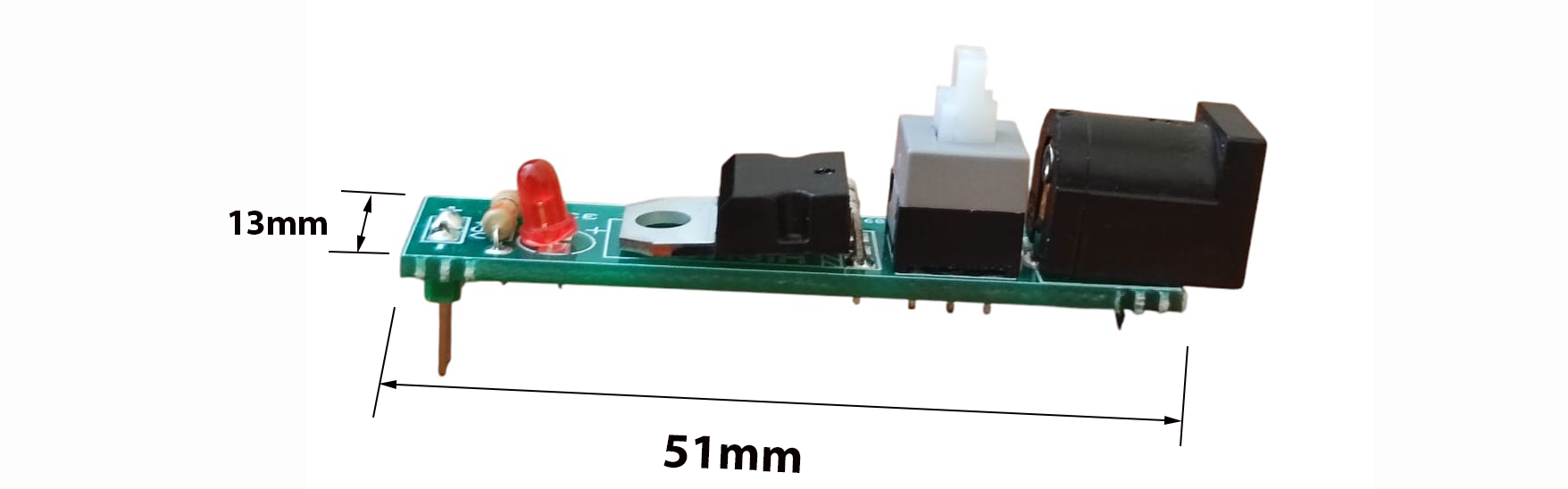

Dimensions
Pin Configuration
| Pin Number | Pin Name | Description |
| 1 | Output (Vo) | Outputs Regulated +5V |
| 2 | Ground (GND) | Connected to Ground |
Applications
- Provides regulated 5V power supply for breadboard projects.
- Powers microcontroller boards like Arduino, PIC, and AVR.
- Suitable for sensors, modules, and small electronic circuits.
- Ideal for DIY electronics, prototyping, and testing projects.
- Used in academic labs and hobbyist circuit development.
Package Contents
- 1 x DC Input Module 5V with DC Jack and Switch for Breadboard
