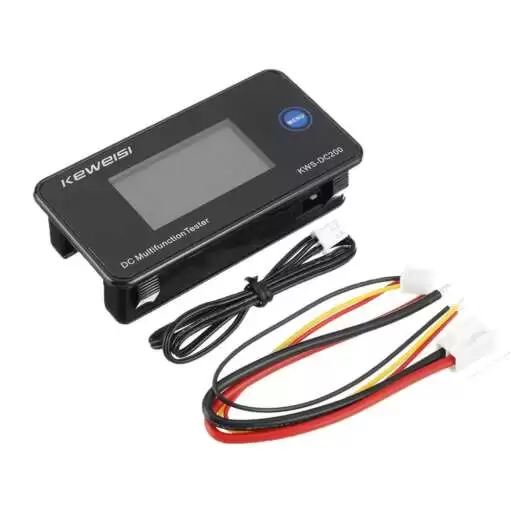

DC Multifunction Tester Energy Meter KWS-DC200-100A

>>> Manual: Click here to open <<

Product model
KWS-DC200-10A/with internal shunt
KWS-DC200-50A1 with an external shunt
KWS-DC200-100A/with an external shunt
Product Function

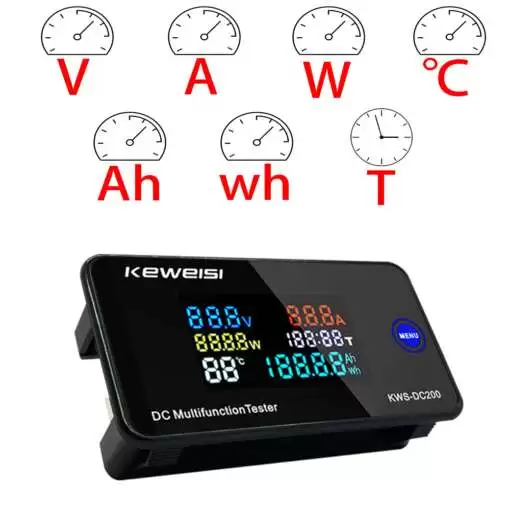

1. Voltage, current, power, timing, temperature, electricity, electrical quantity.
2. Electrically, electrical quantity and timing can be reset
3, electricity, electrical quantity and timing have power-down memory function.
4- The direct power supply of this product can measure 8-120V, and the external power supply can measure 0-200V,
product parameter
model: KWS-DC200-10A/ KWS-DC200-50A /KWS-DC200-100A
supply voltage: 8 -120 volts

Click the menu button to display the electricity and electricity quantity.
Press the menu button for 3 seconds to reset the timing. Ah and why.
The direct power supply of this product can measure 8-120V, and the
external power supply can measure 0-200V.
The current and voltage can be manually calibrated.
