8-Channel DC Power Distributor Module
The 8-Channel DC Power Distributor is a compact, panel-ready module that splits a single DC input into six protected outputs for powering multiple loads or subsystems from one supply. The board accepts 5–48VDC input, provides per-channel fuse protection and filtering, and uses LED indicators to show input presence and individual output status, making it ideal for test racks, control panels, robotics, CCTV, and laboratory power distribution tasks.
Features
- Wide operating voltage range from 5VDC to 48VDC.
- Eight independently fused outputs with a maximum of 10A per channel.
- Green LED to indicate input power presence.
- Red LED for each output to indicate channel power/status.
- 100nF filter capacitor on every output to suppress high-frequency noise.
- Four Ø3.5mm mounting holes for secure panel installation.
- Optional mounting modes: PCB carrier or DIN-rail bracket for rack or rail mounting.
- Compact footprint suitable for compact control boxes and multi-module assemblies.

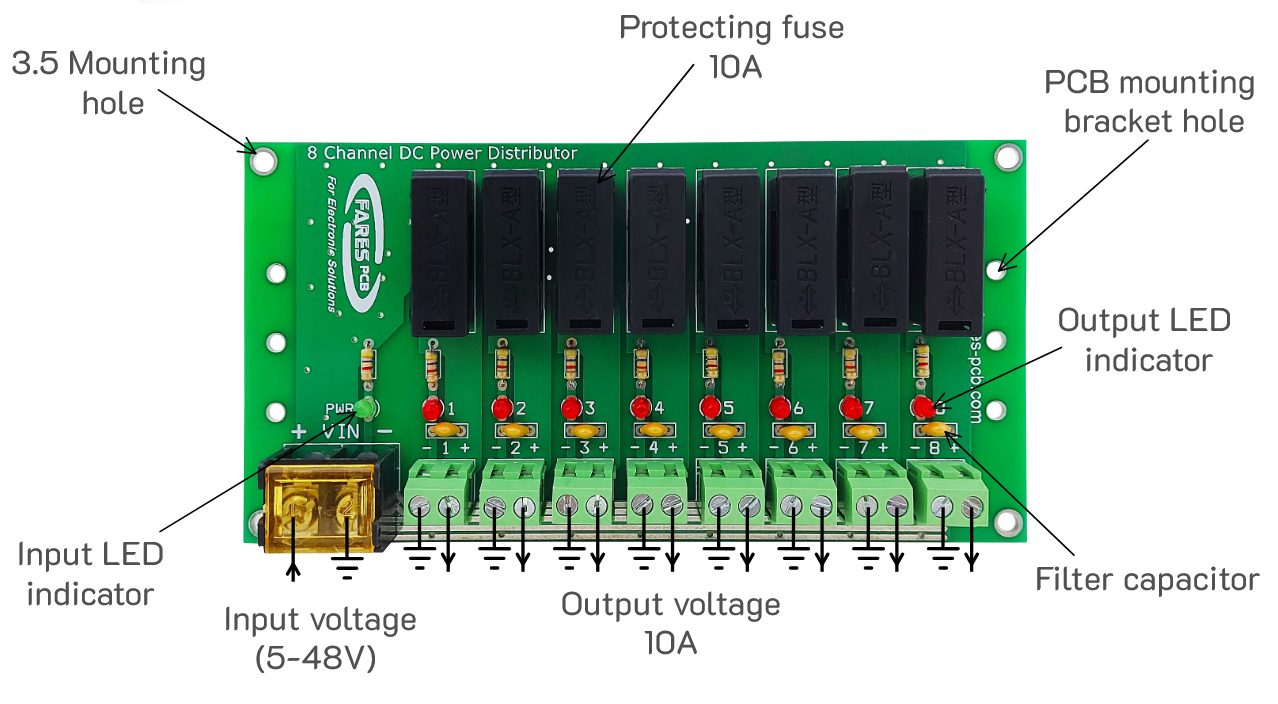

PINOUT
Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 5–48VDC |
| Max Output Current Per Channel | 10A |
| Protection | Fuse per channel |
| Input Indicator | Green LED |
| Output Indicators | 8× Red LEDs (one per channel) |
| Output Filtering | 100nF capacitor per channel |
| Mounting Holes | 4× Ø3.5mm |
| Mounting Options | Mounting holes, PCB carrier, PCB bracket (DIN-rail) |

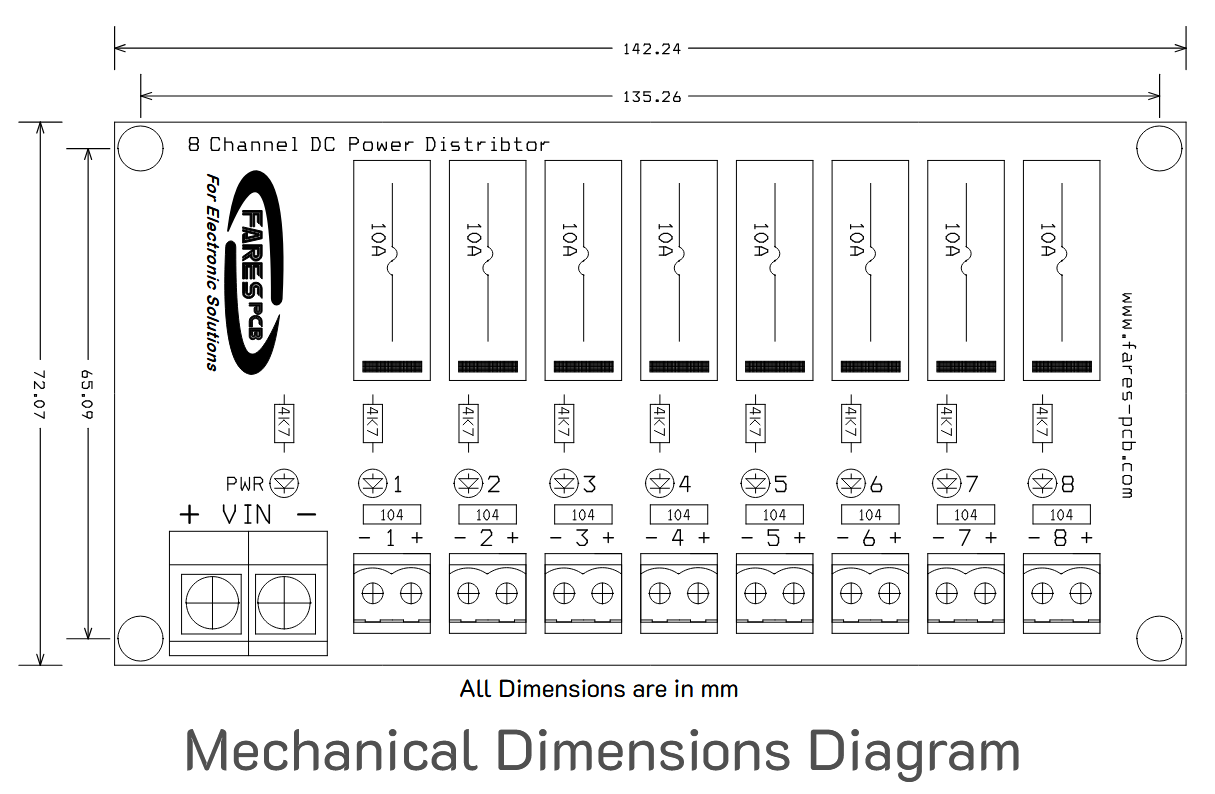

| Dimensions | 143mm x 72mm x 20mm |
Applications
- Power distribution for control panels, PLC I/O and automation racks.
- Multi-channel power for robotics, sensors, cameras and surveillance systems.
- Laboratory benches, test fixtures and prototyping rigs requiring fused outputs.
- DIY projects and custom enclosures where consolidated, protected DC rails are required.
- Retrofit power module for small systems that need per-channel protection and status indication.
Package Contents
- 1x 8-Channel DC Power Distributor
