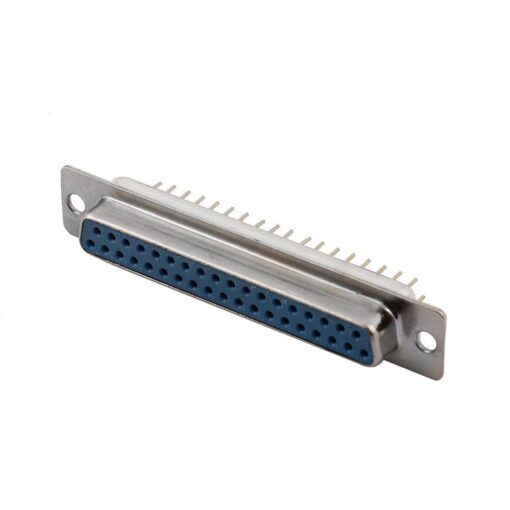

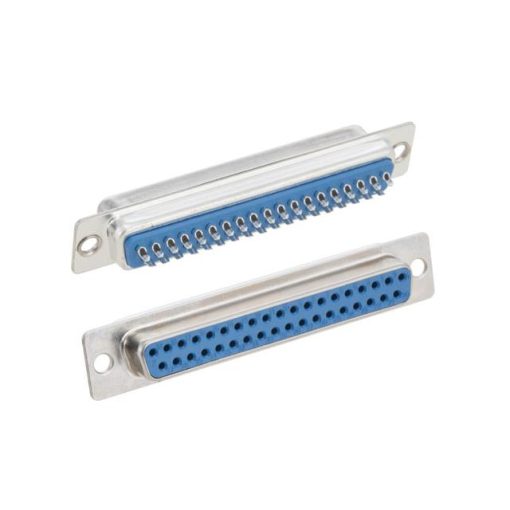

DC37 Wire Solder Female D-Type Connector 37 Pin 2 Row
The DC37 female D-type connector, also known as a D-subminiature connector, is a robust and widely utilized component in electronic applications requiring reliable signal and data transmission. Featuring 37 positions arranged in two rows, this connector employs solder cup terminals for secure and permanent wire connections. The distinctive D-shaped metal shell not only ensures proper alignment during mating but also provides mechanical strength and effective electromagnetic interference (EMI) shielding.
Features
- 37-Position Female Connector: Accommodates 37 socket contacts for versatile connectivity.
- Solder Cup Terminals: Facilitates easy and durable wire attachment for custom cable assemblies.
- D-Shaped Metal Shell: Provides mechanical support, ensures correct orientation, and shields against EMI.
- Standard Density Pin Arrangement: Pins spaced 2.76mm horizontally and 2.84mm vertically, compatible with standard D-sub hoods and accessories.
- Durable Construction: Supports over 500 mating cycles for long-term reliability.
- RoHS Compliant: Environmentally friendly materials meet modern regulatory standards.
Specifications
| Parameter | Details |
|---|---|
| Number of Positions | 37 |
| Gender | Female (socket) |
| Termination Type | Solder Cup |
| Shell Size | C (standard for 37-pin connectors) |
| Contact Material | Phosphor Bronze |
| Shell Material | Steel with Nickel Plating |
| Insulator Material | Thermoplastic, UL94V-0 rated |
| Current Rating | 5A per contact |
| Insulation Resistance | >1000MΩ |
| Operating Temperature | -55°C to +105°C |
Applications
- Serial Communication Interfaces: Commonly used in RS-232 and RS-485 protocols for data transfer in computers and communication devices.
- Industrial Automation: Employed in control systems, PLCs, and data acquisition systems for reliable signal transmission.
- Computer Peripherals: Connects devices such as monitors, keyboards, and legacy hardware.
- Test and Measurement Equipment: Ensures stable connections in oscilloscopes, multimeters, and other instruments.
- Networking Equipment: Supports low-speed data transfer protocols, such as 1-Megabit or 10-Megabit Ethernet, in legacy systems.
Package Content
- 1 x DC37 Wire Solder Female D-Type Connector 37 Pin 2 Row
