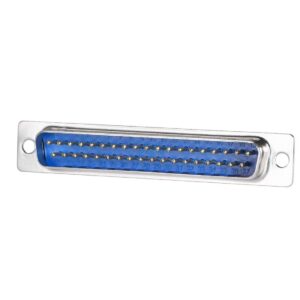

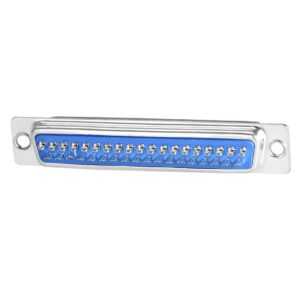

DC37 Wire Solder Male D-Type Connector 37 Pin 2 Row
The DC37 Wire Solder Male D-Type connector (37-Pin, 2-Row) is a high-quality connector designed for reliable and secure electrical connections. It features wire solder terminations, allowing for flexible and durable custom wiring installations. Widely used in industrial, networking, and data transmission applications, the DC37 connector ensures stable performance and excellent protection against electromagnetic interference (EMI).
Features
- 37-Pin, 2-Row Male D-Type connector.
- Standard DC37 form factor for universal compatibility.
- Provides a secure and long-lasting connection with wire solder terminations.
- Reliable performance in demanding environments.
- Compatible with various devices and systems.
- Cost-effective for custom cable assemblies and projects.
- Wire Solder terminations for secure and durable wire connections.
- Copper-plated contacts for enhanced conductivity and corrosion resistance.
- Nickel-plated steel shell for durability and EMI protection to reduce signal interference.
- Pre-drilled mounting holes for easy installation on Plastic Cover.
Specifications
| Parameter | Specification |
|---|---|
| Connector Type | (DC37), Male Plug |
| Number of Pins | 37 |
| Pin Configuration | 2 Rows (19 upper, 18 lower) |
| Termination Style | Wire Solder / Solder Cup |
| Contact Material | Copper Alloy |
| Shell Material | Steel, Nickel Plated |
| Insulator Material | UL94V-0 Rated Thermoplastic |
| Rated Voltage | 300V AC/DC |
| Rated Current | Up to 5A per Contact |
| Insulation Resistance | ≥1000 MΩ @ 500V DC |
| Operating Temperature Range | –55°C to +125°C |
| Dimensions | 69.3mm × 14mm × 12.7mm (L × H × D) |
Applications
- Industrial automation and control systems.
- Data communication and networking equipment.
- Computer peripherals and legacy interface connections.
- Audio and video transmission applications.
- Test and measurement instruments.
- Aerospace and defense systems.
- Medical and laboratory devices.
- Custom cable assemblies for specialized projects.
