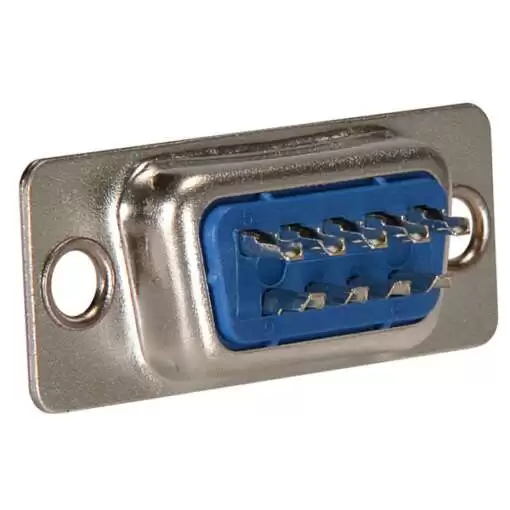

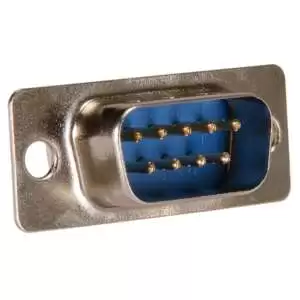

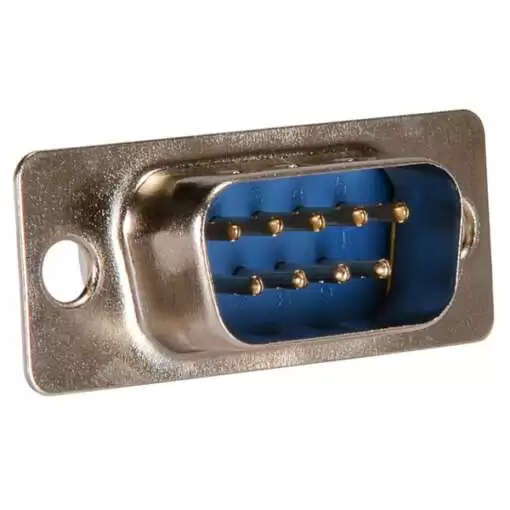

DE9 Wire Solder Male D-Type Connector 9 Pin 2 Row

DE9 Wire Solder Male D-Type Connector 9 Pin 2 Row

The DE9 Wire Solder Male D-Type Connector 9 Pin 2 Row is a durable and versatile electrical connector designed for a variety of applications that require a reliable connection. Featuring a 9-pin configuration with two rows of pins, this connector allows for secure and stable wiring connections. It is specifically designed for wire soldering, making it ideal for custom wiring projects where a strong and dependable connection is required. The D-Type shape ensures proper alignment and a secure fit when paired with corresponding connectors. Its male design, along with the high-quality metal pins, ensures efficient signal transmission and low resistance. Typically used in serial communication, computer peripherals, and industrial equipment, the DE9 Wire Solder Male D-Type Connector 9 Pin 2 Row provides a cost-effective solution for various electronic and electrical wiring needs.

Features:

• 9-Pin, 2-Row Male D-Type connector.
• Standard DE9 form factor for universal compatibility.
• Provides a secure and long-lasting connection with wire solder terminations.
• Reliable performance in demanding environments.
• Compatible with various devices and systems.
• Cost-effective for custom cable assemblies and projects.
• Wire solder terminations for secure and durable wire connections.
• Copper-plated contacts for enhanced conductivity and corrosion resistance.
• Nickel-plated steel shell for durability and EMI protection to reduce signal interference.
• Pre-drilled mounting holes for easy installation on plastic cover.

Specifications:

• Connector Model: DE9
• Connector Type: Wire Solder D-Type
• Gender of Connector: Male
• Body Orientation: Straight
• Termination Type: Solder cup
• Mounting Style:  Cable Assembly
• Number of Pins: 9 Pin
• Number of Rows: 2 Row
• Contact Material: Copper
• Shell Material: Nickel-plated steel
• Rated Voltage : 300V AC/DC
• Rated Current: Up to 5A per contact
• Insulation Resistance: 1000 MΩ min
• Operating Temperature: -55°C to 125°C

Applications:

• Serial Communication.
• Industrial Automation.
• Computer Peripherals.
• Networking Equipment.
• Telecommunications.
• Audio/Video Equipment.
• Embedded Systems.
• Test and Measurement Instruments.
• Point of Sale (POS) Systems.
• Medical Equipment.
