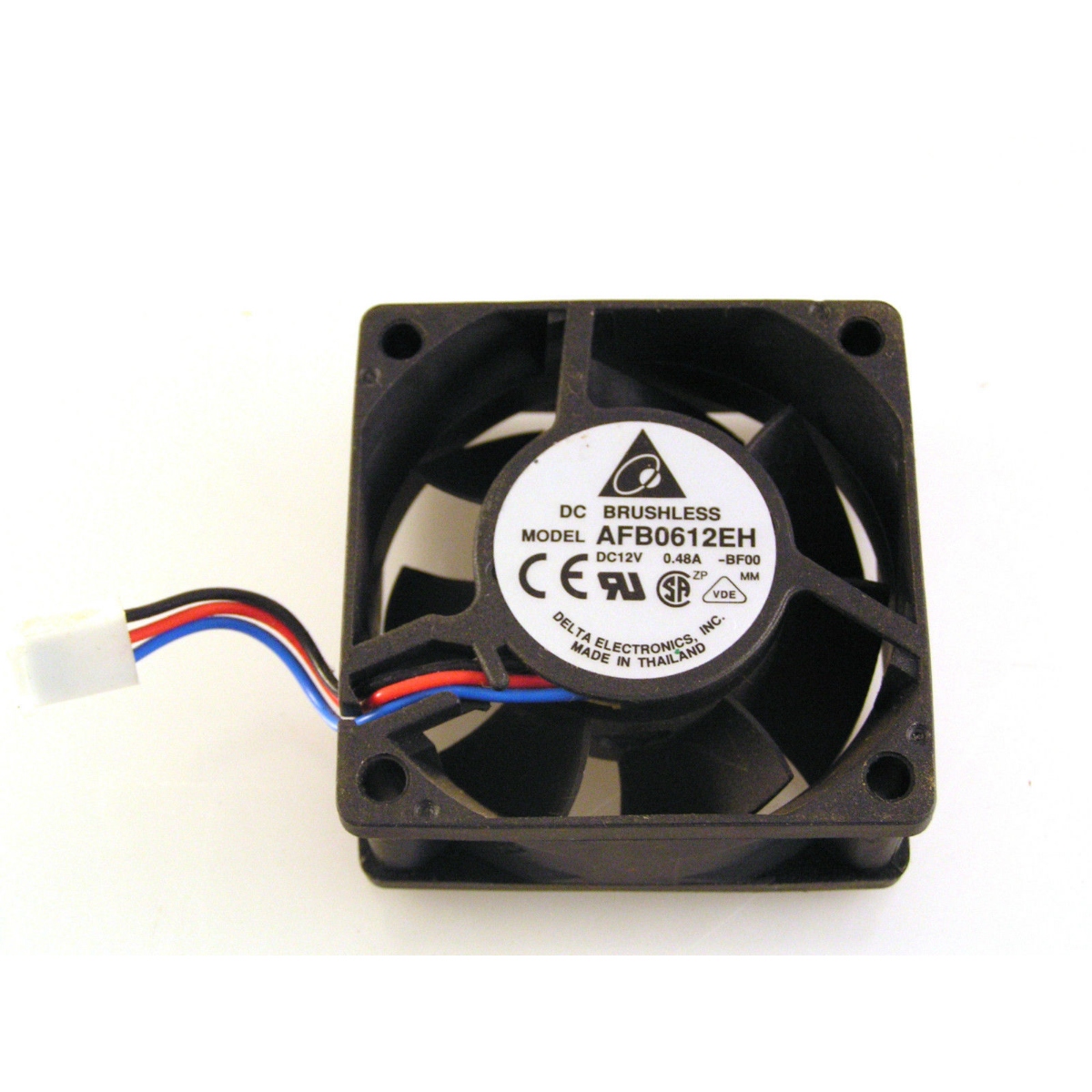

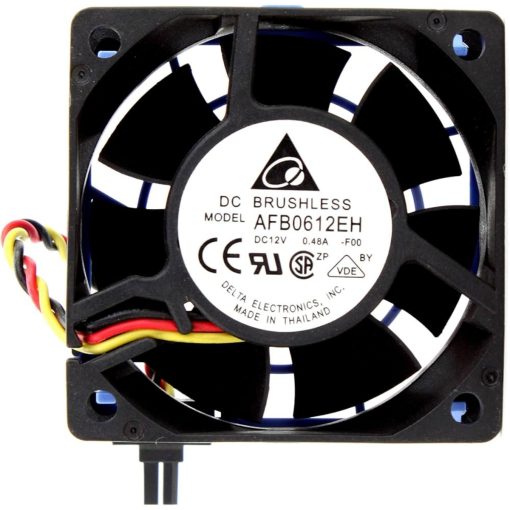

Delta AFB0612EH DC Fan 12V 0.48A 60mmx60mmx25mm (USED LIKE NEW)
The Delta AFB0612EH-A is a high-performance 12V DC brushless axial fan designed for reliable thermal management in a wide range of electronic applications. With a compact 60mm × 60mm × 25mm form factor, it offers efficient airflow and static pressure suitable for cooling CPUs, power supplies, industrial controls, and communication equipment. Its dual-ball-bearing construction ensures long operational life and stable performance under continuous use.
This fan incorporates locked-rotor protection and reverse-polarity protection, enhancing its durability and safety in demanding environments. It is built with UL 94V-0 rated plastic materials and complies with RoHS requirements, making it suitable for use in consumer electronics, networking hardware, and automation systems where consistent cooling and low acoustic noise are important.
Features:
- Brushless DC motor design.
- Dual-ball-bearing system for extended lifespan.
- Locked-rotor protection.
- Reverse-polarity protection.
- UL 94V-0 flame-retardant plastic frame and impeller.
- RoHS compliant, free of ozone-depleting substances.
- Suitable for parallel operation with external capacitor.
Specifications:
| Parameter | Value |
|---|---|
| Model: | AFB0612EH-A |

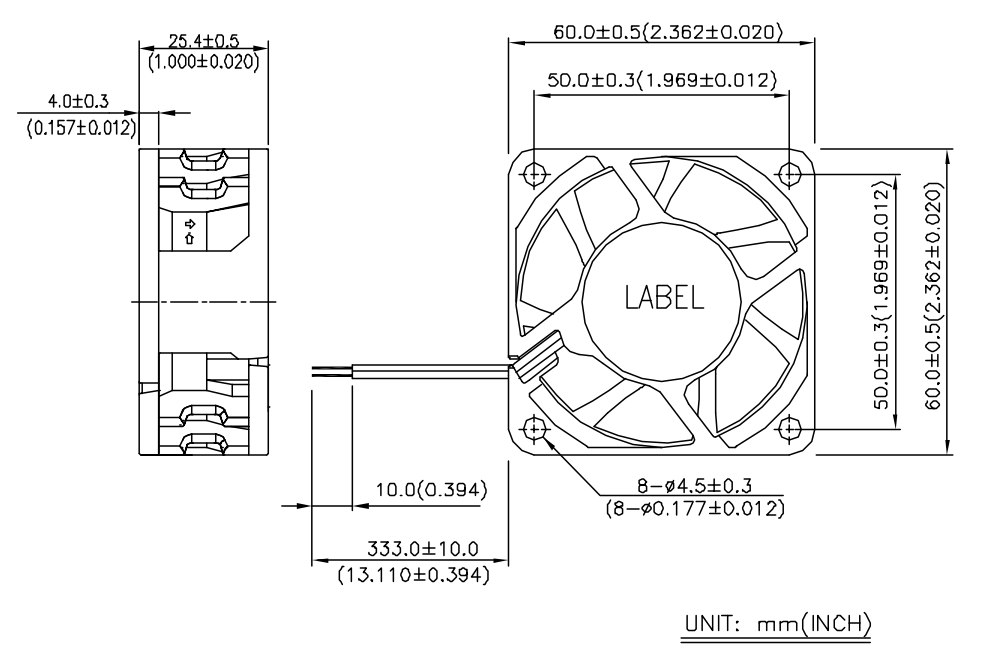

| Size (mm): | 60 × 60 × 25 |
| Rated Voltage: | 12VDC |
| Operating Voltage Range: | 4.0 – 13.8VDC |
| Start Voltage (at 25°C): | ≤ 4.0VDC |
| Input Current (max.): | 0.48A |
| Input Power (max.): | 5.76W |
| Speed: | 6800RPM |
| Max. Airflow (@ 0 static pressure): | 1.086 m³/min (38.35 CFM) |
| Max. Static Pressure (@ 0 airflow): | 13.81 mmHg (0.544 inch H₂O) |
| Noise Level (average): | 46.5dBA |
| Insulation Class: | UL Class A |
| Operating Temperature: | -10°C to +70°C |
| Storage Temperature: | -40°C to +75°C |
| Weight: | 80grams |
| Bearing Type: | Dual Ball Bearing |
| Life Expectancy (min., at 80°C): | 1000 hours |
Applications:
- PC and server cooling.
- Power supply units.
- Telecom and networking equipment.
- Industrial control cabinets.
- Embedded systems and IoT devices.
- Project enclosures and ventilation.
Packages:
- 1x Delta AFB0612EH DC Fan 12V 0.48A 60mmx60mmx25mm (USED LIKE NEW).
