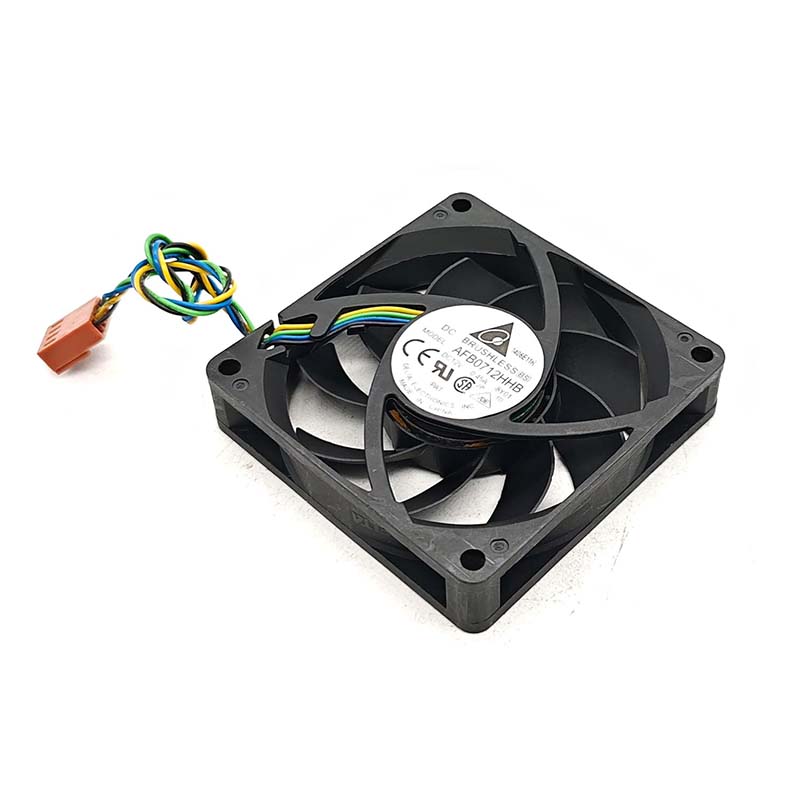

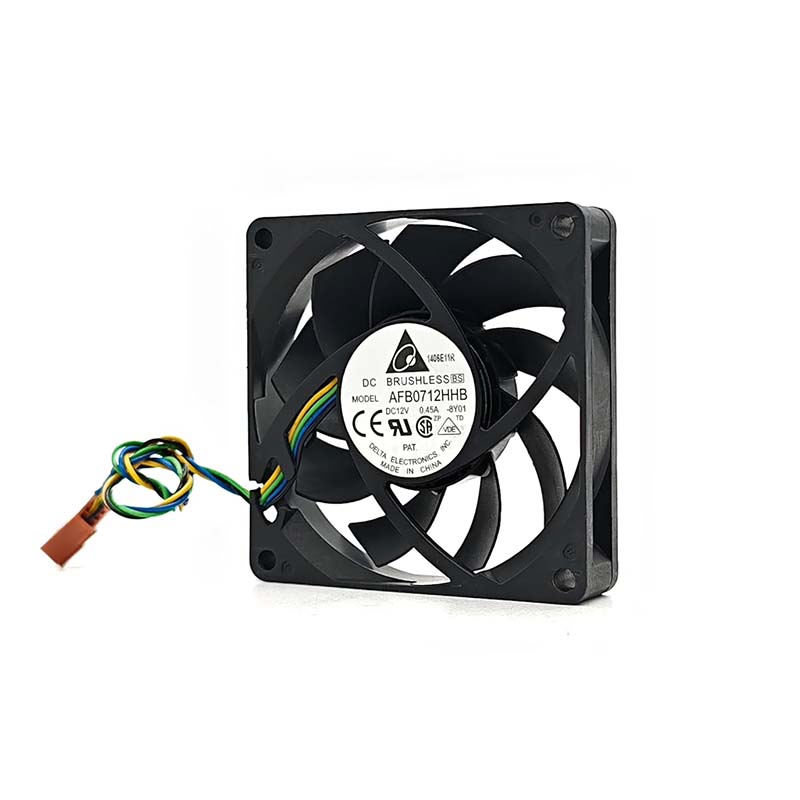

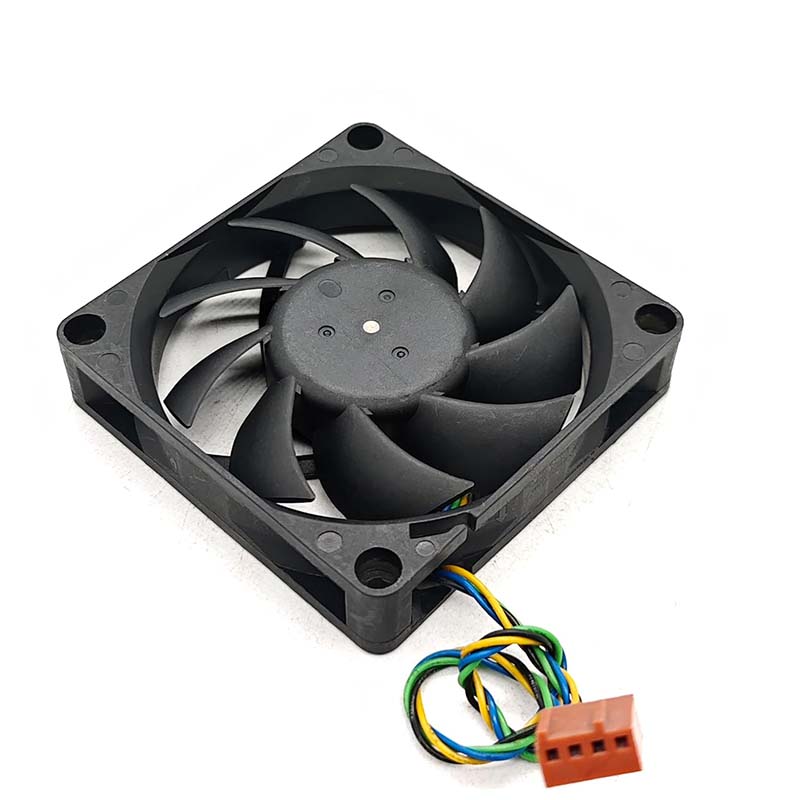

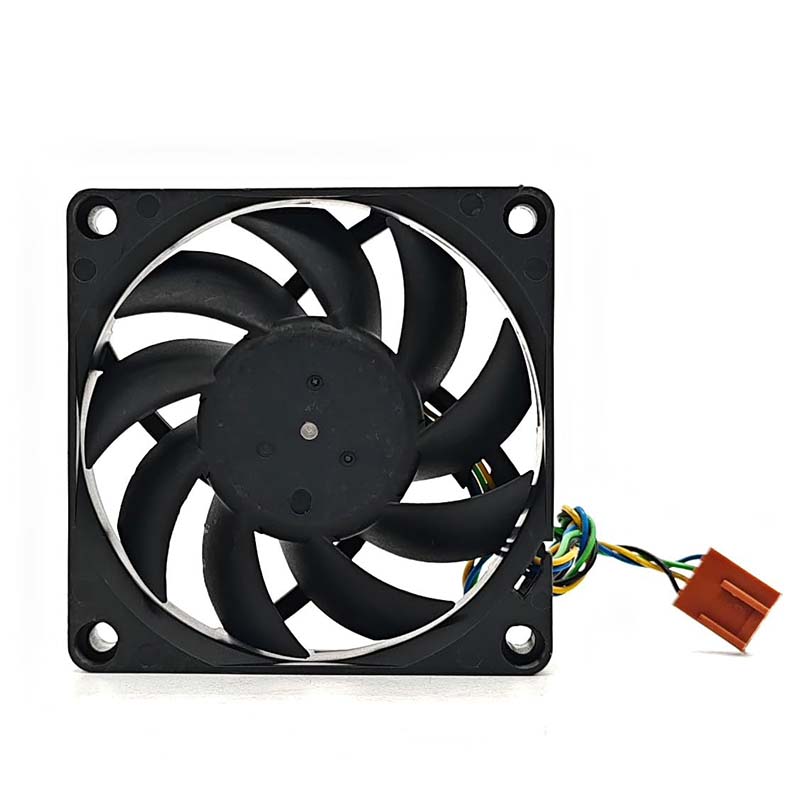

Delta AFB0712HHB DC Fan 12V 0.45A 70x70xx15mm (USED LIKE NEW)
Delta AFB0712HHB is a compact 70×70×15 mm 12 V DC axial fan with ball bearing, providing effective airflow and stable cooling for compact systems.
450.00 EGP
Buy NowDelta AFB0712HHB DC Fan 12V 0.45A 70x70xx15mm (USED LIKE NEW)
The Delta AFB0712HHB is a compact and versatile DC cooling fan designed to deliver consistent airflow in restricted spaces. With its low-profile 15 mm frame, this fan is particularly suited to environments where thickness is limited but cooling remains essential. Its construction reflects attention to mechanical simplicity and functional reliability, enabling it to be incorporated into various thermal setups without the need for customized mounting solutions.
Inside the lightweight casing, the fan spins swiftly to generate a steady stream of air that helps dissipate heat from nearby components. The airflow behavior is stable and predictable, offering a balanced performance that does not require complex control circuitry. The compact size enhances its adaptability, and the careful design of the blade geometry and motor assembly contributes to its dependable operation over long periods.
Overall, the Delta AFB0712HHB serves as a practical cooling solution for applications where space constraints and consistent airflow are both priorities. Its simple yet effective approach to airflow management makes it suitable for engineering projects, component cooling, and retrofitting scenarios where dependable air movement is needed in confined areas.
Features:
- Compact 70×70×15 mm form factor
- Axial airflow design
- Ball bearing structure for durability
- Balanced airflow generation
- Continuous duty operational design
- Built‑in speed sensor or locked rotor protection (model‑dependent)
- Lightweight plastic frame and blades
- Predictable performance under standard DC input
Specifications:
| Specification | Value |
|---|---|
| Manufacturer: | Delta Electronics |
| Model: | AFB0712HHB |
| Fan Type: | DC Axial Fan |
| Rated Voltage: | 12 VDC |
| Rated Current: | 0.45 A |
| Power: | 5.4W |
| Dimensions: | 70 × 70 × 15 mm |
| Fan Speed: | ~4300 RPM |
| Airflow: | ~37.5 CFM (1.05 m³/min) |
| Static Pressure: | ~0.210 in H₂O (5.33 mmH₂O) |
| Noise Level: | ~38.5 dB(A) |
| Bearing Type: | Ball bearing |
| Termination: | 4‑pin Connector |
| Operating Temp Range: | -10 °C to +70 °C |
| Weight: | 50 g |
Applications:
- Small enclosure cooling.
- Telecommunication cooling.
- Industrial controller ventilation.
- Power supply airflow.
- Computing equipment ventilation.
- Embedded system thermal management.
- Networking hardware cooling.
- Consumer electronics airflow.
Package Contents:
- 1x Delta AFB0712HHB DC Fan 12V 0.45A 70x70xx15mm (USED LIKE NEW)
| Weight | 50 g |
|---|---|
| Dimensions | 80 × 80 × 30 mm |
