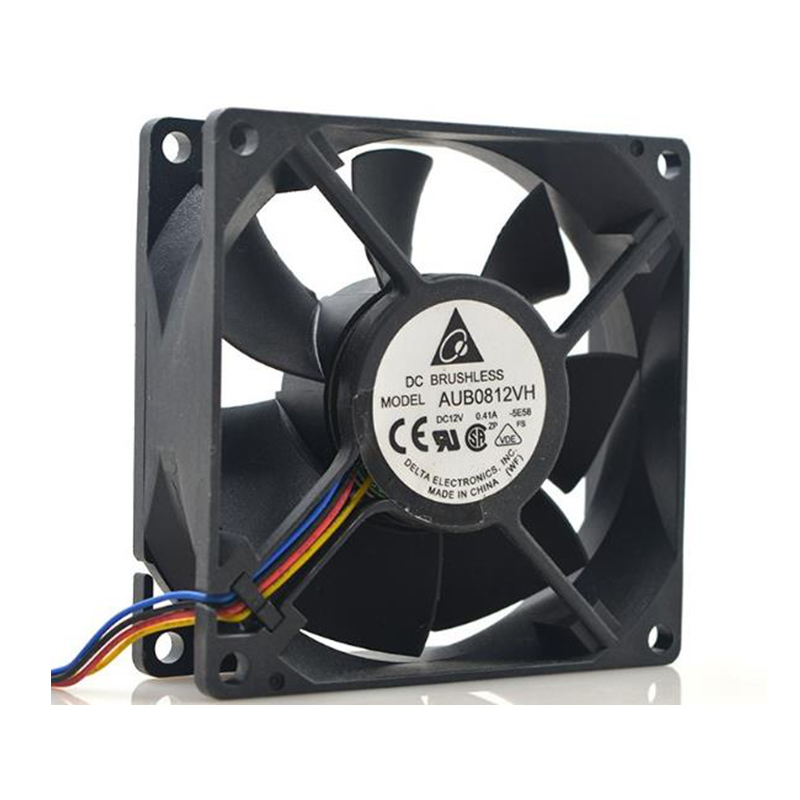

Delta AUB0812VH DC Brushless Fan 12V 0.41A 80x80x25mm (Used Like New)
AUB0812VH is a Reliable 12 VDC brushless cooling fan commonly used for airflow and heat dissipation in electronic and industrial equipment.
300.00 EGP
Buy NowDelta AUB0812VH DC Brushless Fan 12V 0.41A 80x80x25mm (Used Like New)
The Delta AUB0812VH is a high-performance DC brushless fan engineered to deliver steady and efficient airflow for thermal management in a range of systems. Its 80 × 80 × 25 mm form factor makes it a popular solution for cooling components in computer chassis, power supplies, audio/video equipment, industrial controllers, and more where consistent ventilation is needed to prevent overheating and ensure longevity.
Manufactured by Delta Electronics — a highly reputable brand in cooling technology — this fan offers robust build quality, quiet operation, and long service life. Its brushless motor design minimizes wear while maximizing reliability, making it suitable for continuous duty applications in demanding environments.
Features:
- Brushless DC motor for reliable continuous operation.
- Provides consistent airflow with low vibration.
- Standard 80 mm fan size for broad compatibility.
- Durable design with long life expectancy.
- Quiet and efficient performance.
Specifications:
| ITEM | DESCRIPTION |
|---|---|
| RATED VOLTAGE: | 12 VDC |
| OPERATION VOLTAGE: | 10.8 – 13.2 VDC |
| INPUT CURRENT: | 0.19 (MAX. 0.41) A |
| INPUT POWER: | 2.28 (MAX. 4.92) W |
| SPEED: | 3600±10% R.P.M |
| MAX. AIR FLOW: | 1.190 (MIN. 1.100) M³/MIN. |
| (AT ZERO STATIC PRESSURE): | 42.02 (MIN. 38.85) CFM |
| MAX. AIR PRESSURE: | 5.51 (MIN. 4.67) mmHg |
| (AT ZERO AIRFLOW): | 0.217 (MIN. 0.184) inch H₂O |
| ACOUSTICAL NOISE (AVG): | 39.0 (MAX. 43.0) dB-A |
| INSULATION TYPE: | UL: CLASS A |
| INSULATION STRENGTH: | 10 MEG OHM MIN. AT 500 VDC (BETWEEN FRAME AND (+) TERMINAL) |
| DIELECTRIC STRENGTH: | 5 mA MAX. AT 500 VAC 60 Hz ONE MINUTE, (BETWEEN FRAME AND (+) TERMINAL) |
| EXTERNAL COVER: | OPEN TYPE |
| LIFE EXPECTANCE: | 50,000 HOURS CONTINUOUS OPERATION AT 40 °C WITH 15 ~ 65 %RH. |
| ROTATION: | CLOCKWISE VIEW FROM NAME PLATE SIDE |
| LOCK ROTOR: PROTECTION: | THE CURRENT WILL SHUT DOWN WHEN LOCKING ROTOR |
| LEAD WIRE: | UL 1061 –F– AWG #26 BLACK WIRE NEGATIVE(–) YELLOW WIRE POSITIVE(+) GREEN WIRE: TACHOMETER OUTPUT (FOO) BLUE WIRE: SPEED CONTROL (PWM) |
Applications:
- Cooling electronic enclosures.
- Power supplies and inverters.
- Computer systems.
- Industrial automation equipment.
- Audio and AV devices.
Packages:
- 1x Delta AUB0812VH DC Brushless Fan 12V 0.41A 80x80x25mm (Used Like New).
Documents:
| Weight | 88 g |
|---|---|
| Dimensions | 80 × 80 × 25 mm |
