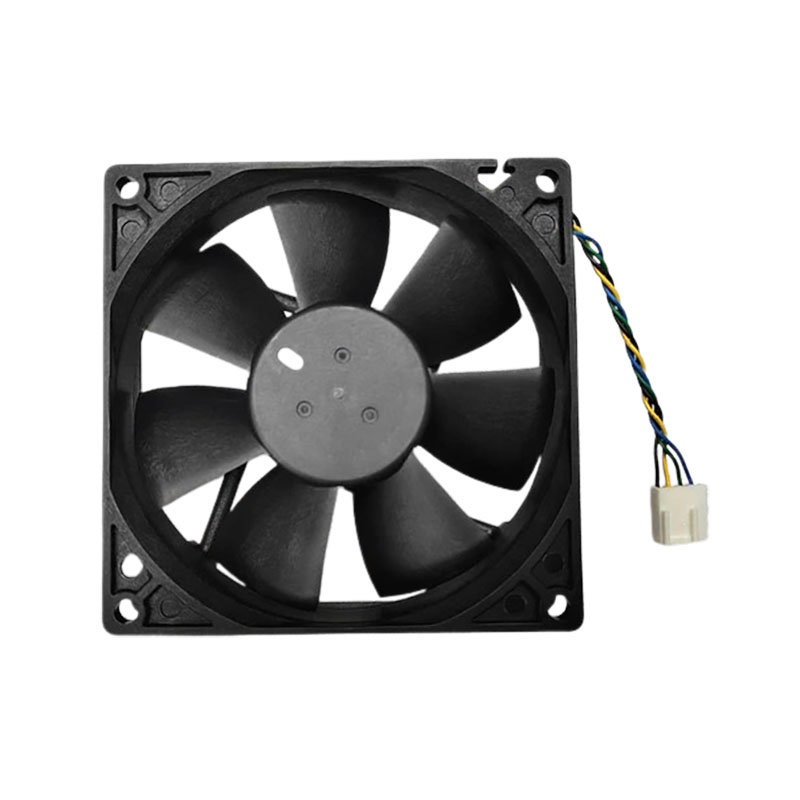

Delta Cooling Fan AUB0912VH 12VDC 0.6A 92mmx92mmx25mm (USED LIKE NEW)
The Delta AUB0912VH embodies the fusion of compact engineering and high-performance airflow within a modest 92 × 92 × 25 mm profile. Though petite in stature, this fan delivers an impressive push of air—making it a trusted component for serious cooling demands. Whether nestled inside dense rack servers or PCs, its precise form ensures efficient heat dissipation where real estate is at a premium.
Crafted from sturdy, precision-molded plastic, the AUB0912VH houses a Superflo bearing system built for durability. A tachometer and PWM control deliver intelligent speed management and real-time feedback, while built-in locked-rotor protection provides an added layer of operational safety. This design reflects a thoughtful blend of endurance and intelligent integration, designed for mission-critical environments.
Despite its compact frame, this fan sustains a remarkable airflow of over 67 CFM at peak speeds near 3800 RPM all while maintaining a manageable noise output (~45 dB(A)). It thrives across a broad temperature range, offering consistent performance that keeps modern electronics cool, stable, and reliable under continuous operation.
Features:
- Compact 92 × 92 × 25 mm form factor with high airflow.
- Superflo bearing for extended life and low friction.
- PWM speed control for dynamic response.
- Locked-rotor protection for improved safety and durability.
Specifications:
| Specification | Details |
|---|---|
| Size (W×H×D): | 92 × 92 × 25.4 mm |
| Voltage Rating: | 12 VDC (10.8–13.2 VDC operating range) |
| Current: | ~0.38 A typical, up to 0.60 A max |
| Power Consumption: | 4.56 W nominal (max ~7.2 W) |
| Airflow: | ~67.8 CFM (1.90 m³/min) |
| Static Pressure: | ~0.302 inches H₂O (75 Pa) |
| Speed (RPM): | ~3800 RPM at 100% duty |
| Noise Level: | ~45 dB(A) |
| Bearing Type: | Superflo bearing |
| Protection & Features: | PWM control, tachometer output, locked rotor protection |
| Operating Temperature: | –10 °C to 60 °C (14–140 °F) |
| Color: | Black |
Applications:
- High-density server and rack cooling.
- Workstation and GPU enclosure ventilation.
- Industrial equipment thermal management.
- Projector or AV system airflow.
Package Include:
- 1x Delta Cooling Fan AUB0912VH 12VDC 0.6A 92mmx92mmx25mm (USED LIKE NEW)
