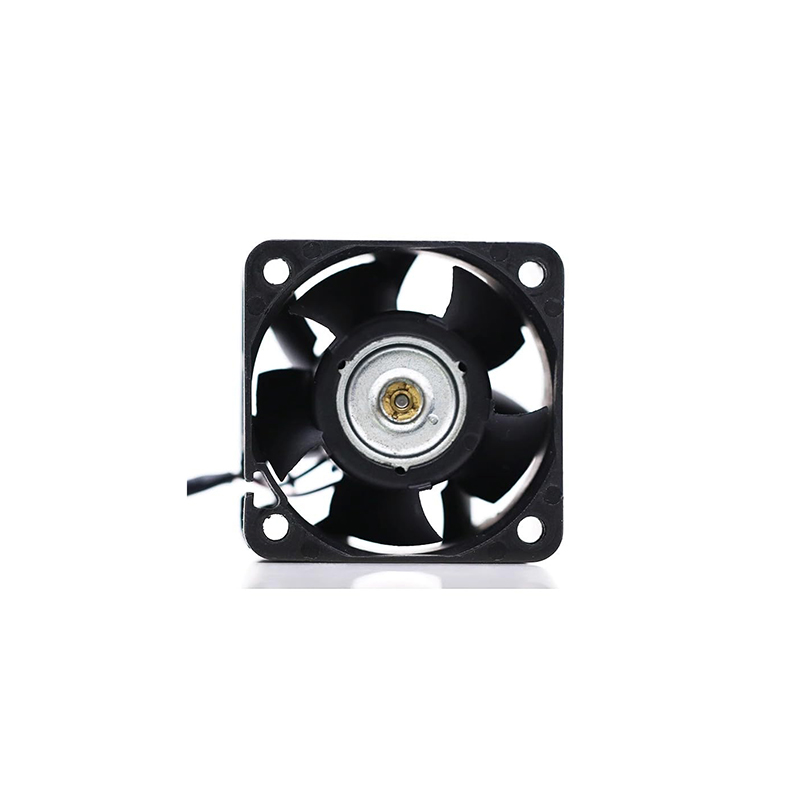

Delta DC Fan 12V 0.24A FFB0412VHN 40x40x28mm (USED LIKE NEW)
The Delta FFB0412VHN is a compact axial cooling fan engineered for reliable thermal management in tight spaces and high-density installations. With its modest current draw and efficient design, it delivers steady airflow while fitting into constrained enclosures or equipment racks. The fan is built for continuous duty, helping to maintain temperature balance and prevent hotspots in electronic assemblies.
Despite its small footprint, the FFB0412VHN is capable of generating meaningful airflow thanks to its optimized blade design and aerodynamic housing. It blends performance with stability — the impeller is balanced to reduce vibration, and the frame is tailored to suppress resonance under operation. Users benefit from quiet but effective cooling in sensitive systems, such as servers, controllers, or embedded electronics.
This fan is often selected where space, reliability, and performance must coexist. Its compatibility with standard 12 V DC systems makes integration straightforward. Whether used as a replacement in existing equipment or as part of a new cooling subsystem, it contributes to sustained thermal control and long product life by alleviating heat stress in critical components.
Features:
- Axial flow design with optimized blade geometry.
- Balanced impeller to minimize vibration and noise.
- Durable construction for long-term continuous operation.
- Compatible with standard 12 V DC systems.
- Compact size suitable for tight or high-density assemblies.
Specifications:
| Parameter | Value |
|---|---|
| Model / Part Number | FFB0412VHN |
| Type | Axial DC Fan |
| Rated Voltage | 12 VDC |
| Rated Current | 0.24 A |
| Power Consumption | ~1.92 W |
| Speed (RPM) | 9,500 RPM |
| Airflow | 15.79 CFM (0.447 m³/min) |
| Static Pressure | 0.509 inH₂O (≈12.94 mmH₂O) |
| Noise Level | ~ 45.0 dB(A) |
| Bearing Type | Ball bearing |
| Operating Voltage Range | 4.5 – 13.8 V DC |
| Operating Temperature Range | –10 °C to +70 °C |

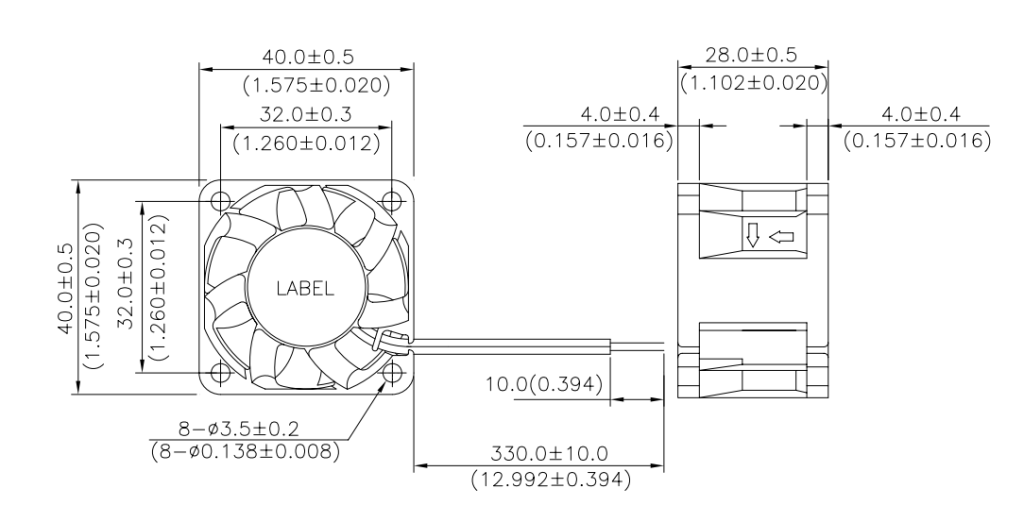

| Dimensions (L × W × H) | 40 mm × 40 mm × 28 mm |
| Weight | ~ 32 g |
Applications:
- Server Cooling.
- Network Equipment Ventilation.
- Industrial Control Cabinets.
- Embedded System Enclosures.
Package Contents:
- 1x Delta DC Fan FFB0412VHN 12V 0.24A 40x40x28mm (USED LIKE NEW)
