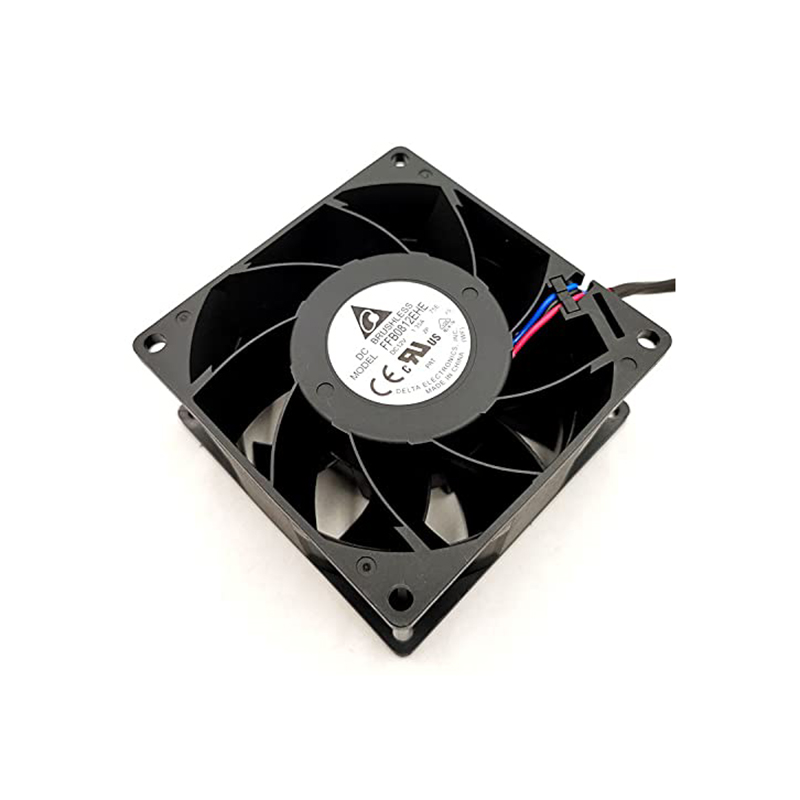

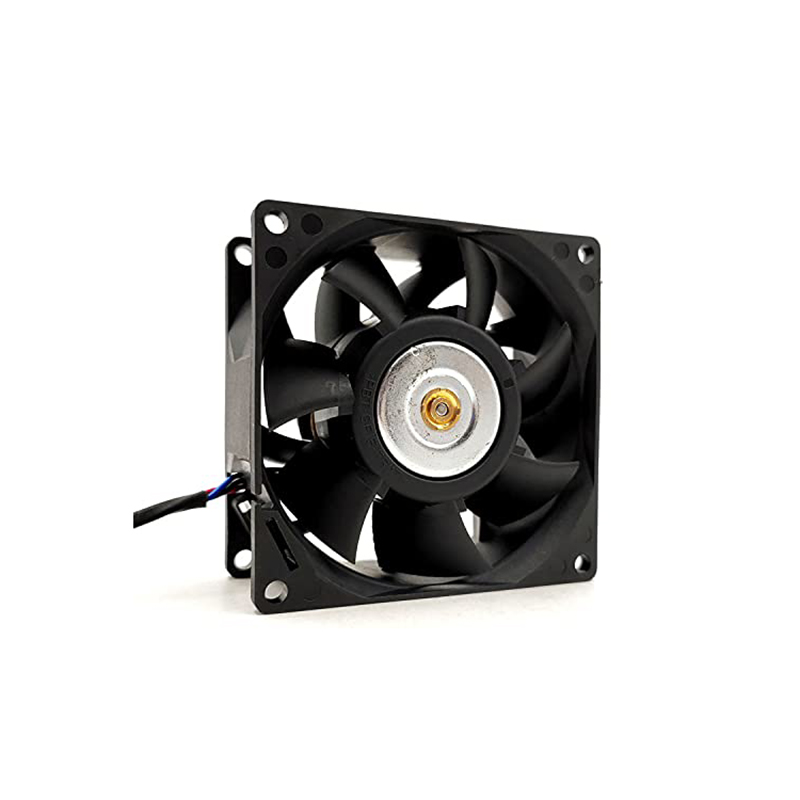

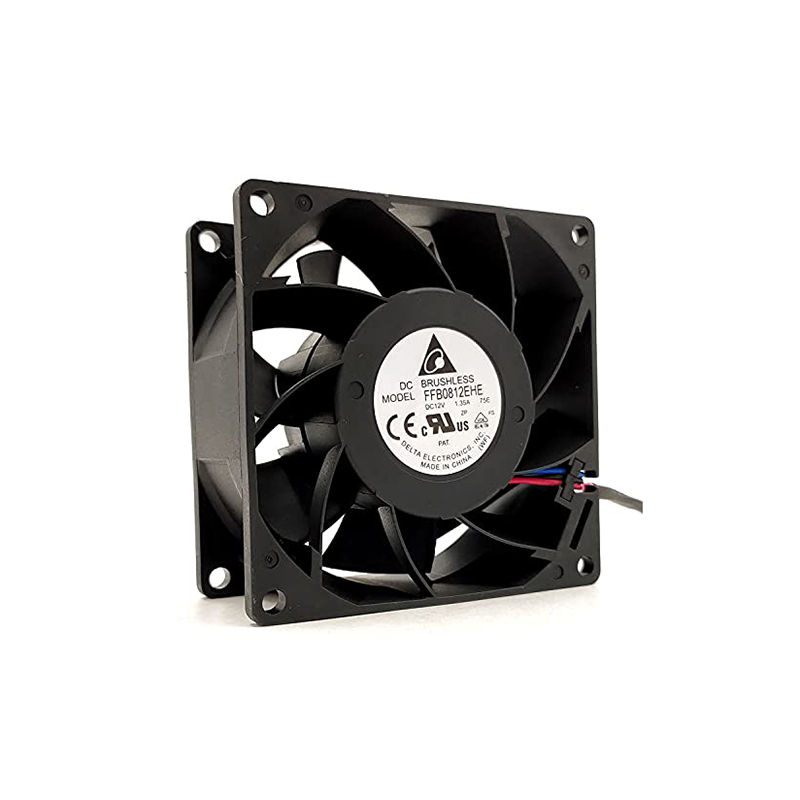

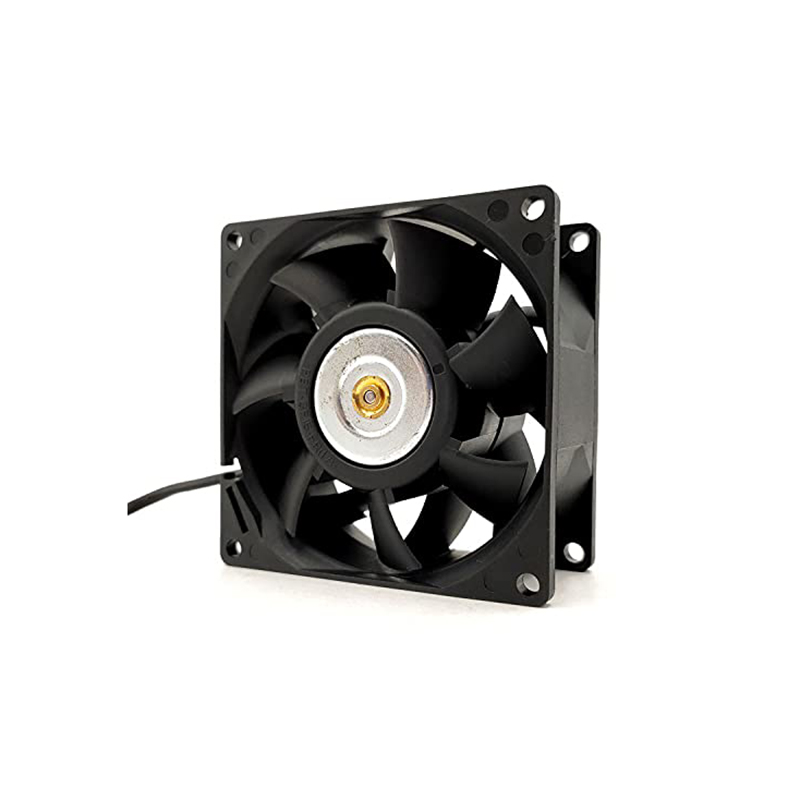

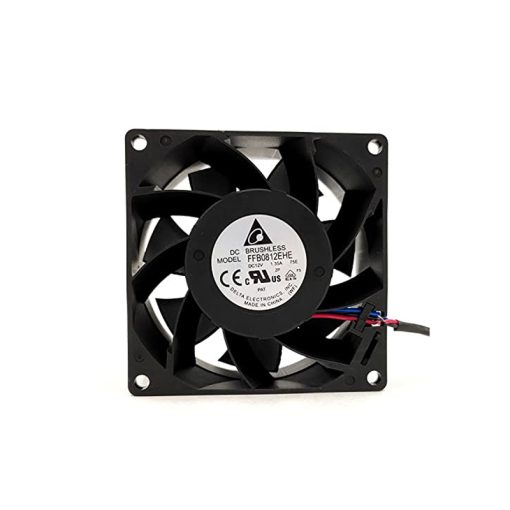

Delta FFB0812EHE Server Cooling Fan 12V 1.35A 80mmx80mmx38mm (USED LIKE NEW)
The Delta FFB0812EHE fan presents itself as a steady, nearly industrial presence in tight quarters. Its relatively deep 38 mm frame paired with the 80 mm square silhouette conveys rugged intent designed with performance in mind rather than subtlety. Its sturdy appearance suggests a workhorse rather than a mere accessory, built to endure where demands are constant and unforgiving.
Once powered, the fan initiates movement with assertive determination, its blades slicing through air with unwavering consistency. The auditory hum noticeable but not overwhelming marshals confidence, hinting at its capacity to sustain high airflow under strain. You sense its mechanical efficiency; it doesn’t whisper, nor does it shout. It simply commits to its task with steadfast resolve.
In a server rack, industrial enclosure, or any high-heat environment, this fan feels integral not optional. Its presence is functional and foundational, offering a constant stream of directed airflow that promises system resilience. It doesn’t demand attention but commands respect an unassuming sentinel whose reliability is its true signal.
Features:
- Double Ball Bearing System: Enhances longevity and reliability by reducing friction and wear during operation.
- High Airflow Capacity: Delivers effective cooling with an airflow of 102 CFM for optimal thermal management in demanding environments.
- PWM Speed Control Support: Allows dynamic adjustment of fan speed based on cooling needs, improving efficiency.
- Robust Construction: Built with quality materials to ensure durability and stability in various operating conditions.
- 4-Pin Connector: Facilitates easy installation and integration into server and computing systems.
- High-Speed Operation: Designed to run at 5700 RPM for maximum cooling performance .
- Maintenance-Free Design: The double ball bearing system requires minimal upkeep over its long service life.
Specifications:
| Specification | Details |
|---|---|
| Voltage (Rated): | 12 VDC |
| Operating Voltage Range: | 7 V – 13.8 V |
| Current (Typical / Max): | 0.90 A typical; up to 1.35 A |
| Power: | ~10.8 W |
| Speed (RPM): | 5,700 RPM |
| Airflow: | ~80.2 CFM (2.25 m³/min) |
| Static Pressure: | 0.812 in H₂O (~202 Pa) |
| Noise Level: | ~52.5 dB(A) |

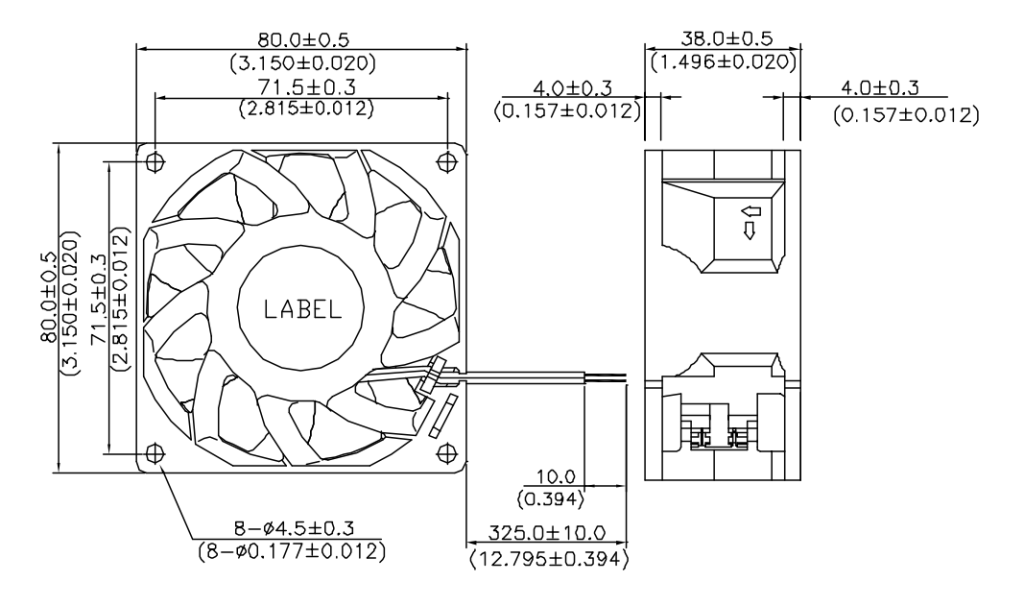

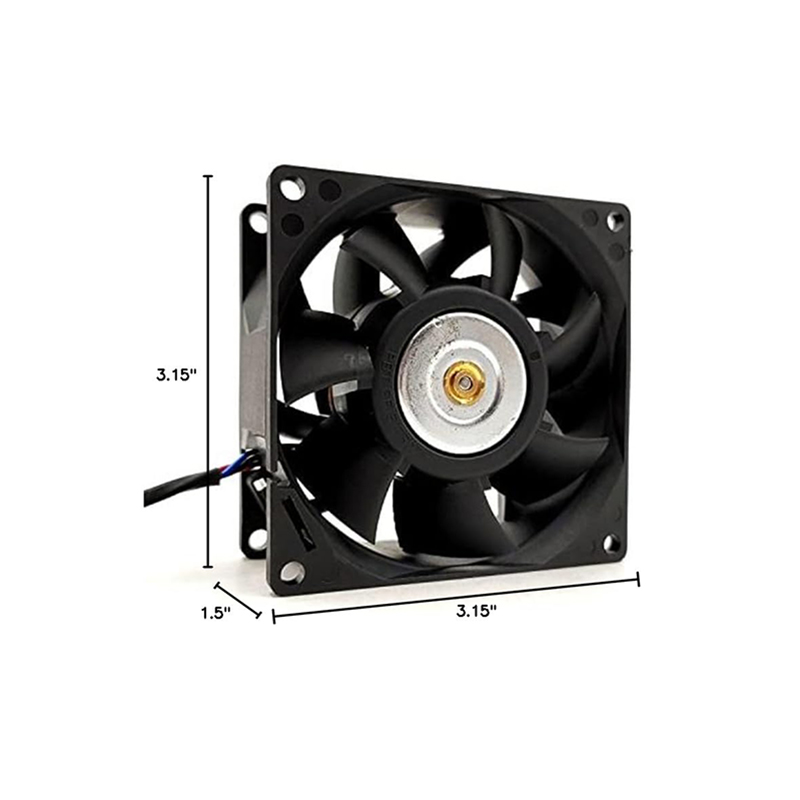

| Dimensions: | 80 × 80 × 38 mm (92 × 92 × 38 mm profile) |
| Bearing Type: | Ball Bearing |
| Termination: | 3-wire (3-Pin Connector) |
| Special Feature: | Locked rotor protection, speed sensor (tach) |
| Color: | Black |
Applications:
- Server Cooling Systems.
- Power Supply Units.
- Data Center Infrastructure.
- Industrial Equipment Cooling.
- Telecommunication Racks.
- High-Performance Computing.
- IBM Server Systems.
Package Include:
- 1x Delta FFB0812EHE Server Cooling Fan 12V 1.35A 80mmx80mmx38mm (USED LIKE NEW)
