Delta Server Fan GFB0412EHS 6 Pin 12VDC 1.82A 40x40x56mm (USED LIKE NEW)
The Delta GFB0412EHS server fan module is a compact powerhouse, designed in a dual-axial 40 mm × 40 mm × 56 mm format yet delivering substantial cooling capability. Despite its small size, it houses two high-speed hollow-shaft fans that focus targeted airflow for efficient heat dissipation. Its rugged plastic housing and precise rotor construction ensure reliable operation in densely packed server environments where both space and performance are critical.
Crafted for demanding applications, the GFB0412EHS strikes a balance between size and longevity. It features ball bearings and locked-rotor protection, adding durability to its design. Built with high-precision double-ball bearings, it withstands continuous operation in tight thermal zones. Even under continuous high-load conditions, the fan maintains resilience enabling servers to stay online without overheating threats.
Beyond airflow performance, this fan integrates seamlessly into server control ecosystems. Each axial unit includes a tachometer sensor to relay real-time speed feedback for monitoring systems. Its 6-pin power connector simplifies installation and replacement in blade chassis. Combined, the GFB0412EHS offers a streamlined solution for efficient thermal regulation and smart performance they expect in modern servers.
Features:
- Dual-axial fan configuration in compact 40 × 40 × 56 mm housing.
- Ball bearing design for greater durability.
- Locked-rotor protection to guard against duty-cycle failure.
- Built-in tachometer (speed sensor) for real-time RPM feedback.
- Lightweight and compact form factor suited for dense server racks.
Specifications:
| Specification | Details |
|---|---|
| Size (L×W×H): | 40 × 40 × 56 mm |
| Rated Voltage: | 12 VDC (operating 10.8–12.6 VDC) |
| Current: | 1.25 A nominal; up to 1.82 A max |
| Power: | 15.6 W |
| RPM (Front/Rear): | ~16,000 RPM front; ~15,400 RPM rear |
| Airflow: | ~27.3 CFM (0.764 m³/min) |
| Static Pressure: | ~1.63 in H₂O (406 Pa) |
| Noise Level: | ~59.5 dB(A) |
| Bearing Type: | Ball bearing |

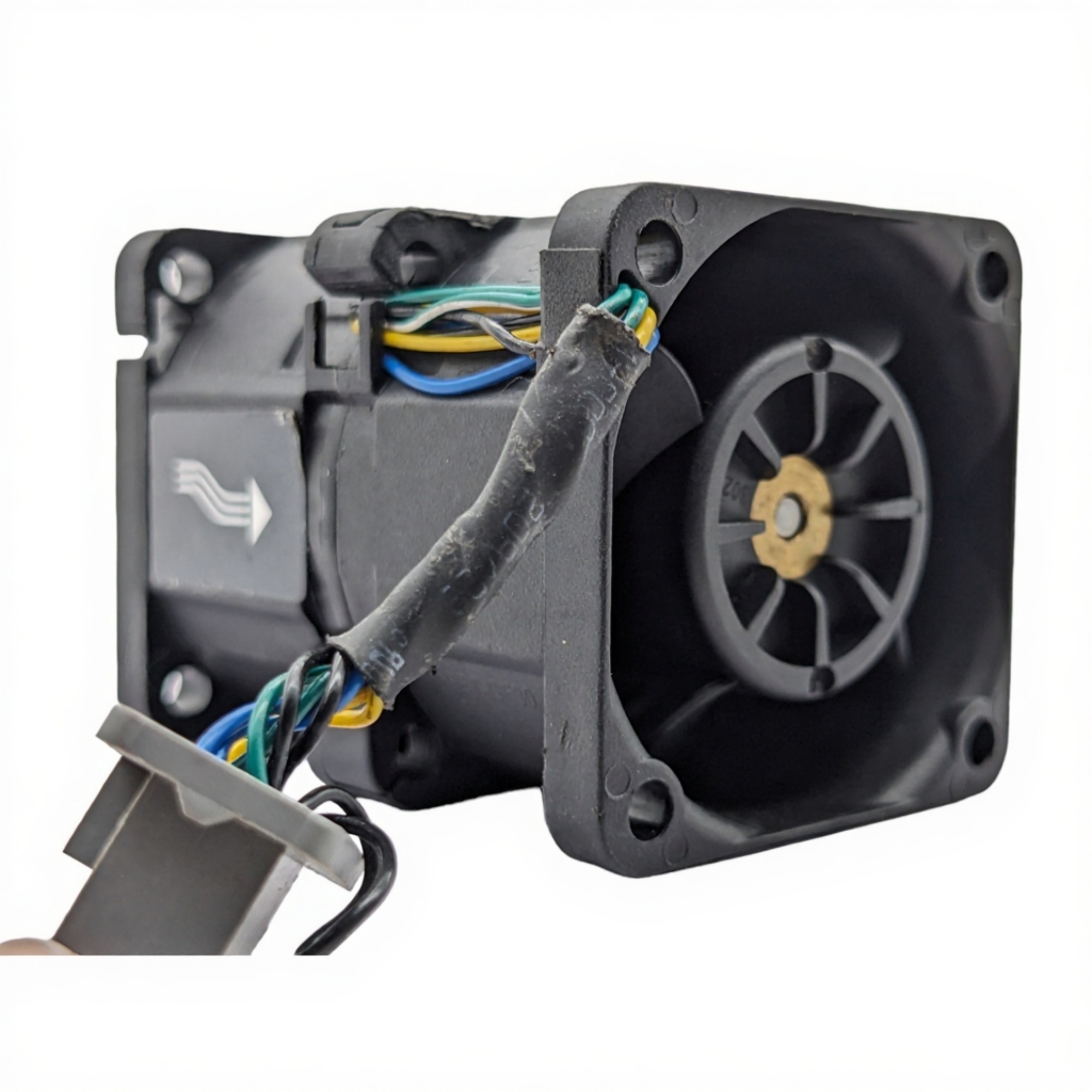

| Connectors: | 6-pin (via 2 × 3-wire leads) |
| Protection Features: | Locked rotor protection; tachometer sensor |
Applications:
- Server chassis thermal cooling.
- Blade server cooling modules.
- Dense equipment rack ventilation.
- High-speed computing cooling solution.
Package Include:
- 1x Delta Server Fan GFB0412EHS 6 Pin 12VDC 1.82A 40x40x56mm (USED LIKE NEW)
