CMOS Analog Multiplexers

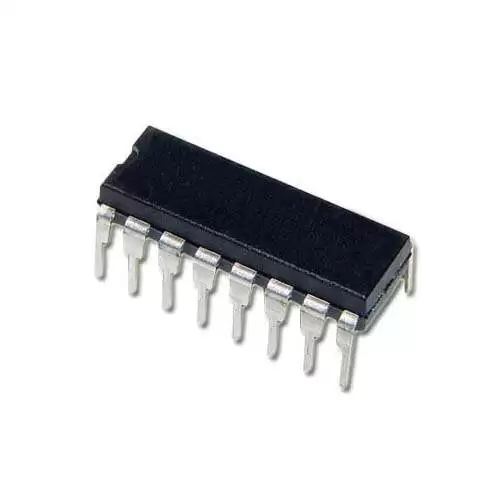

The DG508A is a CMOS Monolithic 8-Channel Analog Multiplexer, which can also be used as a demultiplexer. An enable input is provided. When the enable input is high, a channel is selected by the address inputs, and when low, all channels are off.
A channel in the ON state conducts current equally well in both directions. In the OFF state each channel blocks voltages up to the supply rails. The address inputs and the enable input are TTL and CMOS compatible over the full specified operating temperature range.
The DG508A is pinout compatible with the industry standard devices.
Features
- Low Power Consumption
- TTL and CMOS-Compatible Address and Enable Inputs
- 44V Maximum Power Supply Rating
- High Latch-Up Immunity
- Break-Before-Make Switching
- Alternate Source
- Pb-free Available
Specifications
| Product Attribute | Attribute Value |
| Mounting Style: | Through Hole |
| Package/Case: | PDIP |
| Number of Channels: | 1 Channel |
| Supply Voltage – Min: | – |
| Supply Voltage – Max: | – |
| Minimum Dual Supply Voltage: | +/- 15 V |
| Maximum Dual Supply Voltage: | +/- 15 V |
| On Resistance – Max: | 450 Ohms |
| On Time – Max: | 1 us |
| Off Time – Max: | 400 ns |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Operating Supply Voltage: | 18 V |
| Product Type: | Multiplexer Switch ICs |
| Propagation Delay Time: | 600 ns |
| Subcategory: | Switch ICs |
| Supply Current – Max: | 2.4 mA |
| Supply Type: | Single Supply, Dual Supply |
Applications
- Data Acquisition Systems
- Communication Systems
- Signal Multiplexing/Demultiplexing
- Audio Signal Multiplexing
