Product Description
|
Product Name:
|

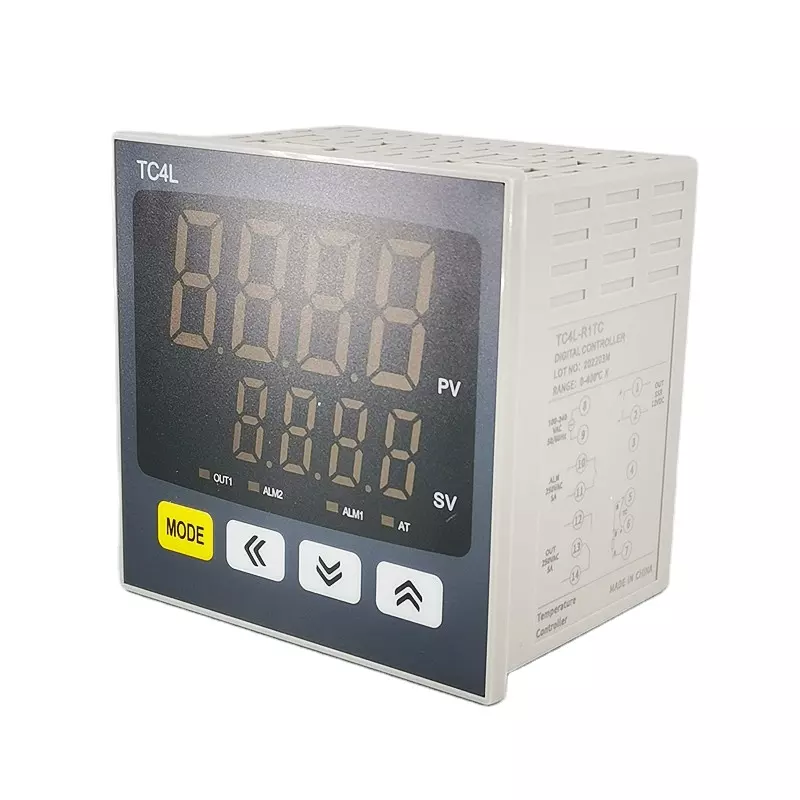

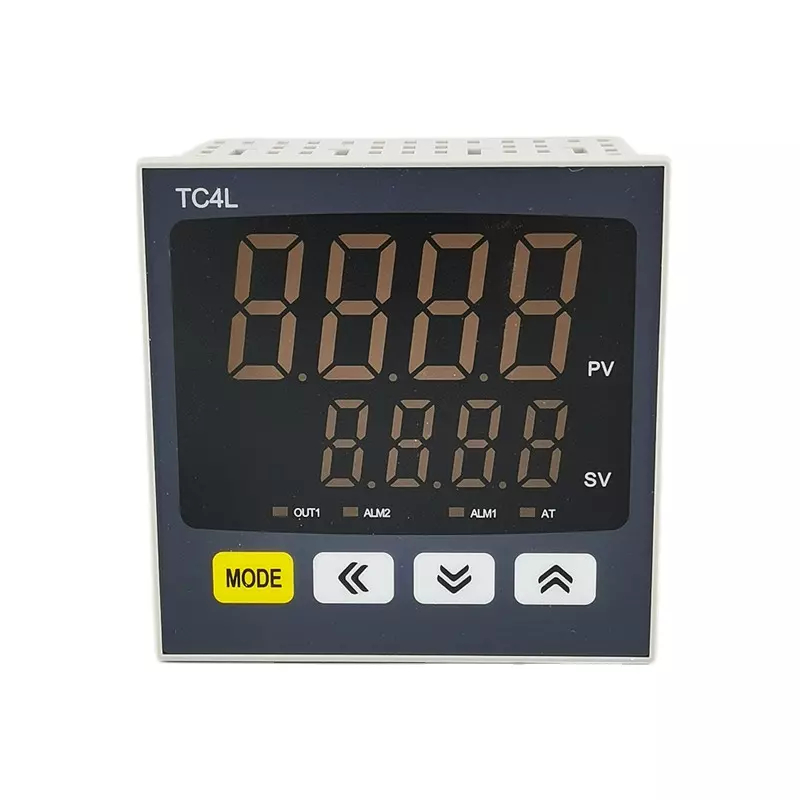

Digital Temperature Controller
|
|
Model Number:
|
TC4L
|
|
Control Mode:
|
continuous PID or position control
|
|
Supply Voltage:
|
100-240VAC,50/60Hz
|
|
Power Consumption:
|
<10VA
|
|
Accuracy:
|
±0.5% FS / ±1.0% FS
|
|
Alarm Range:
|
Free setting of full scale
|
|
Input:
|
Thermocouple: K,E,J,S,R,B,N,T RTD: Pt100,Cu50
|
|
Output:
|
dual output: relay / SSR
|
|
Size:
|
overall dimension 95x95x75mm, mounting hole 90x90mm
|
|
Operating Ambience:
|
Temperature 0~50℃, Humidity 30~85%RH
|
Specification
|
Model:
|

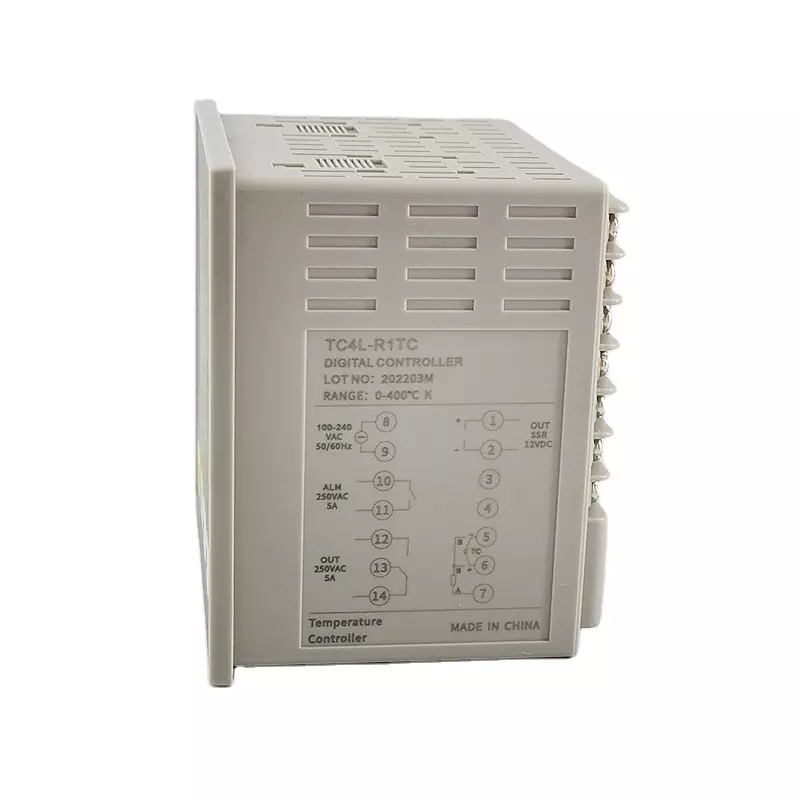

eg. TC4 L – R 1 TC
|
|
Dimensions:
|
L: 95x95x75mm
|
|
Output:
|
R: relay contact output Q: SSR output
8: DC4-20mA
|
|
Alarm:
|
1: Alarm 1 output, 2: Alarm 2 output
|
|
Input:
|
TC: thermocouple
Rt: thermal resistance
|
