Dip Switch 4 Way

Dip Switch 4 Way

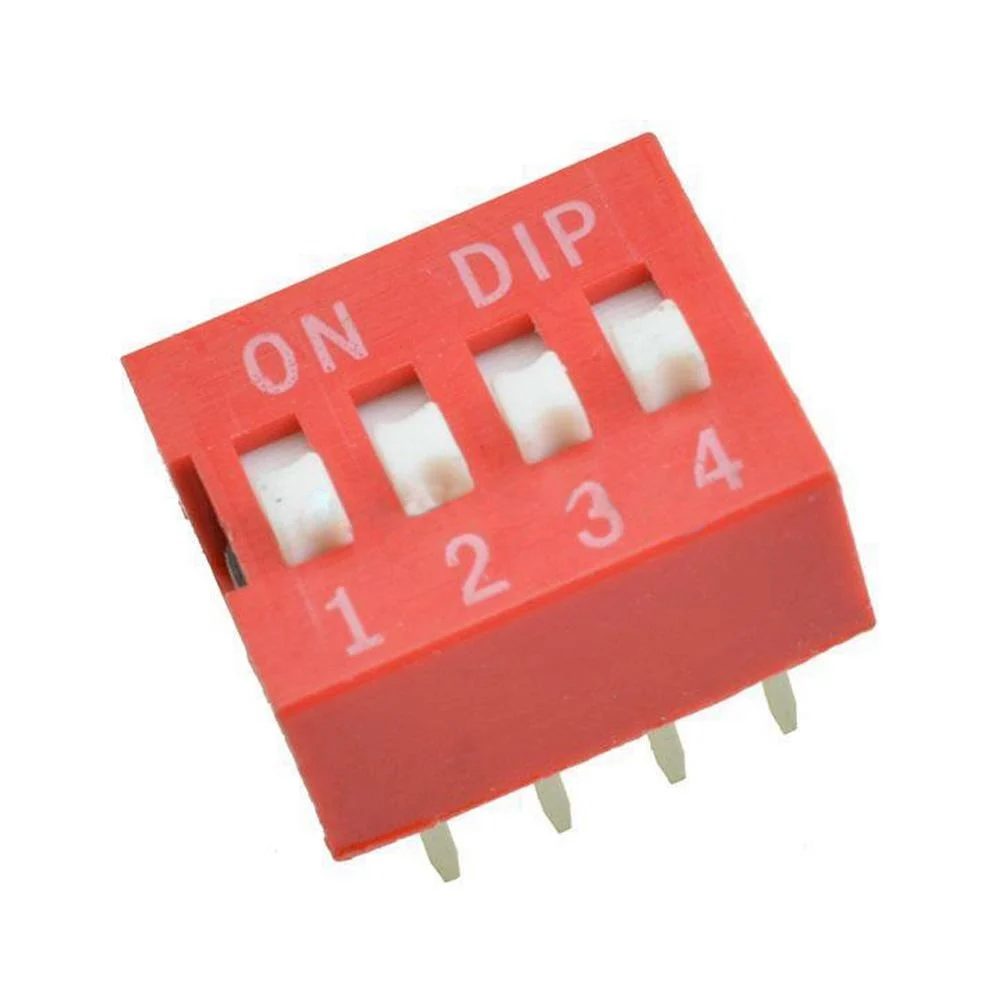

The Dip Switch 4 Way is a compact, slide-type SPST (Single Pole Single Throw) switch designed for manual configuration of electronic circuits. Featuring four individual switches within a standard 8-pin dual in-line package (DIP), it allows for straightforward on/off control of circuit functions. Its 2.54mm pin spacing ensures compatibility with standard PCBs and breadboards, making it ideal for prototyping, configuration settings, and device addressing. The switch’s reliable mechanical design and tactile feedback provide dependable operation in various electronic applications.

Features

• 4-position SPST slide switch.
• Standard 2.54mm pin spacing for easy PCB mounting.
• Compact 8-pin DIP package.
• Tactile feedback for reliable operation.
• Suitable for manual configuration of electronic circuits.

Specifications

PINOUT

Applications

• Setting configurations on PCBs.
• Address selection in communication devices.
• Mode selection in embedded systems.
• User-defined settings in consumer electronics.
• Prototyping and development projects.

Package Contents

• 1x Dip Switch 4 Way.

Documents

• Dip Switch Tutorial
