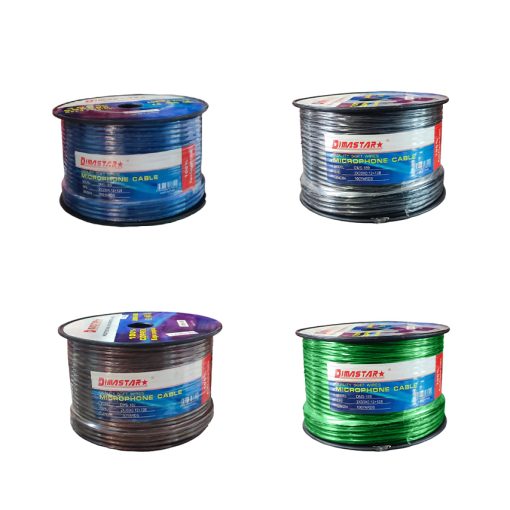

DMS-189 Microphone Cable 2X(30×0.12mm) 1meter

DMS-189 Microphone Cable 2X(30×0.12mm) 1meter

The DMS-189 Microphone Cable 2X(30×0.12mm) 1meter is a high-performance audio cable designed for professional and studio-grade microphone connections. It features two conductors, each made of 30 strands of 0.12mm tinned copper wire, offering excellent flexibility and signal conductivity. Surrounding the cores is a dense shielding layer composed of 128 strands of 0.1mm tinned copper, which provides superior protection against electromagnetic interference and ensures clean, noise-free audio transmission. The outer jacket is made from durable, flexible PVC, making it ideal for both stationary and mobile audio setups. Suitable for use in live sound, broadcasting, and studio environments, this cable delivers reliable and clear audio performance.

Features:

• High Conductivity Dual conductors made of 30 strands of 0.12mm copper wire for efficient signal transmission.
• Superior Shielding 128 strands of braided shielding minimize noise and interference.
• Durable Construction Built to withstand regular bending and handling in professional environments.
• Flexible Design Soft outer jacket ensures ease of routing and installation.
• Low Signal Loss Maintains signal integrity over longer distances.
• Standard 1-meter length Convenient for short runs, patching, or close-proximity equipment setups.
• Enhanced Audio Clarity Reduces hum, buzz, and static for cleaner sound output.
• Versatile Use Suitable for microphones, audio mixers, amplifiers, and other sound equipment.

• Model: DMS-189
• Cable Type: Shielded Microphone Cable
• Conductor Configuration: 2 conductors × 30 strands × 0.12 mm copper
• Shielding: 128 strands braided copper shield
• Length: 1meter
• Conductor Material: High-purity copper
• Insulation Material: PVC
• Outer Jacket: Flexible PVC
• Outer diameter: 6.0mm–6.5 mm
• Capacitance (cond./cond.): Estimated at 58 pF/m, based on comparable products
• Capacitance (cond./shield): Estimated at 115 pF/m, based on comparable products
• Conductor resistance: Estimated at 55 Ω/km, based on comparable products
• Shield resistance: Estimated at 25 Ω/km, based on comparable products
• Operating Temperature: -20°C to +70°C
• Color Availability: Blue / Green / Brown / Black

Applications:

• Microphone Connections.
• Audio Equipment Wiring.
• Recording Studios.
• Live Sound Systems.
• Broadcasting Installations.
• Theater and Performance Venues.
• Custom Audio Projects.

Package Contents:

• 1 X DMS-189 Microphone Cable 2X(30×0.12mm) 1meter
