Dry Electrode Myoelectric Muscle Sensor Module
This Dry Electrode Myoelectric Muscle Sensor Module is a compact, ready-to-use electromyography (EMG) sensor designed for non-invasive muscle activity detection. Featuring a built-in amplifier and filter circuit, it captures the muscle’s electrical signals (up to ±1.5mV), suppresses noise, and provides a clean analog voltage output (0–3V), ideal for microcontroller-based projects.
Features
- Utilizes a dry electrode design—no need for conductive gels—ensuring ease of use and long service life.
- Built-in differential amplifier and analog filter enhance sensitivity and remove interference.
- Detects faint EMG signals (±1.5mV) and outputs analog voltage relative to muscle activity (0–3V).
- Operates on a single supply voltage (3.3V to 5.5V), facilitating compatibility with most microcontrollers.
- Low power consumption and compact size enable seamless wearable integration and mobile use.
- Equipped with standard connectors and straightforward analog output for easy interfacing with ADC inputs.
PINOUT
Note: actual color of PCB is green. All other details are the same as shown.
Specifications
| Parameter | Value |
|---|---|
| Power Supply Voltage | 3.3V – 5.5V |
| EMG Detection Range | ±1.5mV |
| Output Voltage | 0 – 3.0V analog proportional to muscle activation |
| Electrode Type | Dry metal electrodes, long lifespan |
| Signal Processing | Differential input with analog filtering |
| Interface Type | Standard analog output via pin header |
| Operating Temperature | 0°C – 50°C |
| Board Size | 25mm × 49mm |
Applications
- DIY wearable devices for gesture control, prosthetics, or robotics.
- Biofeedback tools for muscle activity, fatigue, or rehabilitation monitoring.
- Educational setups teaching analog signal processing and human physiology.
- Interactive art or gaming interfaces driven by muscle contractions.

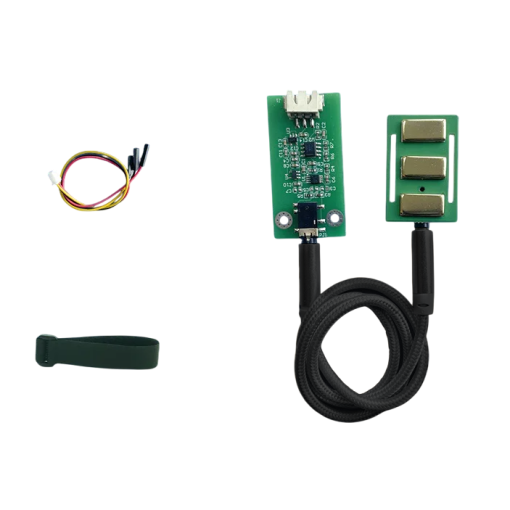

Package Contents
- 1x Myoelectric Muscle Sensor Module.
- 1x Board with dry electrodes.
- 1x 50cm Electrode cable.
- 1x 3-pins connection wires with female headers.
- 1x Wrist belt compatible with the electrodes board.
Note: some content may differ in color from pictures.
